Leviton BR20-W

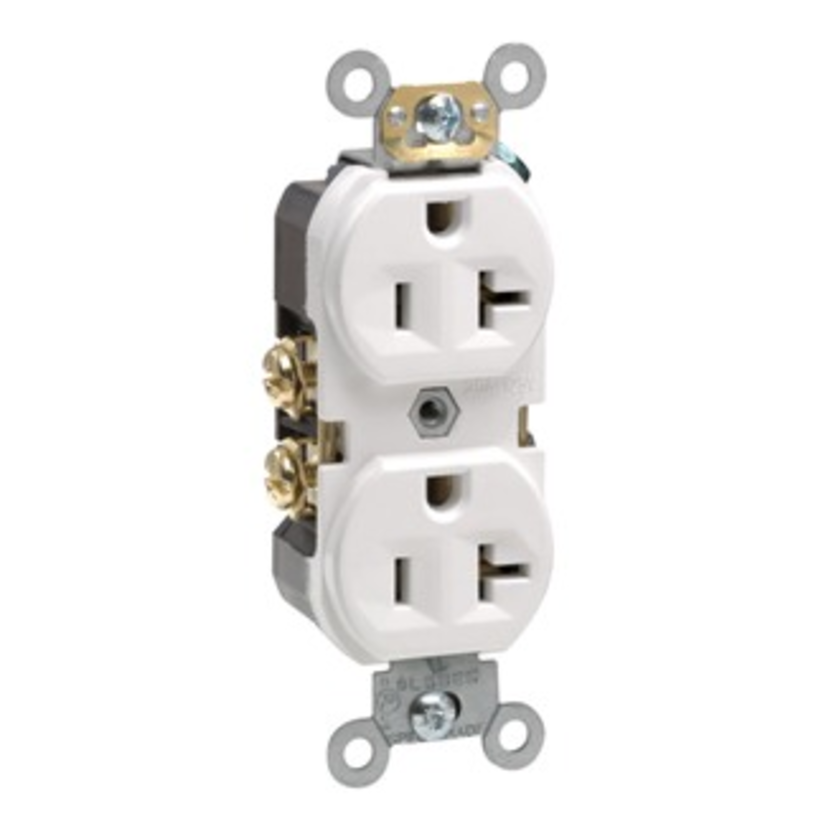

Leviton BR20-W 1-Phase Duplex Heavy Duty Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, White
Leviton BR20-W
Leviton BR20-W 1-Phase Duplex Heavy Duty Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, WhiteIn Stock: 21more info
|
BrandLeviton
MFG #BR20-W
Werner Part #46410
UPC078477819814
In Stock: 21more info
|
BrandLeviton
MFG #BR20-W
Werner Part #46410
UPC078477819814
Product Description
Leviton, BR20-W, Straight Blade Receptacle, 1-Phase Duplex Heavy Duty, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, White, 46 in H x 1.56 in W x 19 in D Dimensions
Attributes
Documents
Applications
Features
Warranty
Attributes
ColorWhite
Country of OriginUS
Dimensions46 in H x 1.56 in W x 19 in D
GradeCommercial
Horsepower1 hp
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA 5-20R
Number of Poles2
Number of Wires3
Package Height9.25 in
Package Length12.44 in
Package TypeEACH
Package Weight21 lbs
Package Width8.31 in
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
Type1-Phase Duplex Heavy Duty
Voltage Rating125 V AC
Documents
Applications
Hotels, Schools, Hospitals and Commercial Office Buildings
Features
- Withstands 2000 VAC per UL 498 dielectric voltage
- Full rated current limiting
- Max 30 deg C after 100 cycles overload at 150% rated current temperature rise
- Rated V-2 per UL 94 flammability
- Nylon body/face material, brass terminal/grounding screws/ground clips, zinc plated steel strap material/clamp nuts
- Brass hot, green ground, white neutral terminal ID
- 14 to 10 AWG terminal accommodation
- Self-grounding
- 2000 VAC minimum dielectric strength
- Narrow body
Warranty
10 years Limited
