Leviton IPS15-1LZ

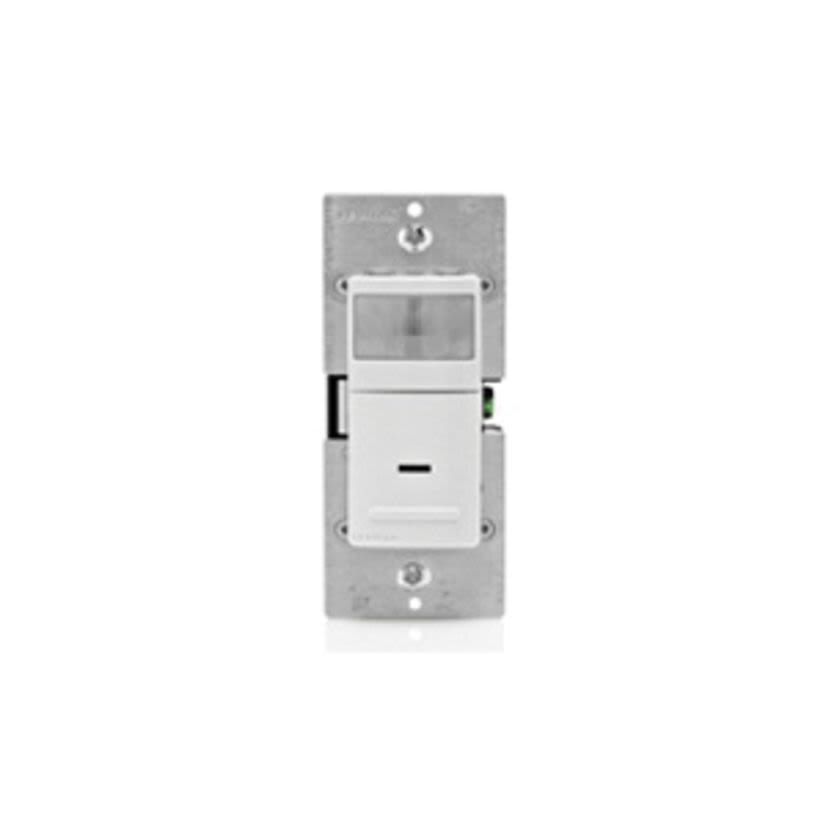

Leviton IPS15-1LZ 1-Pole 3-Way Relay Occupancy Sensor, 120 V AC, PIR Sensor, 900 sq-ft Coverage, 180 deg Viewing, Wall Mounting
Leviton IPS15-1LZ
Leviton IPS15-1LZ 1-Pole 3-Way Relay Occupancy Sensor, 120 V AC, PIR Sensor, 900 sq-ft Coverage, 180 deg Viewing, Wall MountingNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #IPS15-1LZ
Werner Part #3962217
UPC078477570456
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #IPS15-1LZ
Werner Part #3962217
UPC078477570456
Product Description
Leviton, IPS15-1LZ, Relay Occupancy Sensor, 1-Pole 3-Way, 120 V AC, 1800 W Power, PIR Sensor, 900 sq-ft Coverage, 180 deg Viewing, 30 s to 30 min Time Delay, CFL/Halogen/Incandescent/LED Lamp, 60 Hz Response, Screw Connection, Automatic On/Automatic Off Control Output, Wall Mounting, 0 to 40 deg C, Ivory/Light Almond/White, 4.13 in H x 1.75 in W x 1.22 in D Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
ColorIvory/Light Almond/White
Connection TypeScrew
Control OutputAutomatic On/Automatic Off
Country of OriginCN
Coverage900 sq-ft
Dimensions4.13 in H x 1.75 in W x 1.22 in D
Lamp TypeCFL/Halogen/Incandescent/LED
ManufacturerLeviton
Mounting TypeWall
Package Height2.38 in
Package Length5 in
Package TypeEACH
Package Volume17.28 cu-in
Package Weight0.42 lb
Package Width2.81 in
Power Rating1800 W
Response Frequency60 Hz
Sensor TypePIR
Temperature Rating0 to 40 deg C
Time Delay30 s to 30 min
Type1-Pole 3-Way
Type / Style1-Pole 3-Way
Viewing Angle180 deg
Voltage Rating120 V AC
Documents
Applications
Bathrooms, Garages, Hallways, Basements, Utility, Laundry Rooms, Living, Family Rooms, Bedrooms, Dining Rooms, Kitchen and Commercial Applications
Included
Color Change Kit
Warranty
5 Years Limited
Features
- Universal light control switches incandescent, CFL, LED and fluorescent ballasts using relay technology
- Automatic ON/automatic OFF operation for seamless energy management
- Low profile design eliminates obtrusive scanning-device look
- Convenient pushbutton provides manual OFF light switching at any time
- Segmented fresnel lens provides optimum sensitivity and performance designed with an extensive minor motion area where even slight body movements will be detected
- Compatible with both electronic and magnetic ballasts or 1/2 hp loads
- Relay switches at the zero crossing point of the AC power curve to ensure maximum contact life and compatibility with electronic ballasts
- Fits in standard wallbox, 1-pole or multi-location with IPV0R
- Neutral wire required
- Can be used to comply with 2016 California title 24, part 6 vacancy control device requirements
- Elegant styling compliments any interior and coordinates with Leviton popular line of Decora wiring devices
- 1-pole or 3-way when used with IPV0R sensor remote or with VP0SR Vizia+ switch remote
- For use with LED, CFL, incandescent, fluorescent ballast or motor loads
- Ideal for higher power lighting and motor loads
- Neutral required for installations
