Leviton GFNT2-HGR

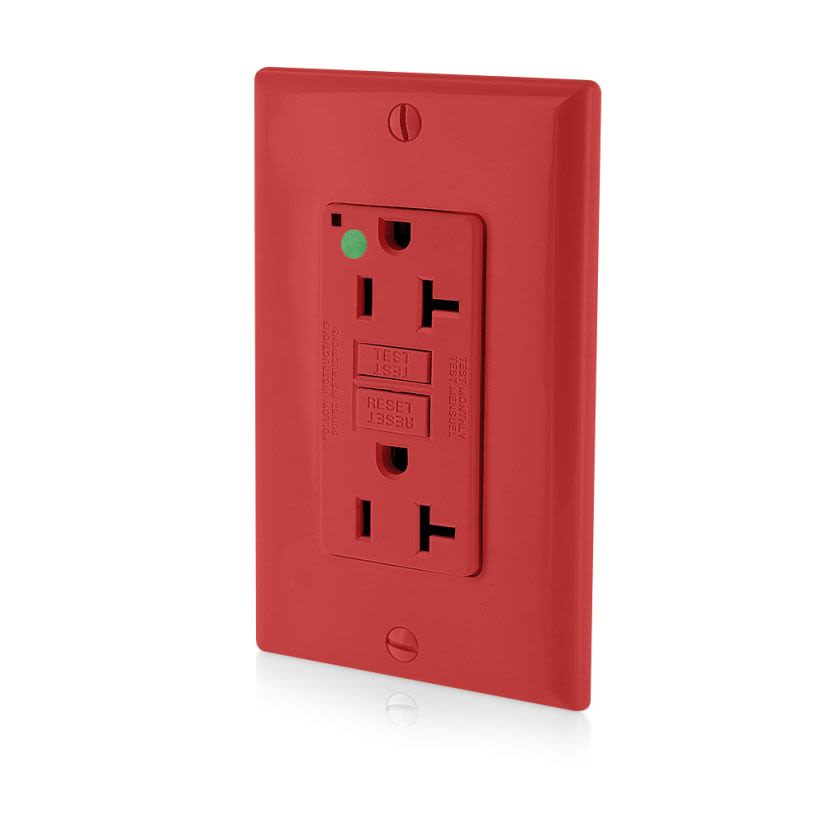

Leviton SmartlockPro Slim GFNT2-HGR Duplex Feed Through Non-Tamper Resistant Self-Test GFCI Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Red
Leviton GFNT2-HGR
Leviton SmartlockPro Slim GFNT2-HGR Duplex Feed Through Non-Tamper Resistant Self-Test GFCI Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, RedOut of Stockmore info
|
BrandLeviton
MFG #GFNT2-HGR
Werner Part #4079726
UPC078477725115
Out of Stockmore info
|
BrandLeviton
MFG #GFNT2-HGR
Werner Part #4079726
UPC078477725115
Product Description
Leviton SmartlockPro Slim GFCI Receptacle, Duplex Feed Through Non-Tamper Resistant Self-Test, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Extra Heavy Duty/Hospital Grade, -35 to 66 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate/Polycarbonate, Red, 4.05 in H x 1.74 in W x 1.36 in D Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Specifications
Attributes
ColorRed
Country of OriginCN
Dimensions4.05 in H x 1.74 in W x 1.36 in D
Frequency Rating60 Hz
GradeExtra Heavy Duty/Hospital
Horsepower1 hp
ManufacturerLeviton
MaterialPolybutylene Terephthalate/Polycarbonate
NEMA RatingNEMA 5-20R
Number of Poles2
Number of Wires3
Package Height5.25 in
Package Length9.25 in
Package TypeEACH
Package Weight4.25 lbs
Package Width6.25 in
Temperature Rating-35 to 66 deg C
Terminal TypeBack/Side Wire
TypeDuplex Feed Through Non-Tamper Resistant Self-Test
Type / StyleDuplex Feed Through Non-Tamper Resistant Self-Test
Voltage Rating125 V AC
Documents
Applications
Extra-Heavy Duty Hospital Grade
Included
Matching Wallplate
Warranty
2-Year Limited
Features
- Patented bridge contact design provides individual sets of contacts for GFCI receptacle face and downstream receptacles, no power will be delivered to receptacle face if improperly wired (line load reversed)
- Improved immunity to high frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over voltages
- Low profile design is easy to install in all electrical boxes
- Patented SmartlockPro protection prevents resetting when ground fault protection has been lost
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|CSA Certified|NOM-ANCE
