Leviton BR15-W

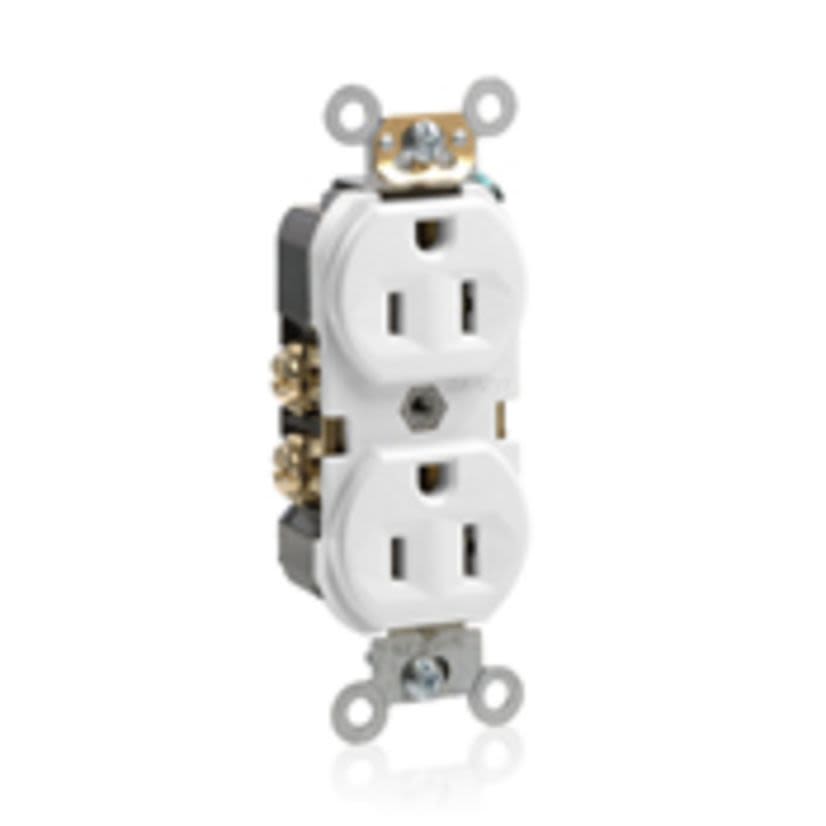

Leviton BR15-W 1-Phase Heavy Duty Narrow Body Duplex Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, White
Leviton BR15-W
Leviton BR15-W 1-Phase Heavy Duty Narrow Body Duplex Receptacle, 125 V AC, 15 A, 2 Poles, 3 Wires, WhiteIn Stock: 45more info
|
BrandLeviton
MFG #BR15-W
Werner Part #46406
UPC078477819777
In Stock: 45more info
|
BrandLeviton
MFG #BR15-W
Werner Part #46406
UPC078477819777
Product Description
Leviton, BR15-W, Duplex Receptacle, 1-Phase Heavy Duty Narrow Body, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, NEMA WD-1/WD-2/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, White, 46 in H x 1.56 in W x 19 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorWhite
Country of OriginUS
Dimensions46 in H x 1.56 in W x 19 in D
Enclosure TypeNEMA WD-1/WD-2/WD-6
GradeCommercial
Horsepower1/2 hp
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA 5-15R
Number of Poles2
Number of Wires3
Package Height9.25 in
Package Length12.44 in
Package TypeEACH
Package Weight21 lbs
Package Width8.31 in
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
Type1-Phase Heavy Duty Narrow Body
Type / Style1-Phase Heavy Duty Narrow Body
Voltage Rating125 V AC
Documents
Applications
Commercial Applications
Warranty
10-Year Limited
Features
- Manufactured to withstand the demands of commercial and institutional applications
- Heavy duty brass power contacts for maximum conductivity and plug retention
- Shallow design for maximum wiring room in box
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C-73|CSA C22.2 File No. 42|CSA File No. 152105|NOM 057 Certified|UL 498|UL File No. E13399|UL 94
