Leviton AWSMT-7DW

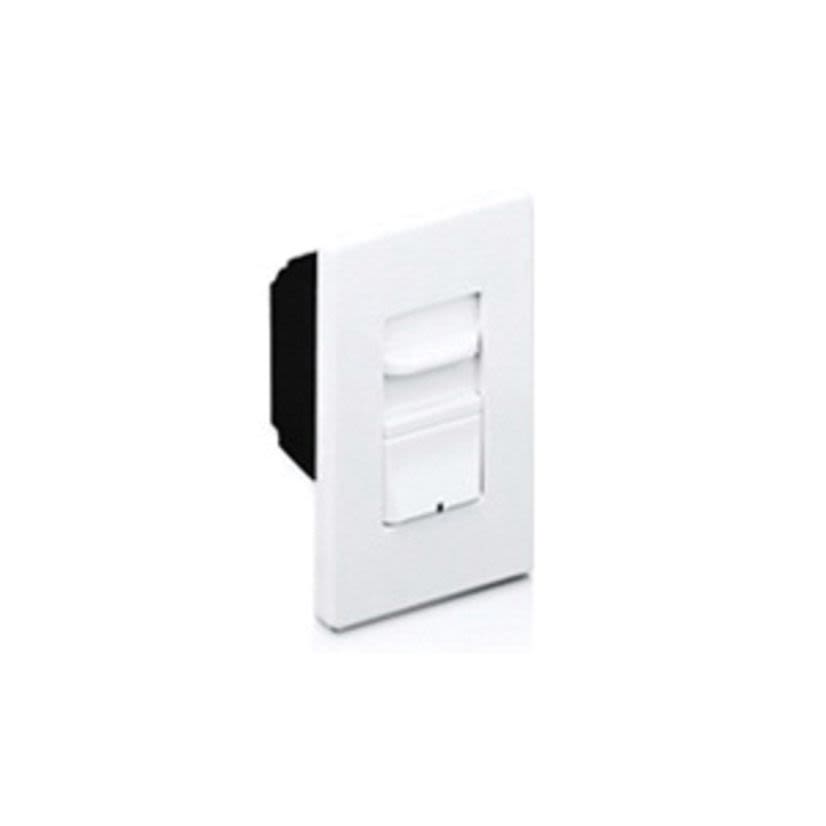

Leviton Renoir AWSMT-7DW Narrow Wall Box Dimmer With Thin Heat Sink, 120/230/277 V AC, 16 A, 1 Pole, White
Leviton AWSMT-7DW
Leviton Renoir AWSMT-7DW Narrow Wall Box Dimmer With Thin Heat Sink, 120/230/277 V AC, 16 A, 1 Pole, WhiteInventory Not Available
BrandLeviton
MFG #AWSMT-7DW
Werner Part #3958925
UPC078477459768
Inventory Not Available
BrandLeviton
MFG #AWSMT-7DW
Werner Part #3958925
UPC078477459768
Product Description
Leviton Renoir Wall Box Dimmer, Narrow, 120/230/277 V AC, 16 A, 1920/3680/4432 W Power, 60 Hz Frequency, 1 Pole, Fluorescent Lamp, Pre-Set Slide Control, Wall Mounting, Traveler Wire Terminal, 0 to 40 deg C, White, 5.157 in H x 2.891 in W x 2.133 in D
Attributes
Documents
Applications
Features
Attributes
ColorWhite
ControlPre-Set Slide
Country of OriginCN
Dimensions5.157 in H x 2.891 in W x 2.133 in D
Frequency Rating60 Hz
Lamp TypeFluorescent
ManufacturerLeviton
Mounting TypeWall
Number of Poles1
Power Rating1920/3680/4432 W
Temperature Rating0 to 40 deg C
Terminal TypeTraveler Wire
TypeNarrow
Type / StyleNarrow
Voltage Rating120/230/277 V AC
Documents
Applications
Architectural Dimming Control and Multi-Gang Applications
Features
- Multi-location dimming locator indicator configurable cut-off level solid state triac dimming
- Remote dimmers and switches
- Connect up to 5 devices, maximum 250 ft on one traveler wire
- Remote control all connected master dimmers
- Masters always operate independently
- Locator indicator illuminates when dimmer is OFF for easy location in a dark room
- Non-neutral models for retrofit applications
- Configurable cut-off level allows user configuration of cut-off point and automatically recalibrates to allow maximum control from cut-off point to full output
- Smooth action, linear captive slide control easy, precise adjustment of lighting levels, easy touch preset switch turns lights ON at last selected brightness level
- Clean and stylish appearance fits standard commercial 2-1/2 in deep wallboxes, Decora wallplates coordinate with Leviton extensive line of Decora devices, fins are easily removed for multi-gang applications, no visible metal heat sinks, fins or mounting hardware
- Solid state triac dimming saves energy when dimming, extends lamp life and reduces maintenance costs
- Flicker free, smooth and continuous dimming reduces light fluctuations from line voltage variation and maintains the power delivered to the lamp
- Power failure memory light is restored to the same levels set prior to the power failure or power interruption
- Surge protection tested to withstand surges of 6000 VAC, 200 A
- Electrostatic discharge protection protects dimmer against static discharge up to 16000 VAC
- Advanced technology engineered heat sinks transfers heat away from essential electrical components for extended product life
- Square law dimming slider position indicates the perceived light level
- RFI filtering reduces interference with radio, audio and video equipment
- Neutral required
- 0 to 10 VDC dimming capability
