Leviton 69W75

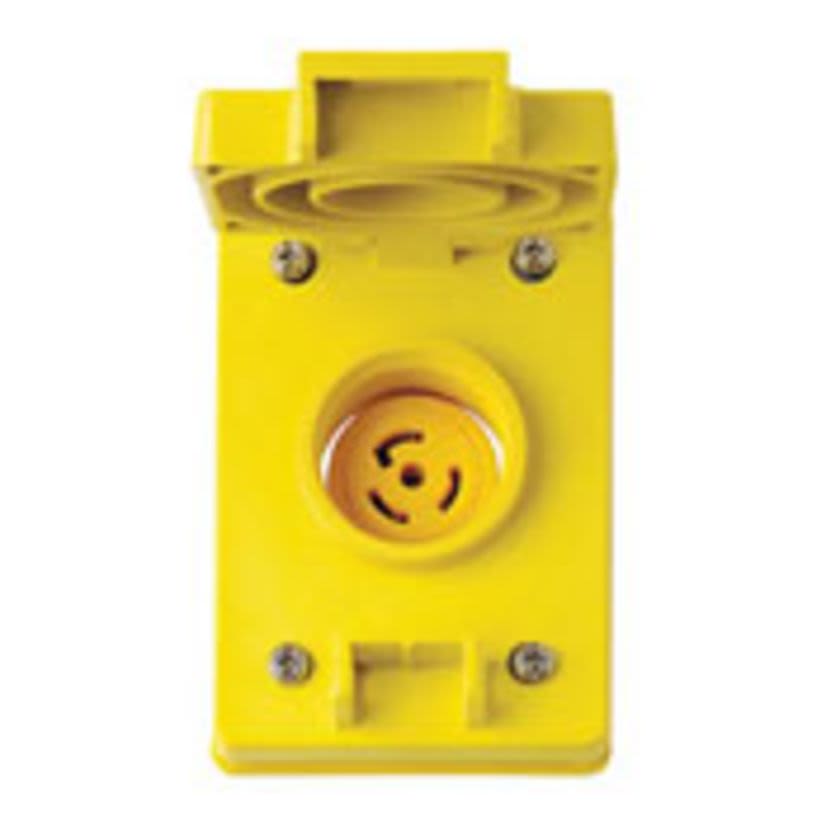

Leviton 69W75 3-Phase Y Grounding Single Locking Receptacle, 250 V AC, 30 A, 3 Poles, 4 Wires, Yellow
Leviton 69W75
Leviton 69W75 3-Phase Y Grounding Single Locking Receptacle, 250 V AC, 30 A, 3 Poles, 4 Wires, YellowNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Leviton, 69W75, Locking Receptacle, 3-Phase Y Grounding Single, 250 V AC, 30 A, 3 hp, 3 Pole, 4 Wires, NEMA L15-30R NEMA Rating, Industrial Grade, IP67 Enclosure, -40 to 60 deg C, Back Wire Terminal, Nylon, Yellow, 4.63 in H x 3.13 in W Dimensions
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
ColorYellow
Country of OriginMX
Dimensions4.63 in H x 3.13 in W
Enclosure TypeIP67
GradeIndustrial
Horsepower3 hp
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA L15-30R
Number of Poles3
Number of Wires4
Package Height6.5 IN
Package Length10.88 in
Package TypeEACH
Package Weight7.89 lbs
Package Width8.88 in
Phase3-Phase
Temperature Rating-40 to 60 deg C
Terminal TypeBack Wire
Type3-Phase Y Grounding Single
Type / Style3-Phase Y Grounding Single
Voltage Rating250 V AC
Applications
Commercial Applications
Features
- Box mounting
- 14 to 8 AWG terminal accommodation
- Flush mount
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42/LR406|Federal Specification WC596/E13399|UL 498 File No. E13399|UL94 V-0 Flammability Rating
Warranty
Limited Lifetime Warranty
