Leviton 60W33

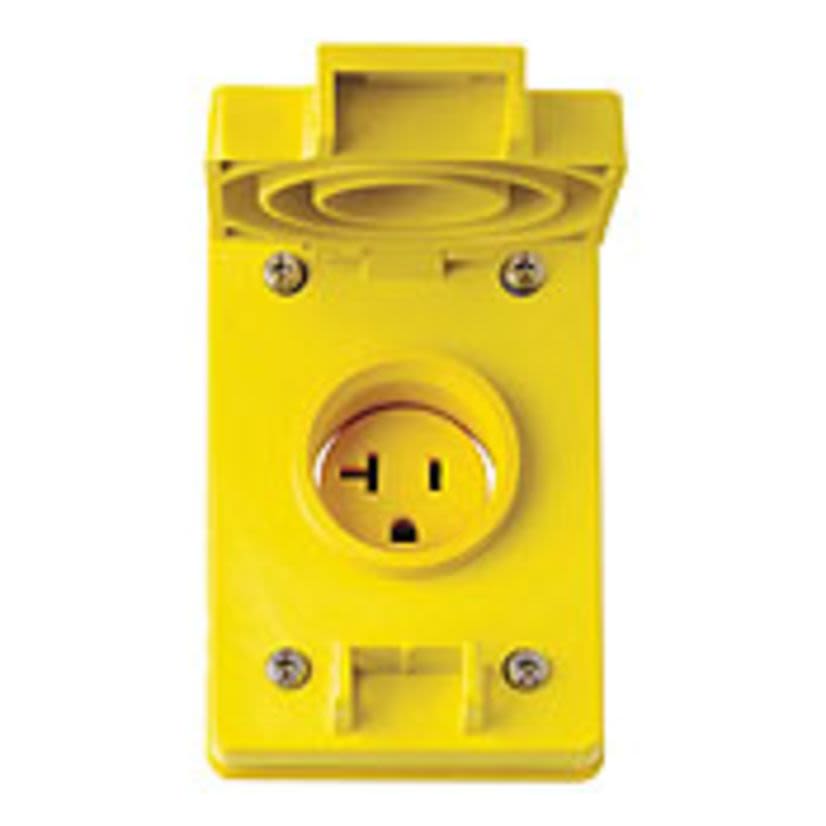

Leviton 60W33 Grounding Single Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Yellow
Leviton 60W33
Leviton 60W33 Grounding Single Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, YellowNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #60W33
Werner Part #1414232
UPC078477066249
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #60W33
Werner Part #1414232
UPC078477066249
Product Description
Leviton, 60W33, Straight Blade Receptacle, Grounding Single, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial Grade, -40 to 60 deg C, Side Wire Terminal, Thermoplastic Nylon/TPV, Yellow, 4.63 in H x 3.13 in W Dimensions
Attributes
Documents
Features
Specifications
Warranty
Attributes
ColorYellow
Country of OriginMX
Dimensions4.63 in H x 3.13 in W
GradeIndustrial
Horsepower1 hp
ManufacturerLeviton
MaterialThermoplastic Nylon/TPV
NEMA RatingNEMA 5-20R
Number of Poles2
Number of Wires3
Package Height6.5 IN
Package Length10.88 in
Package TypeEACH
Package Weight6.91 lbs
Package Width8.88 in
Temperature Rating-40 to 60 deg C
Terminal TypeSide Wire
TypeGrounding Single
Type / StyleGrounding Single
Voltage Rating125 V AC
Documents
Features
- Grounding
- Narrow body
- Flip lid
- 2000 VAC minimum dielectric strength
- Nickel plated brass strap
- 18 to 10 AWG wire terminal
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD-1/WD-6|ANSI C-73|NOM 057|CSA C22.2 No. 42 File No. 152105/LR406|UL Federal Specification WC596 File No. E13399/UL 498 File No. E13399/UL 498|UL94 V-2 Flammability Rating
Warranty
Lifetime
