Leviton 5362

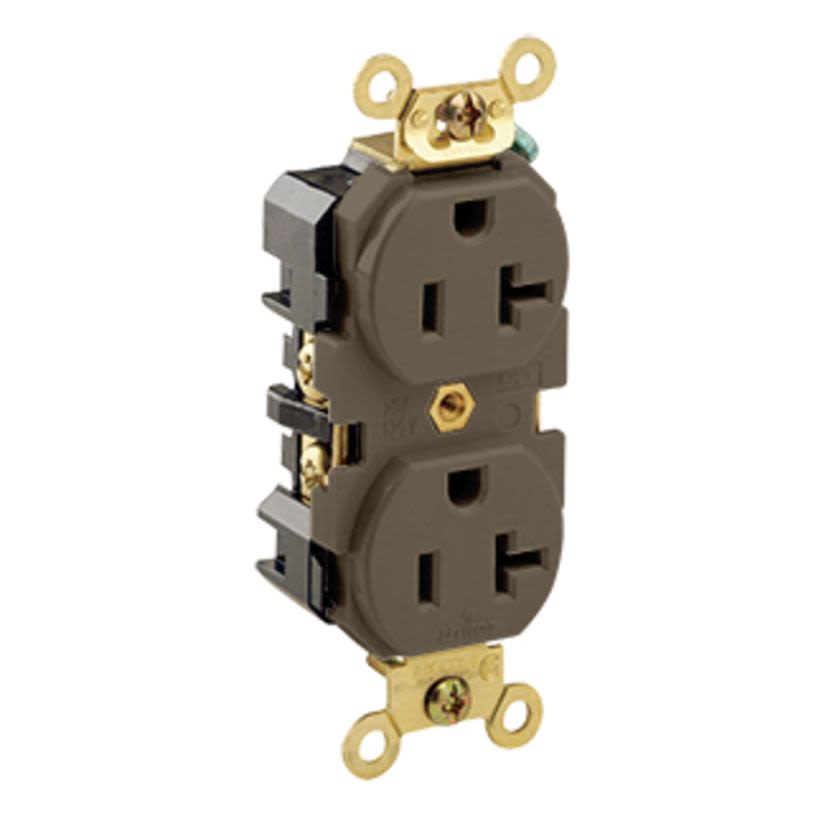

Leviton 5362 1-Phase Duplex Extra Heavy Duty Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, Brown
Leviton 5362
Leviton 5362 1-Phase Duplex Extra Heavy Duty Straight Blade Receptacle, 125 V AC, 20 A, 2 Poles, 3 Wires, BrownIn Stock: 8more info
|
BrandLeviton
MFG #5362
Werner Part #1318221
UPC078477139509
In Stock: 8more info
|
BrandLeviton
MFG #5362
Werner Part #1318221
UPC078477139509
Product Description
Leviton, 5362, Straight Blade Receptacle, 1-Phase Duplex Extra Heavy Duty, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Brown, 46 in H x 1.53 in W x 1.11 in D Dimensions
Attributes
Documents
Features
Specifications
Warranty
Attributes
ColorBrown
Country of OriginMX
Dimensions46 in H x 1.53 in W x 1.11 in D
GradeCommercial
Horsepower1 hp
ManufacturerLeviton
MaterialThermoplastic
NEMA RatingNEMA 5-20R
Number of Poles2
Number of Wires3
Package Height7.75 in
Package Length12.25 in
Package TypeEACH
Package Weight12.39 lbs
Package Width8.75 in
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
Type1-Phase Duplex Extra Heavy Duty
Type / Style1-Phase Duplex Extra Heavy Duty
Voltage Rating125 V AC
Features
- Impact resistant thermoplastic nylon cover and body
- Four corner latches securely fasten face
- Large triple wipe, brass T contacts for superior contact and conductivity
- Back and side wiring options
- Brass terminal screws to reduce conductor oxidation
- Break-OFF tabs allow easy 2-circuit conversion
- Apron barrier to prevent accidental contact between terminal screw heads and metal box
- Exclusive V-shaped, serrated back wiring clamps for superior contact and conductivity
- Wire lead receptacles for fast and easy installation
- Wallbox mounting
- Self-grounding
- 1-phase
- 2000 VAC minimum dielectric strength
- Brass strap material
- 14 to 10 AWG wire terminal
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42 File No. 152105|UL Federal Specification W-C-596 File No. E13399|UL 498 File No. E13399|UL94 V-2 Flammability Rating
Warranty
10 years Limited
