Leviton 515CV-LIT

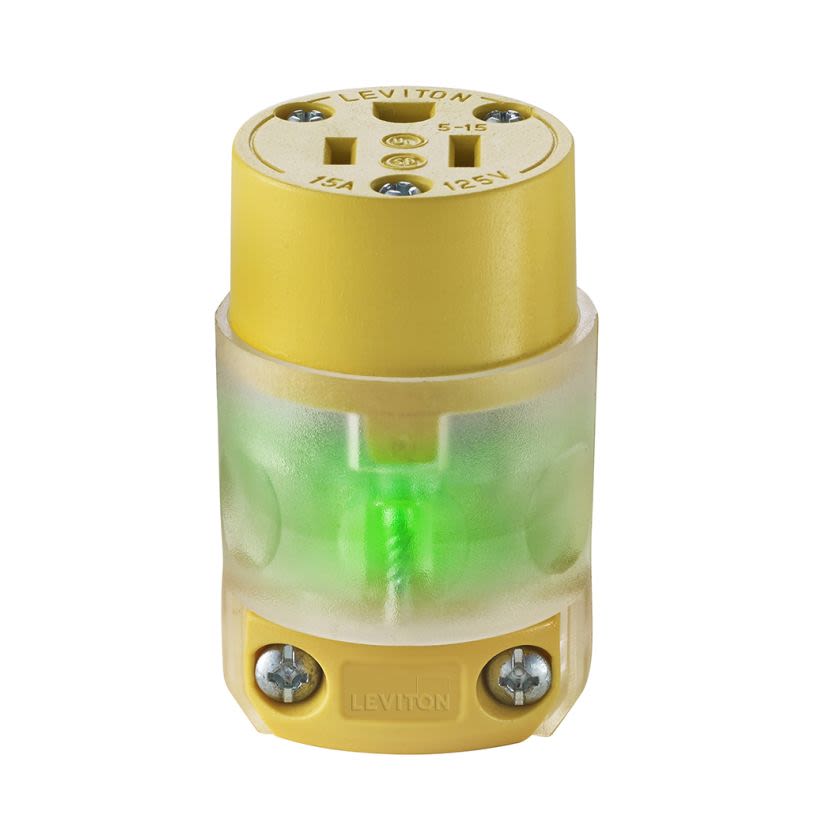

Leviton 515CV-LIT Grounding Lighted Straight Blade Connector, 125 V AC, 15 A, 2 Poles, 3 Wires, White/Yellow
Leviton 515CV-LIT
Leviton 515CV-LIT Grounding Lighted Straight Blade Connector, 125 V AC, 15 A, 2 Poles, 3 Wires, White/YellowNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #515CV-LIT
Werner Part #4038814
UPC078477674864
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #515CV-LIT
Werner Part #4038814
UPC078477674864
Product Description
Leviton Straight Blade Connector, Grounding Lighted, 125 V AC, 15 A, 2 Poles, 3 Wires, NEMA 5-15R, Commercial/Residential Grade, 0.245 to 0.7 in Cord Dia, -40 to 60 deg C, Screw Terminal, PVC, White/Yellow, 1.54 in Dia x 2.61 in H
Attributes
Documents
Warranty
Features
Specifications
Attributes
ColorWhite/Yellow
Country of OriginMX
Dimensions1.54 in Dia x 2.61 in H
Enclosure TypeIP20
GradeCommercial/Residential
ManufacturerLeviton
MaterialPVC
NEMA RatingNEMA 5-15R
Number of Poles2
Number of Wires3
Temperature Rating-40 to 60 deg C
Terminal TypeScrew
TypeGrounding Lighted
Type / StyleGrounding Lighted
Voltage Rating125 V AC
Documents
Warranty
10 Years Limited
Features
- Triple drive head screws standard, Philips and Robertson
- NEMA configuration number and rating molded on face of device for easy identification
- Rubber body is dirt and moisture resistant
- Husk and module keyed for easy alignment during wiring
- Built-in cord grip adjusts automatically for use with 18/3 AWG through 12/3 AWG cords
- Motor base inlet accepts 10 AWG maximum copper or copper clad wire
- Brass plug blades and connector contacts for maximum conductivity
- Rugged PVC body resist moisture and chemicals
- Unique dimpled body design provides a secure grip
- Speed thread assembly screws tighten with just a few quick turns
- Power indication using green neon indicator light
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C-73|NOM 057|CSA C22.2 No. 42 File No. LR406|UL 498 File No. E13393
