Leviton 3032-2I

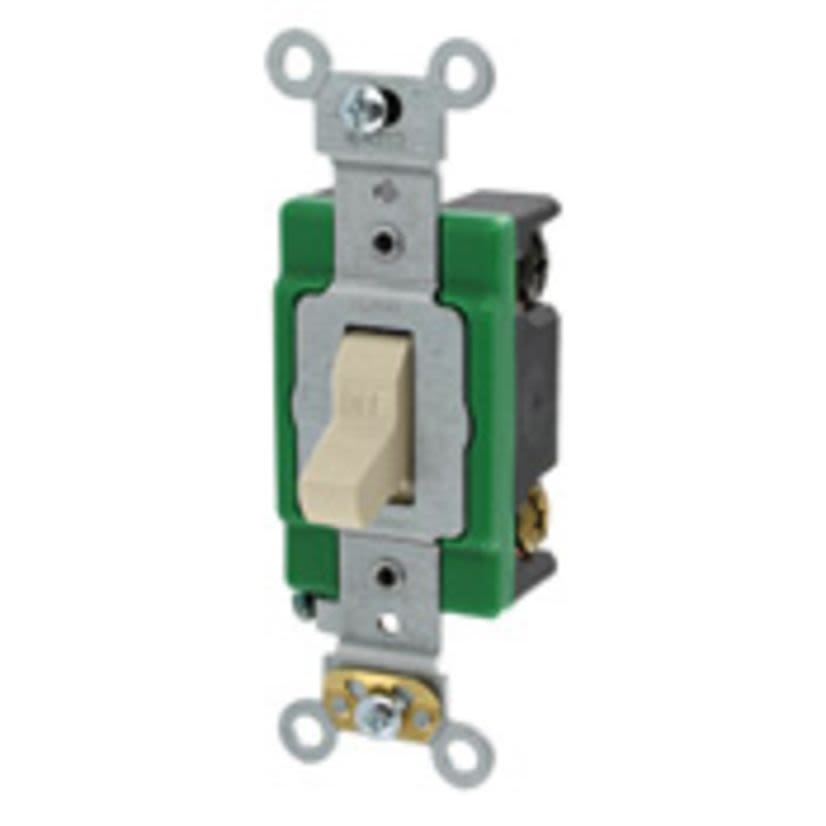

Leviton 3032-2I Self-Grounding Toggle Switch, 120/277 V AC, 30 A, 2 hp Power Rating
Leviton 3032-2I
Leviton 3032-2I Self-Grounding Toggle Switch, 120/277 V AC, 30 A, 2 hp Power RatingIn Stock: 20more info
|
In Stock: 20more info
|
Product Description
Leviton, 3032-2I, Toggle Switch, Self-Grounding, 120/277 V AC, 30 A, 2 hp Power, 2 hp at 120 to 240 V AC Contact, 2 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Ivory, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.31 in W x 13 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Actuator TypeToggle
ColorIvory
Country of OriginMX
Dimensions46 in H x 1.31 in W x 13 in D
Electrical Ratings2 hp
Enclosure TypeNEMA WD-1/WD-6
GradeExtra Heavy-Duty Industrial Specification Grade
Horsepower2 hp @ 120 V, 2 hp @ 240 V
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface
NEMA RatingWD-1 and WD-6
Number of Poles2
Package Height5.38 in
Package Length11.5 IN
Package TypeEACH
Package Weight6.34 lbs
Package Width9.25 in
Temperature Rating-40 to 65 deg C Operating Temperature
Terminal TypeBack/Side Wire
TypeSelf-Grounding
Type / StyleSelf-Grounding
Voltage Rating120/277 V AC
Documents
Applications
Commercial Applications
Warranty
10 year Limited
Features
- Top of the line industrial quality
- Heavy gauge copper alloy brush arm for superior performance
- Large silver alloy contacts for long life prevent sticking, welding and excessive pitting
- Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance
- Self-grounding clip (self grounding when used with a grounded metal wallbox)
- 2 hp at 120 to 277 VAC power rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
