Leviton 2K480-1SW

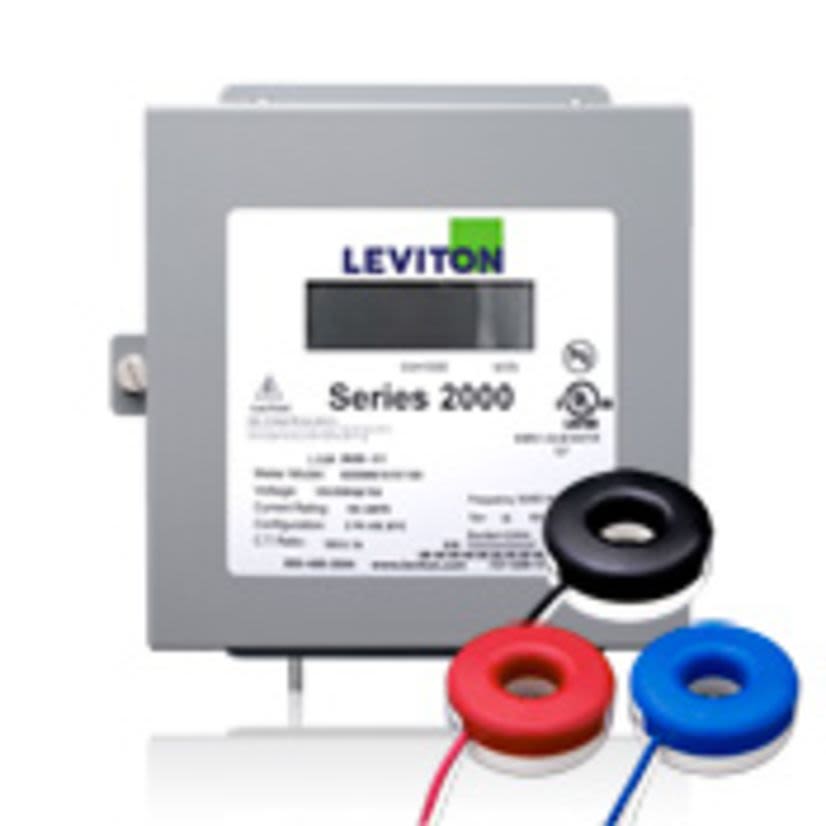

Leviton VerifEye 2K480-1SW 2000 3-Phase 4-Wire Surface Mount Solid Meter Kit, 277/480 V AC, 100 A, LCD Display, Isolated Pulse Output Communication
Leviton 2K480-1SW
Leviton VerifEye 2K480-1SW 2000 3-Phase 4-Wire Surface Mount Solid Meter Kit, 277/480 V AC, 100 A, LCD Display, Isolated Pulse Output CommunicationNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Leviton VerifEye Meter Kit, 3-Phase 4-Wire Surface Mount Solid, Series: 2000, 277/480 V AC, 100 A, LCD Display, Isolated Pulse Output Communication, Steel, 6.19 in L x 3.25 in W x 7.5 in H Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
Country of OriginUS
Dimensions6.19 in L x 3.25 in W x 7.5 in H
Display TypeLCD
FrameQ-Line
Interrupt Rating10 kA
ManufacturerLeviton
MaterialSteel
Mounting TypePlug-In
Number of Poles2
Phase1
Series2000
Size of Wire8 to 4 AWG
Trip TypeLI/Non-Interchangeable Thermal Magnetic
Type3-Phase 4-Wire Surface Mount Solid
Type / Style3-Phase 4-Wire Surface Mount
Voltage277/480 VAC
Documents
Applications
Commercial, Institutional, Industrial, Government and Indoor Applications
Included
(1) Meter, (1) Enclosure and (3) Solid Core Current Transformers
Warranty
10 years
Features
- Measures kWh and peak demand (optional)
- Utilizes either revenue grade 0.3% accuracy class 0.1 a secondary solid core current transformers
- Enclosures include surface mount industrial grade JIC steel indoor and NEMA 4X outdoor
- Interfaces with numerous communication systems and hardwired automatic meter reading AMR or wireless AMR
- Large LCD display shows kWh and instantaneous and peak demand with manual keyed reset
- Load indicator LED verifies meter functionality
- Reverse phase indicator LED illuminates if the meter is improperly installed
- 48 in L maximum current transformer lead
- 18 to 14 AWG terminal accommodation
- Equipped standard with an isolated pulse output channel and Modbus RTU (RS485) for easy AMR/BAS/BMS/EMS interface
