Leviton 2750

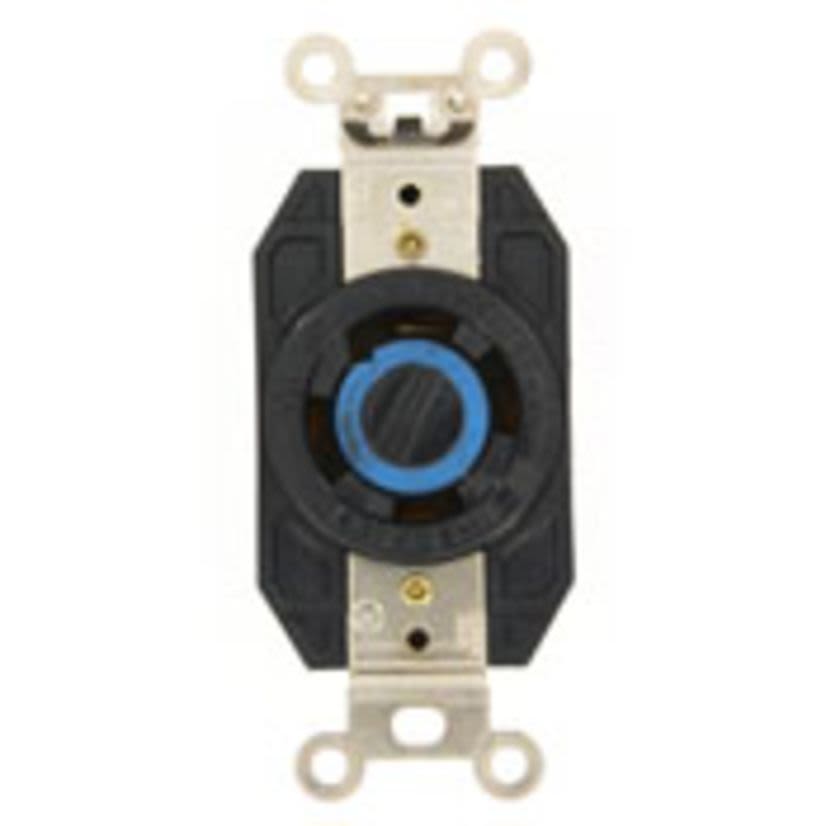

Leviton 2750 3-Phase Y Non-Grounding Locking Receptacle, 120/208 V AC, 30 A, 4 Poles, 4 Wires, Black
Leviton 2750
Leviton 2750 3-Phase Y Non-Grounding Locking Receptacle, 120/208 V AC, 30 A, 4 Poles, 4 Wires, BlackNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2750
Werner Part #45111
UPC078477045923
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2750
Werner Part #45111
UPC078477045923
Product Description
Leviton, 2750, Locking Receptacle, 3-Phase Y Non-Grounding, 120/208 V AC, 30 A, 3 hp, 4 Pole, 4 Wires, NEMA L18-30R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorBlack
Country of OriginMX
Dimensions3.63 in H x 1.69 in W x 1.31 in D
GradeIndustrial
Horsepower3 hp
ManufacturerLeviton
MaterialPolybutylene Terephthalate
NEMA RatingNEMA L18-30R
Number of Poles4
Number of Wires4
Package Height5.13 in
Package Length13.38 in
Package TypeEACH
Package Weight9.6 lbs
Package Width9.75 in
Phase3-Phase WYE
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
Type3-Phase Y Non-Grounding
Type / Style3-Phase Y Non-Grounding
Voltage Rating120/208 V AC
Applications
Industrial Applications
Warranty
Limited Lifetime Warranty
Features
- Box mounting
- 14 to 8 AWG terminal accommodation
- Flush mount
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42|Federal Specification WC596/E13399|UL 498|UL94 V-0/V-2 Flammability Rating
