Leviton 2710

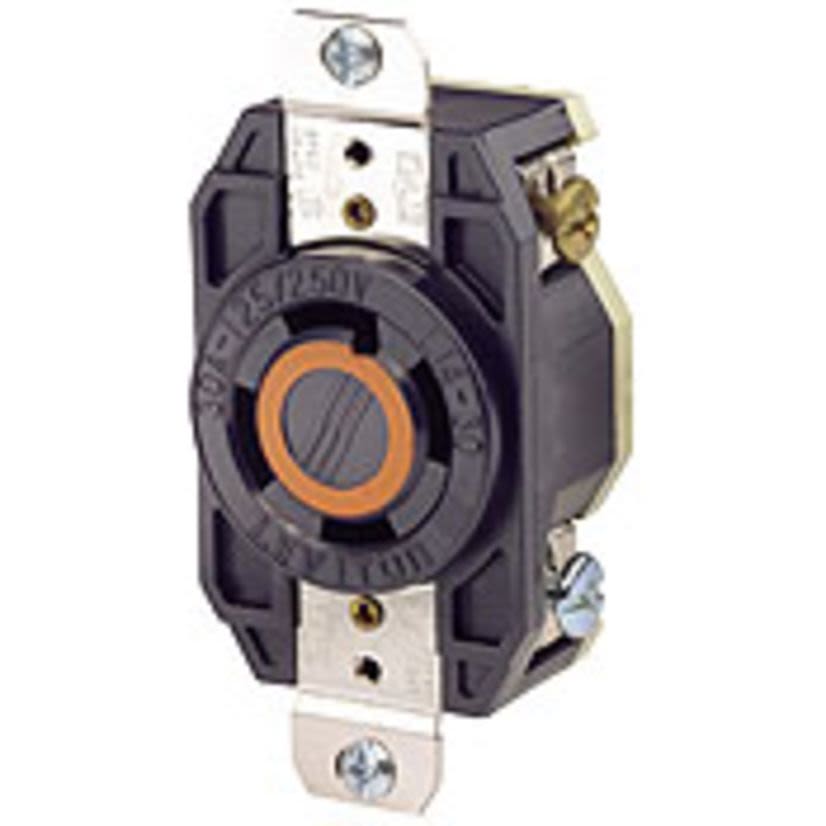

Leviton 2710 Grounding Locking Receptacle, 125/250 V AC, 30 A, 3 Poles, 4 Wires, Black
Leviton 2710
Leviton 2710 Grounding Locking Receptacle, 125/250 V AC, 30 A, 3 Poles, 4 Wires, BlackIn Stock: 4more info
|
In Stock: 4more info
|
Product Description
Leviton, 2710, Locking Receptacle, Grounding, 125/250 V AC, 30 A, 2 hp, 3 Pole, 4 Wires, NEMA L14-30R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorBlack
Country of OriginMX
Dimensions3.63 in H x 1.69 in W x 1.31 in D
GradeIndustrial
Horsepower2 hp
ManufacturerLeviton
MaterialPolybutylene Terephthalate
NEMA RatingNEMA L14-30R
Number of Poles3
Number of Wires4
Package Height5.13 in
Package Length13.38 in
Package TypeEACH
Package Weight9.3 lbs
Package Width9.75 in
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
TypeGrounding
Type / StyleGrounding
Voltage Rating125/250 V AC
Documents
Applications
Commercial Applications
Warranty
Limited Lifetime Warranty
Features
- Box mounting
- 14 to 8 AWG terminal accommodation
- Flush mount
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42|Federal Specification WC596/E13399|UL 498|UL94 V-0/V-2 Flammability Rating
