Leviton 2660

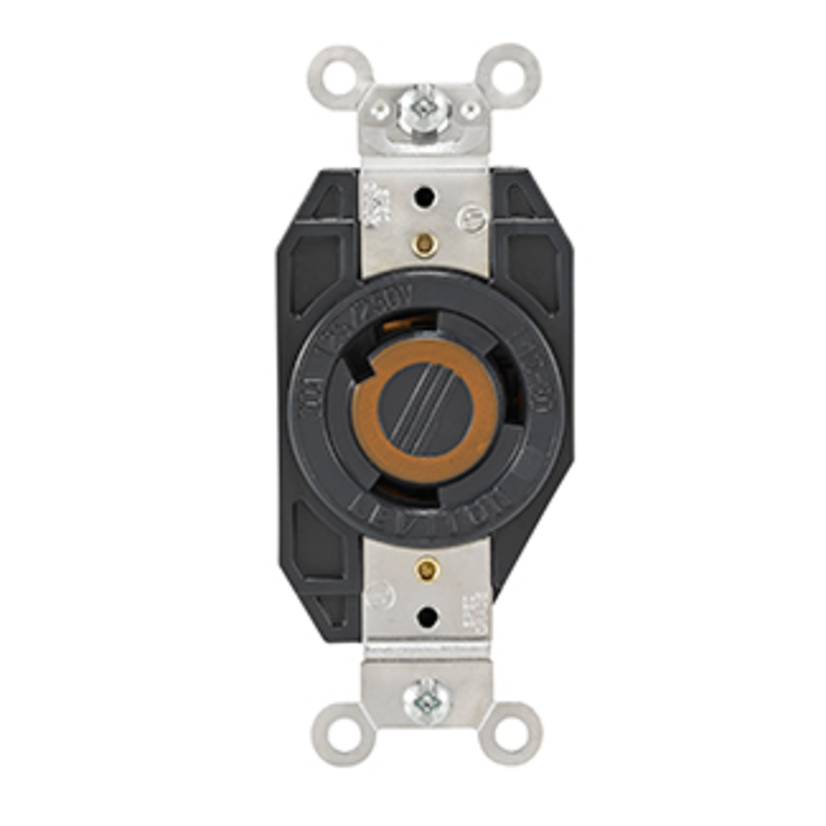

Leviton® V-0-Max™ 2660 Non-Grounding Locking Receptacle, 125/250 VAC, 30 A, 3 Poles, 3 Wires, Black
Leviton 2660
Leviton® V-0-Max™ 2660 Non-Grounding Locking Receptacle, 125/250 VAC, 30 A, 3 Poles, 3 Wires, BlackNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2660
Werner Part #1643150
UPC078477045862
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2660
Werner Part #1643150
UPC078477045862
Product Description
Leviton® V-0-Max™ Locking Receptacle, Non-Grounding, 125/250 VAC, 30 A, 2 hp, 3 Poles, 3 Wires, NEMA L10-30R, Industrial Grade, -40 to 60 deg C, Back/Side Wired Terminal, Nylon, Black, 3.63 in H x 1.69 in W x 1.31 in D
Attributes
Documents
Features
Specifications
Attributes
ColorBlack
Country of OriginMexico
Dimensions3.63 in H x 1.69 in W x 1.31 in D
GradeIndustrial
Horsepower2 hp
ManufacturerLeviton
MaterialNylon
NEMA RatingNEMA L10-30R
Number of Poles3
Number of Wires3
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
TypeNon-Grounding
Type / StyleNon-Grounding
Voltage Rating125/250 VAC
Features
Box mounting14 to 8 AWG terminal accommodationFlush mount
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42|Federal Specification WC596/E13399|UL 498|UL94 V-0/V-2 Flammability Rating
