Leviton 2610

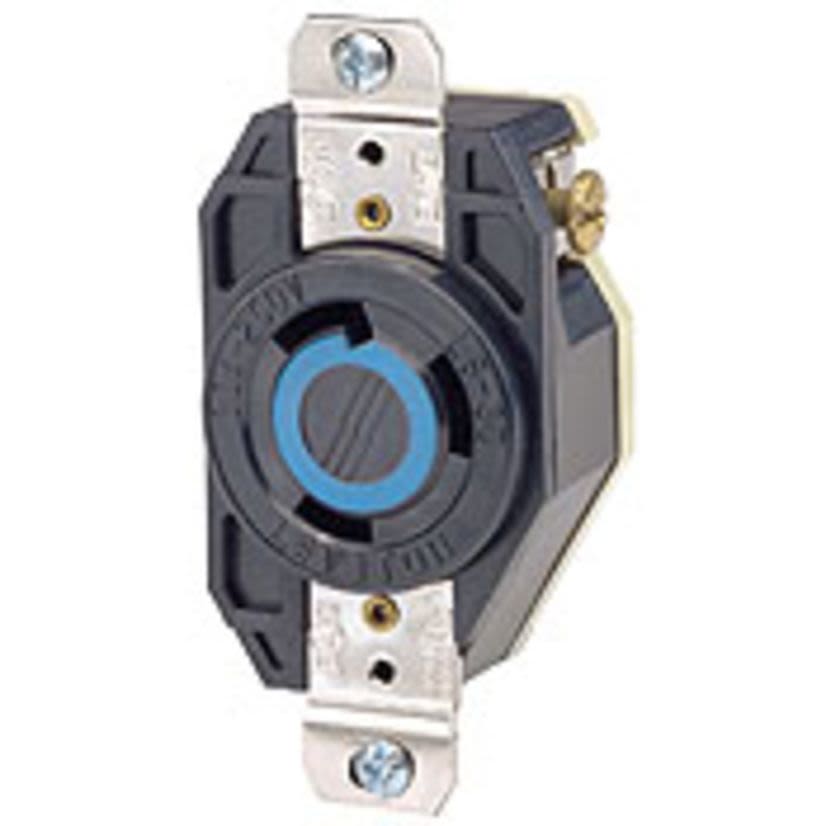

Leviton 2610 Grounding Locking Receptacle, 125 V AC, 30 A, 2 Poles, 3 Wires, Black
Leviton 2610
Leviton 2610 Grounding Locking Receptacle, 125 V AC, 30 A, 2 Poles, 3 Wires, BlackIn Stock: 8more info
|
BrandLeviton
MFG #2610
Werner Part #45065
UPC078477809471
In Stock: 8more info
|
BrandLeviton
MFG #2610
Werner Part #45065
UPC078477809471
Product Description
Leviton, 2610, Locking Receptacle, Grounding, 125 V AC, 30 A, 2 hp, 2 Pole, 3 Wires, NEMA L5-30R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Black, 3.63 in H x 1.69 in W x 1.31 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorBlack
Country of OriginMX
Dimensions3.63 in H x 1.69 in W x 1.31 in D
GradeIndustrial
Horsepower2 hp
ManufacturerLeviton
MaterialPolybutylene Terephthalate
NEMA RatingNEMA L5-30R
Number of Poles2
Number of Wires3
Package Height5.13 in
Package Length13.38 in
Package TypeEACH
Package Weight8.59 lbs
Package Width9.75 in
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
TypeGrounding
Type / StyleGrounding
Voltage Rating125 V AC
Applications
Commercial Applications
Warranty
Limited Lifetime Warranty
Features
- Box mounting
- 14 to 8 AWG terminal accommodation
- Flush mount
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42|Federal Specification WC596/E13399|UL 498|UL94 V-0/V-2 Flammability Rating
