Leviton 2320-IG

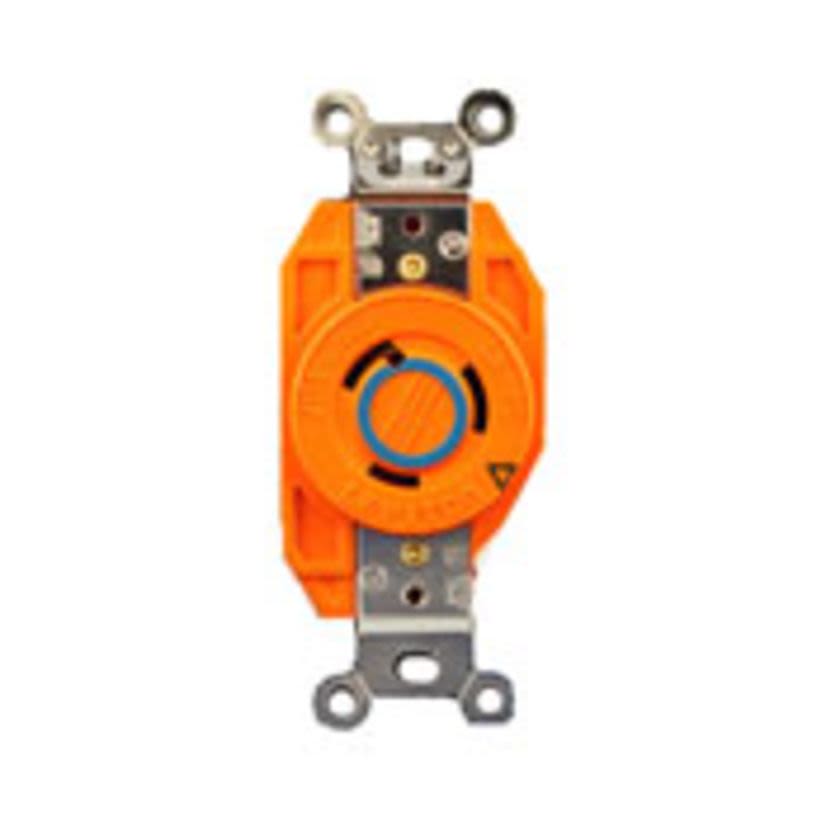

Leviton 2320-IG Isolated Grounding Locking Receptacle, 250 V AC, 20 A, 2 Poles, 3 Wires, Orange
Leviton 2320-IG
Leviton 2320-IG Isolated Grounding Locking Receptacle, 250 V AC, 20 A, 2 Poles, 3 Wires, OrangeNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2320-IG
Werner Part #1315147
UPC078477801215
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #2320-IG
Werner Part #1315147
UPC078477801215
Product Description
Leviton, 2320-IG, Locking Receptacle, Isolated Grounding, 250 V AC, 20 A, 2 hp, 2 Pole, 3 Wires, NEMA L6-20R NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Polybutylene Terephthalate, Orange, 3.63 in H x 1.69 in W x 1.31 in D Dimensions
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
ColorOrange
Country of OriginMX
Dimensions3.63 in H x 1.69 in W x 1.31 in D
GradeIndustrial
Horsepower2 hp
ManufacturerLeviton
MaterialPolybutylene Terephthalate
NEMA RatingNEMA L6-20R
Number of Poles2
Number of Wires3
Package Height5.13 in
Package Length13.38 in
Package TypeEACH
Package Weight9.06 lbs
Package Width9.75 in
Temperature Rating-40 to 60 deg C
Terminal TypeBack/Side Wire
TypeIsolated Grounding
Type / StyleIsolated Grounding
Voltage Rating250 V AC
Documents
Applications
Commercial Applications
Features
- Box mounting
- 14 to 8 AWG terminal accommodation
- Flush mount
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|NEMA WD1/WD6|ANSI C73|NOM 057|CSA C22.2 No. 42|Federal Specification WC596/E13399|UL 498|UL94 V-0/V-2 Flammability Rating
Warranty
Limited Lifetime Warranty
