Leviton 16D32-UG

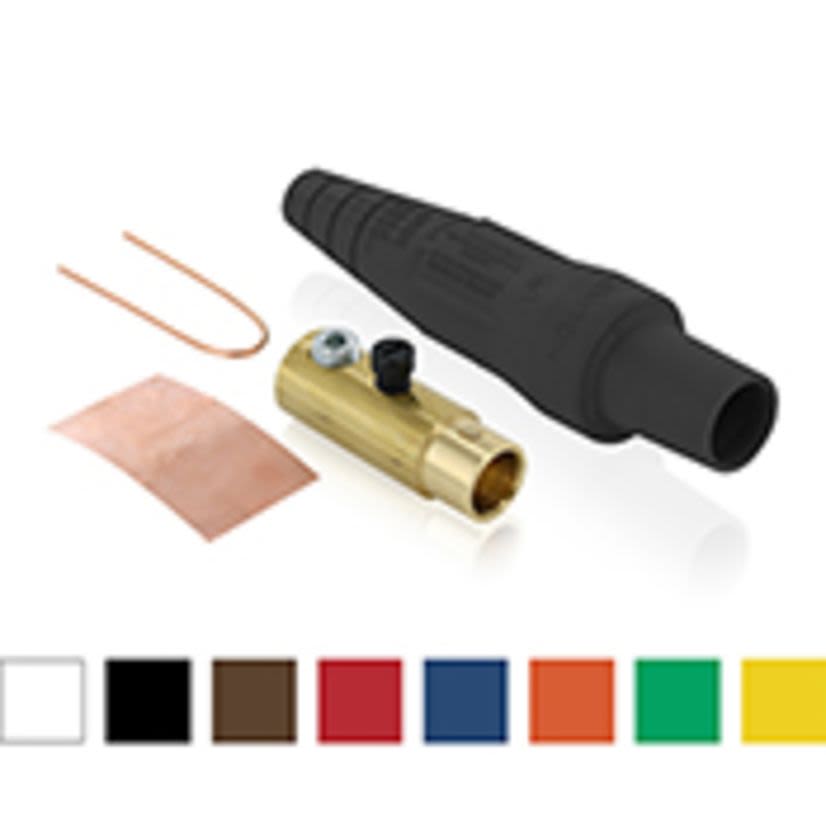

Leviton 16D32-UG 16 Series 1-Pole Cam Type Taper Nose While-in-Use Detachable Female Plug, 600 V AC, 400 A, 2/0 to 4/0 AWG Wire, Single Setscrew Connection, NEMA 3R NEMA Rating
Leviton 16D32-UG
Leviton 16D32-UG 16 Series 1-Pole Cam Type Taper Nose While-in-Use Detachable Female Plug, 600 V AC, 400 A, 2/0 to 4/0 AWG Wire, Single Setscrew Connection, NEMA 3R NEMA RatingNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #16D32-UG
Werner Part #4163711
UPC078477720080
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #16D32-UG
Werner Part #4163711
UPC078477720080
Product Description
Leviton, 16D32-UG, Detachable Female Plug, 1-Pole Cam Type Taper Nose While-in-Use, Series: 16 Series, 600 V AC, 400 A, 2/0 to 4/0 AWG Wire, Single Setscrew Connection, Brass Contact, Santoprene TPV Housing Material, NEMA 3R NEMA Rating, Threaded Mounting, Specifications: 1-Pole, 86 deg F, Green, 1.72 in Dia x 6.85 in L Dimensions
Attributes
Documents
Applications
Included
Features
Specifications
Attributes
ColorGreen
Connection TypeSingle Setscrew
Contact MaterialBrass
Country of OriginMX
Dimensions1.72 in Dia x 6.85 in L
Housing MaterialSantoprene TPV
ManufacturerLeviton
Mounting TypeThreaded
NEMA RatingNEMA 3R
Package Height4.88 in
Package Length10 in
Package TypeEACH
Package Weight6.18 lbs
Package Width8.13 in
Series16 Series
Size of Wire2/0 to 4/0 AWG
Temperature Rating86 deg F
Type1-Pole Cam Type Taper Nose While-in-Use
Type / Style1-Pole Cam Type Taper Nose While-in-Use
Voltage Rating600 V AC
Documents
Applications
Industrial Applications
Included
Contact, Insulator
Features
- Reusable sleeves and contacts for easy assembly and disassembly without special tools
- Color coded insulating sleeves provide fast and easy phase identification
- Color-coded for easy phase identification
- High conductivity positive, vibration proof connection provided by double cam design
- Shatter and crack proof high durometer thermoplastic elastomer (TPV) or neoprene rubber
- Self compensating for wear slit in male contact provides spring action for longer usage
- Hard thermoplastic screw provides strength and durability
- Intermateable with competitive cam type products and can be retrofitted to existing locations and power distribution systems
- Taper nose configuration
- Copper wire strain-relief
- Industrial grade plug
- Plug along with contact and insulator
- NEMA 3R rated (rainproof) for use outdoors
Specifications
1-Pole
