Leviton 1223-7PR

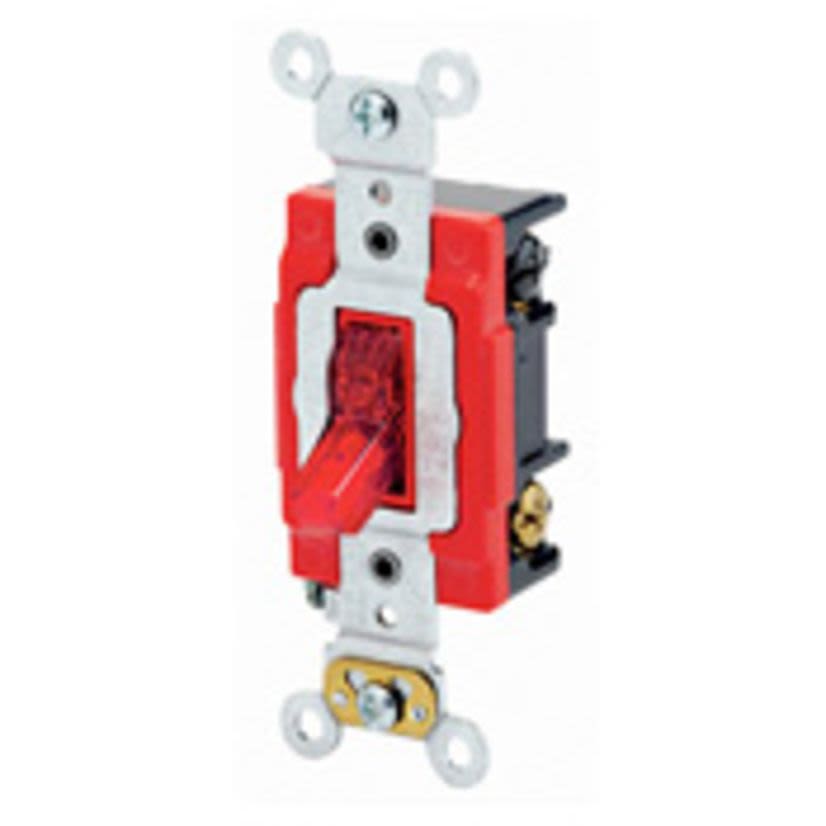

Leviton 1223-7PR 3-Way Illuminated ON Self-Grounding Toggle Switch, 277 V AC, 20 A, 1 hp Power Rating
Leviton 1223-7PR
Leviton 1223-7PR 3-Way Illuminated ON Self-Grounding Toggle Switch, 277 V AC, 20 A, 1 hp Power RatingNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #1223-7PR
Werner Part #1052671
UPC078477984239
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #1223-7PR
Werner Part #1052671
UPC078477984239
Product Description
Leviton, 1223-7PR, Toggle Switch, 3-Way Illuminated ON Self-Grounding, 277 V AC, 20 A, 1 hp Power, 1 hp at 120 V AC Contact, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Red, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.31 in W x 1.6 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Actuator TypeToggle
ColorRed
Country of OriginMX
Dimensions46 in H x 1.31 in W x 1.6 in D
Electrical Ratings1 hp
Enclosure TypeNEMA WD-1/WD-6
GradeExtra Heavy-Duty Industrial Specification Grade
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface
NEMA RatingWD-1 & WD-6
Package Height5.13 in
Package Length13.38 in
Package TypeEACH
Package Weight6.72 lbs
Package Width9.75 in
Temperature Rating-40 to 65 deg C Operating Temperature
Terminal TypeBack/Side Wire
Type3-Way Illuminated ON Self-Grounding
Type / Style3-Way Illuminated ON Self-Grounding
Voltage Rating277 V AC
Applications
Industrial Applications
Warranty
10 years Limited
Features
- Heavy gauge copper alloy brush arm for superior performance
- Lighted handle illuminated when load is OFF
- Pilot light toggle illuminated when load is ON
- Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance
- Self-grounding clip (self grounding when used with a grounded metal wallbox)
- 1 hp at 120 VAC power rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
