Leviton 1201-PLG

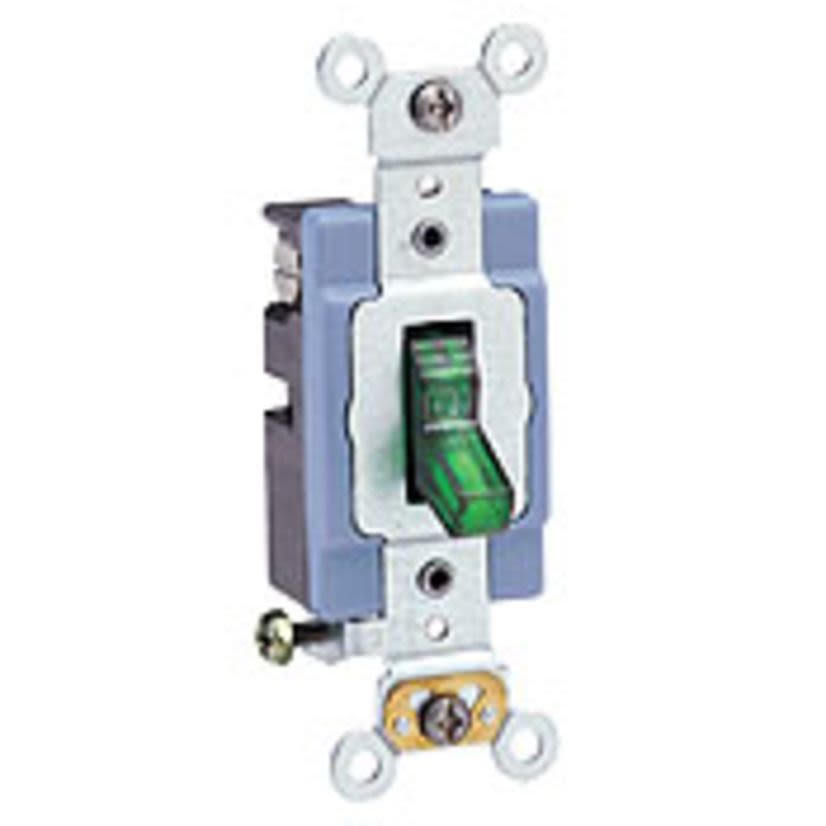

Leviton 1201-PLG Illuminated ON Self-Grounding Toggle Switch, 120 VAC, 15 A, 1/2 hp Power Rating
Leviton 1201-PLG
Leviton 1201-PLG Illuminated ON Self-Grounding Toggle Switch, 120 VAC, 15 A, 1/2 hp Power RatingNon-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #1201-PLG
Werner Part #3976611
UPC078477224403
Non-stock product. Available to order - lead time may vary.
BrandLeviton
MFG #1201-PLG
Werner Part #3976611
UPC078477224403
Product Description
Leviton, 1201-PLG, Toggle Switch, Illuminated ON Self-Grounding, 120 VAC, 15 A, 1/2 hp Power, 1/2 hp at 120 V AC Contact, 1 Pole, Toggle Actuator, NEMA WD-1/WD-6 Enclosure, Surface Mounting, Back/Side Wire Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Green, Environmental Conditions: -40 to 65 deg C Operating Temperature, 46 in H x 1.31 in W x 1.6 in D Dimensions
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
Actuator TypeToggle
ColorGreen
Country of OriginMX
Dimensions46 in H x 1.31 in W x 1.6 in D
Electrical Ratings1/2 hp
Enclosure TypeNEMA WD-1/WD-6
ManufacturerLeviton
MaterialThermoplastic
Mounting TypeSurface
Number of Poles1
Temperature Rating-40 to 65 deg C Operating Temperature
Terminal TypeBack/Side Wire
TypeIlluminated ON Self-Grounding
Type / StyleIlluminated ON Self-Grounding
Voltage Rating120 V AC
Documents
Applications
Commercial Applications
Warranty
10 years Limited
Features
- Pilot light and lighted handle switches provide top performance in punishing industrial applications
- Lighted handle illuminated when load is OFF
- Pilot light toggle illuminated when load is ON
- Fully enclosed switch mechanism in rugged housing for strength, tracking and arc resistance
- Self-grounding clip (self grounding when used with a grounded metal wallbox)
- 1/2 hp at 120 VAC power rating
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|ANSI C73|CSA C22.2 No. 111 File No. 152105|NOM 057|Federal Specification WS896E File No. E7458|UL 20|UL94 V-2 Flammability Rating
