Lithonia Lighting IBE 15LM MVOLT 40K

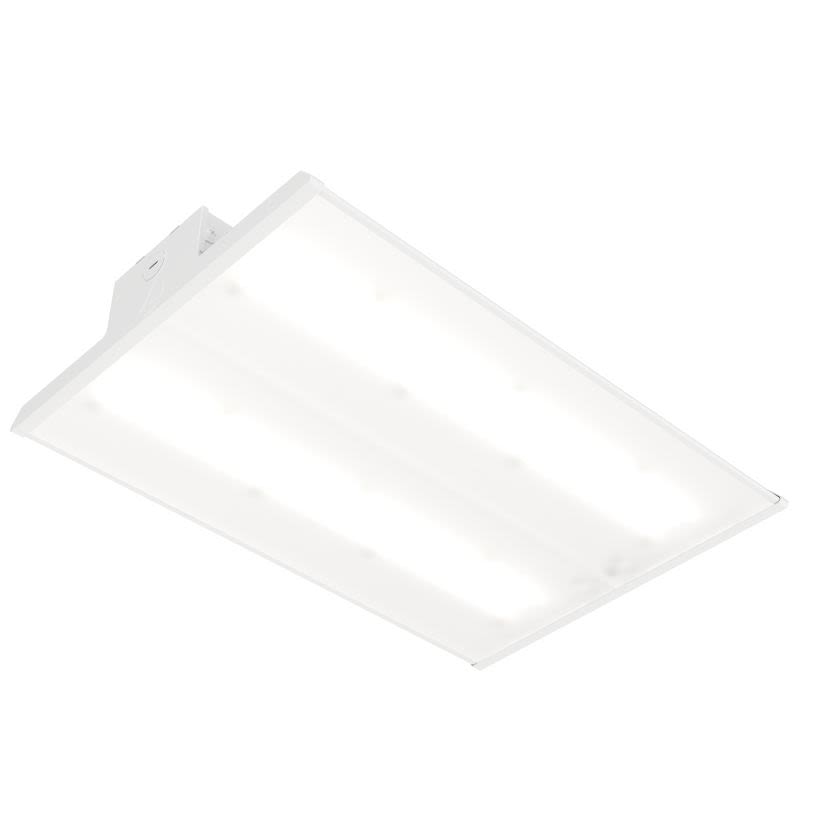

Lithonia Lighting IBE 15LM MVOLT 40K Economical Linear High Bay Fixture
🚚 Ships Quickly from Acuity
Lithonia Lighting IBE 15LM MVOLT 40K
Lithonia Lighting IBE 15LM MVOLT 40K Economical Linear High Bay FixtureNon-stock product. Available to order - lead time may vary.
BrandLithonia Lighting
MFG #IBE 15LM MVOLT 40K
Werner Part #4242483
UPC191848194133
Non-stock product. Available to order - lead time may vary.
BrandLithonia Lighting
MFG #IBE 15LM MVOLT 40K
Werner Part #4242483
UPC191848194133
Product Description
🚚 This product is included in Acuity's Quick Ship program. Typically, it can be delivered within two weeks, even if it is not currently in stock at Werner Electric.
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
Average Life>100000 hr
Color Rendering Index (CRI)80
Color Temperature4000 K
Country of OriginMexico
Dimensions22 in L x 15-1/4 in W x 4-3/8 in H
Fixture Wattage107/105 W
Housing FinishGloss White
Housing MaterialAluminum
Lamp TypeLED
Lamp Wattage105/107 W
Lens TypeAcrylic Semi-Diffuser
Light ColorWhite
Lumen15000 Lumens
ManufacturerAcuity Brands
Mounting TypePendant/Suspended
Number of Lamps2
SeriesIBE
TypeHigh Bay LED - Static
Voltage Rating120 to 277 VAC
Applications
For light Industrial applications such as warehousing and other large indoor spaces with mounting heights ranging from 10 ft
Features
- UL Listed to 45 deg C ambient with a thermal management system allowing for safe operation during times when temperatures rise up to 55 deg C
- Medium distribution
- 107 W at 120 VAC, 105 W at 277 VAC wattage
- Replaces up to 575 W HID or 8-lamp T5HO consumes less energy and saves up to 60% in energy costs over traditional sources
- Compact 2 ft housing
- 0 to 10 V dimming
- The I-BEAM IBE LED luminaire gives budget-conscious customers a reliable LED solution featuring 6kV surge protection standard and is designed to meet the challenges of warehouse and light industrial applications
- Easily replaces traditional 175 W metal halide, 4-lamp T8 HBF, 2-lamp T5HO saving up to 48% energy
- Integrated LEDs generate a nominal 12,000 lumens while efficiently using up to 83 W to save money on utility bills
- Thermally protected driver standard with 0-10V dimming
- Meets highest standards - 6kV surge protection; UL , cUL certified to US and Canadian standards, listed for damp locations
- Multi-volt 0-10V dimming driver
- 70% lumen maintenance at >100,000 hr
- Suitable for suspension by chain, cable, surface-mounting bracket, hook monopoint or single (pendant) monopoint
- Field-installable LED emergency driver sold separately
Specifications
- UL/cULus/DLC Listed
- ANSI Standard
- DLC Listed Premium
Warranty
5 Years Limited
