nVent ILSCO ALNN-4/0-12

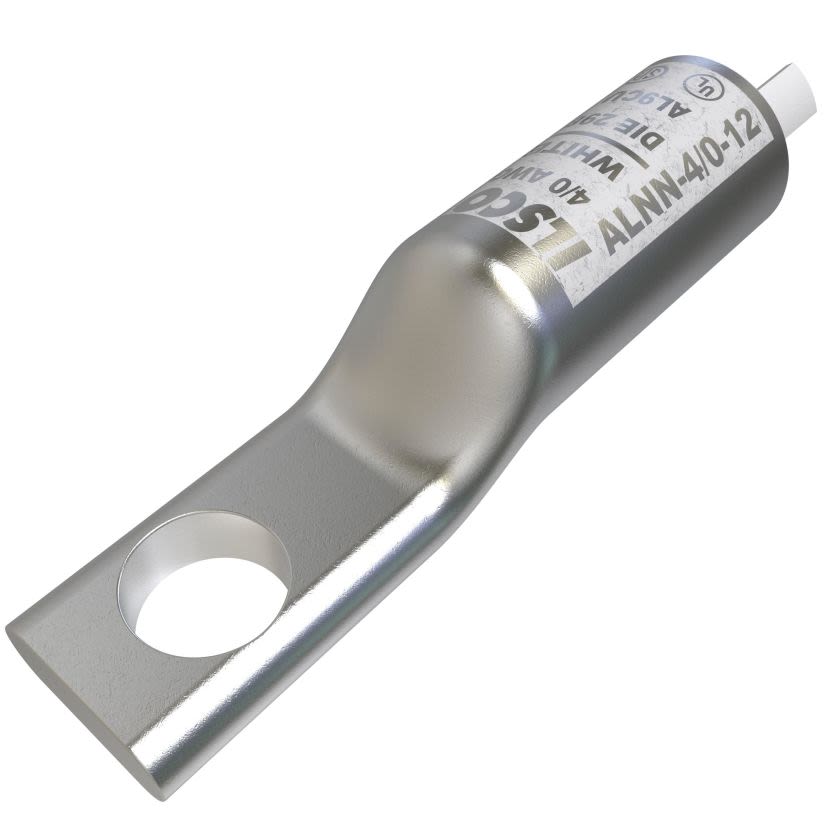

ILSCO SureCrimp ALNN-4/0-12 1-Hole Type ALNN Lug Compression Connector, 1 to 4/0 AWG Aluminum/Copper Conductor, Die Code: 298, 1/2 in Stud, Aluminum Alloy
nVent ILSCO ALNN-4/0-12
ILSCO SureCrimp ALNN-4/0-12 1-Hole Type ALNN Lug Compression Connector, 1 to 4/0 AWG Aluminum/Copper Conductor, Die Code: 298, 1/2 in Stud, Aluminum AlloyOut of Stockmore info
|
Out of Stockmore info
|
Product Description
ILSCO SureCrimp Lug Compression Connector, 1-Hole Type ALNN, Aluminum/Copper Conductor, 1 to 4/0 AWG Conductor, Die Code: 298, 600 V AC, 1/2 in Stud, Narrow Long Tongue, 1.25 in L x 0.824 in W Tongue, 3.276 in Overall Length, Chamfered Barrel, 1.535 in L Barrel, 1.5975 in L Strip, 90 deg C, 0.562 in Dia Mounting Hole, Aluminum Alloy, White, 0.553 in ID x 0.854 in OD
Attributes
Documents
Applications
Features
Specifications
Attributes
Barrel Size1.535 in L
Barrel TypeChamfered
ColorWhite
Conductor size1 to 4/0 AWG
Conductor TypeAluminum/Copper
Country of OriginMX
Die Code298
Dimensions0.553 in ID x 0.854 in OD
ManufacturerECM Industries
MaterialAluminum Alloy
Overall Length3.276 in
Package TypeEACH
Stud Size1/2 in
Temperature Rating90 deg C
Tongue Size1.25 in L x 0.824 in W
Tongue TypeNarrow Long
Type1-Hole Type ALNN
Voltage Rating600 V AC
Applications
Terminating Connector
Features
- Narrow tang allows for ease of side by side mounting
- Manufactured from high strength aluminum alloy which offers maximum conductivity and excellent crimping characteristics
- Electro-tin plated for low contact resistance
- Chamfered entry for easy conductor insertion
- Color coded end cap identifies the proper compression die
- Roll marked barrel for easy identification and proper location of crimps
- Pre-filled with De-ox prevents oxide from forming
- Dual rated for copper and aluminum conductor
- If proper high voltage spacing and insulation techniques are used, may be used for high voltage applications up to 35 kV
- Expanded wire size applicable when installed with specified dieless tools
- Without sight hole
Specifications
1.5975 in L Strip
