nVent ILSCO TA-500

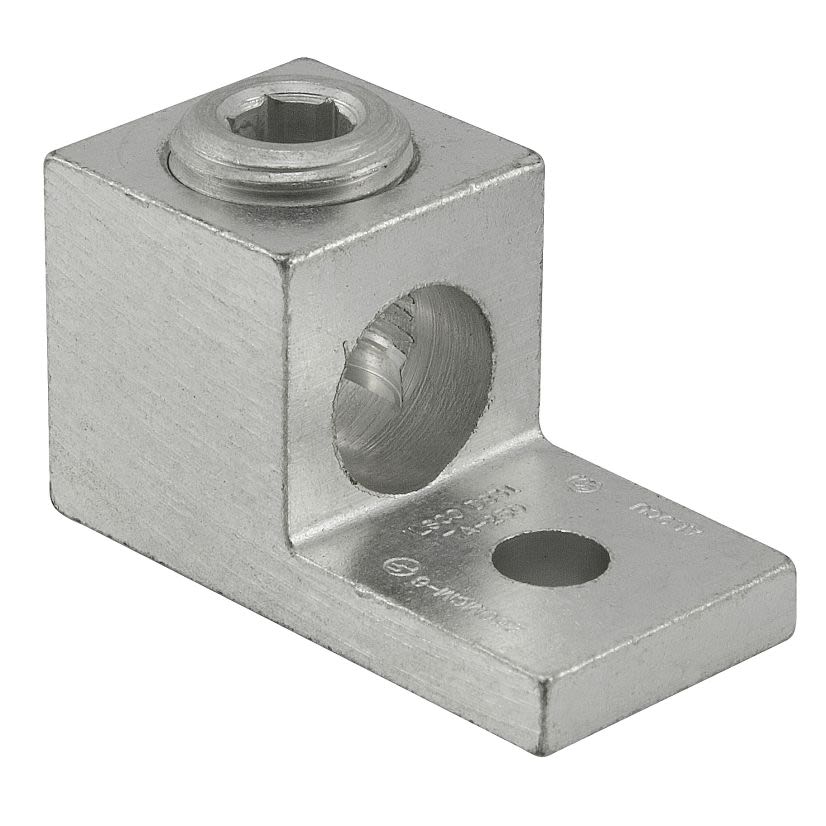

ILSCO ClearChoice TA-500 1-Conductor Dual Rated Mechanical Terminal Lug, 4 AWG to 500 kcmil Aluminum/Copper Conductor, 3/8 in Stud, 1 Bolt Hole, 6061-T6 Aluminum Alloy
nVent ILSCO TA-500
ILSCO ClearChoice TA-500 1-Conductor Dual Rated Mechanical Terminal Lug, 4 AWG to 500 kcmil Aluminum/Copper Conductor, 3/8 in Stud, 1 Bolt Hole, 6061-T6 Aluminum AlloyOut of Stockmore info
|
Out of Stockmore info
|
Product Description
ILSCO ClearChoice Mechanical Terminal Lug, 1-Conductor Dual Rated, Series: TA Series, Aluminum/Copper Conductor, 4 AWG to 500 kcmil Conductor, 3/8 in Stud, 1 Bolt Hole, 1.594 in L x 1.5 in W x 0.312 in THK Tongue, Straight Tongue, 2000 V AC, 1/2 in Hex, 90 deg C, 6061-T6 Aluminum Alloy, Electro-Plated Tin, 2.8125 in L x 1.5 in W x 1.562 in H
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size4 AWG to 500 kcmil
Conductor TypeAluminum/Copper
Country of OriginMX
Dimensions2.8125 in L x 1.5 in W x 1.562 in H
FinishElectro-Plated Tin
ManufacturerECM Industries
Material6061-T6 Aluminum Alloy
Number of Bolt Holes1
Package Height1.56 in
Package Length2.81 in
Package TypeEACH
Package Weight0.3 lb
Package Width1.5 in
SeriesTA Series
Stud Size3/8 in
Temperature Rating90 deg C
Tongue Size1.594 in L x 1.5 in W x 0.312 in THK
Tongue TypeStraight
Type1-Conductor Dual Rated
Type / Style1-Conductor Dual Rated
Voltage Rating2000 V AC
Documents
Applications
Terminating Connector Applications
Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Chamfered wire entry provides ease of installation
- Provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- 1-stud
- Suitable for use with either copper or aluminum conductors
Specifications
1/2 in Hex
