nVent ILSCO CSWS-3-14

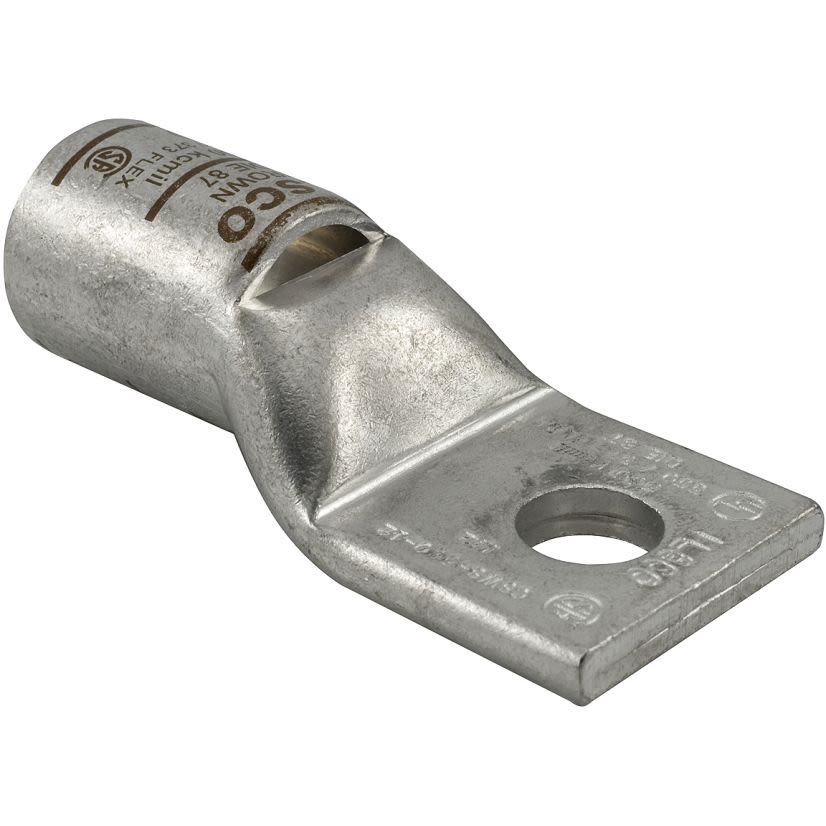

ILSCO SureCrimp CSWS-3-14 CSWS 1-Hole Lug Compression Connector Sight Hole With Sight Hole, 6 to 3 AWG Flex Copper Conductor, Die Code: ILD-29, 1/4 in Stud, Tin Plated Copper
nVent ILSCO CSWS-3-14
ILSCO SureCrimp CSWS-3-14 CSWS 1-Hole Lug Compression Connector Sight Hole With Sight Hole, 6 to 3 AWG Flex Copper Conductor, Die Code: ILD-29, 1/4 in Stud, Tin Plated CopperNon-stock product. Available to order - lead time may vary.
BrandnVent ILSCO
MFG #CSWS-3-14
Werner Part #3953096
UPC783669631692
Non-stock product. Available to order - lead time may vary.
BrandnVent ILSCO
MFG #CSWS-3-14
Werner Part #3953096
UPC783669631692
Product Description
ILSCO SureCrimp Lug Compression Connector Sight Hole, 1-Hole, Series: CSWS, Flex Copper Conductor, 6 to 3 AWG Conductor, Die Code: ILD-29, 600 to 35 kV V AC, 1/4 in Stud, 0.68 in L x 0.532 in W x 0.1 in THK Tongue, 1.56 in Overall Length, Chamfered/Short/Standard Barrel, 0.275 in ID x 0.375 in OD x 0.625 in L Barrel, 0.687 in L Wire Strip, 90 deg C, 0.281 in Mounting Hole, Tin Plated Copper, White, 0.532 in W
Attributes
Documents
Applications
Features
Specifications
Attributes
BABA CompliantYes
Barrel Size0.275 in ID x 0.375 in OD x 0.625 in L
Barrel TypeChamfered/Short/Standard
ColorWhite
Conductor size6 to 3 AWG
Conductor TypeFlex Copper
Country of OriginMX
Die CodeILD-29
Dimensions0.532 in W
ManufacturerECM Industries
MaterialTin Plated Copper
Mounting Hole Type0.281 in
Overall Length1.56 in
Package TypeEACH
SeriesCSWS
Stud Size1/4 in
Temperature Rating90 deg C
Tongue Size0.68 in L x 0.532 in W x 0.1 in THK
Type1-Hole
Type / Style1-Hole
Voltage Rating600 to 35 kV V AC
Documents
Applications
Terminating Connector Applications
Features
- Manufactured from high strength seamless copper tubing, electro-tin plated
- Color coded
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Offers maximum conductivity and excellent crimping characteristics
- Provides low contact resistance
- For easy conductor insertion
- Identifies the proper compression die
- Application versatility
- Reduces inventory requirements
- For grounding and bonding applications
- Chamfered barrel for visual inspection of proper cable insertion
- #4 flexible alternate conductor size
- Electro-tin plated
- Standard barrel length with chamfered entry
Specifications
0.687 in L Wire Strip
