nVent ILSCO CP-500

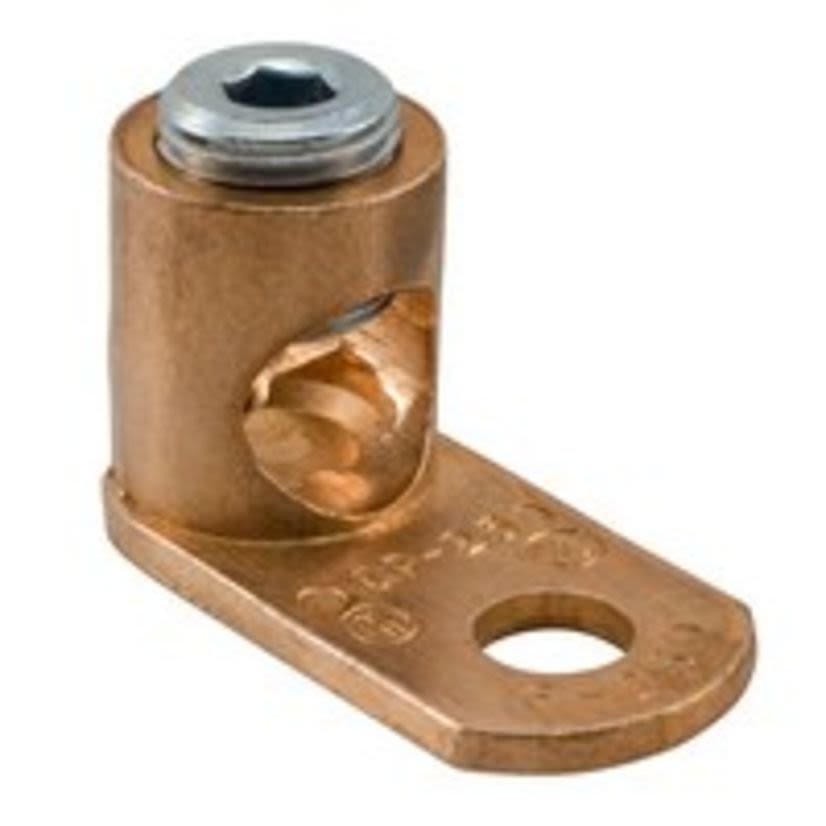

nVent ILSCO CP-500 Type CP Compact Post Connector, 4/0 AWG to 500 kcmil Copper Conductor, 1/2 in Stud, 1 Bolt Hole, Copper
nVent ILSCO CP-500
nVent ILSCO CP-500 Type CP Compact Post Connector, 4/0 AWG to 500 kcmil Copper Conductor, 1/2 in Stud, 1 Bolt Hole, CopperNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
nVent ILSCO ClearChoice® Post Connector, Type CP Compact, Copper Conductor, 4/0 AWG to 500 kcmil Conductor, 1/2 in Stud, 1 Bolt Holes, 1.781 in L x 0.281 in THK Tongue, Straight Tongue, 2000 VAC, Specifications: 3/8 in Hex, 90 deg C, Copper, 2.9688 in L x 1.375 in W x 1.4375 in H Dimensions
Attributes
Documents
Features
Specifications
Attributes
BABA CompliantYes
Conductor size4/0 AWG to 500 kcmil
Conductor TypeCopper
Country of OriginUnited States
Dimensions2.9688 in L x 1.375 in W x 1.4375 in H
ManufacturernVent
MaterialCopper
Number of Bolt Holes1
Temperature Rating90 deg C
Tongue Size1.781 in L x 0.281 in THK
Tongue TypeStraight
TypeType CP Compact
Type / StyleType CP Compact
Voltage Rating2000 VAC
Documents
Features
Re-usableRange taking for reduced inventories and flexibility and permits inventories to be kept to a minimumManufactured from high conductivity copper alloy provides long lasting reliable contactProvides efficient use and flexibility in the fieldEnsures reliability for copper conductorCompact design saves space and reduces installation timeSuitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be usedApplication versatility1-studFor copper conductor only
Specifications
3/8 in Hex
