nVent ILSCO CLWS-250-12

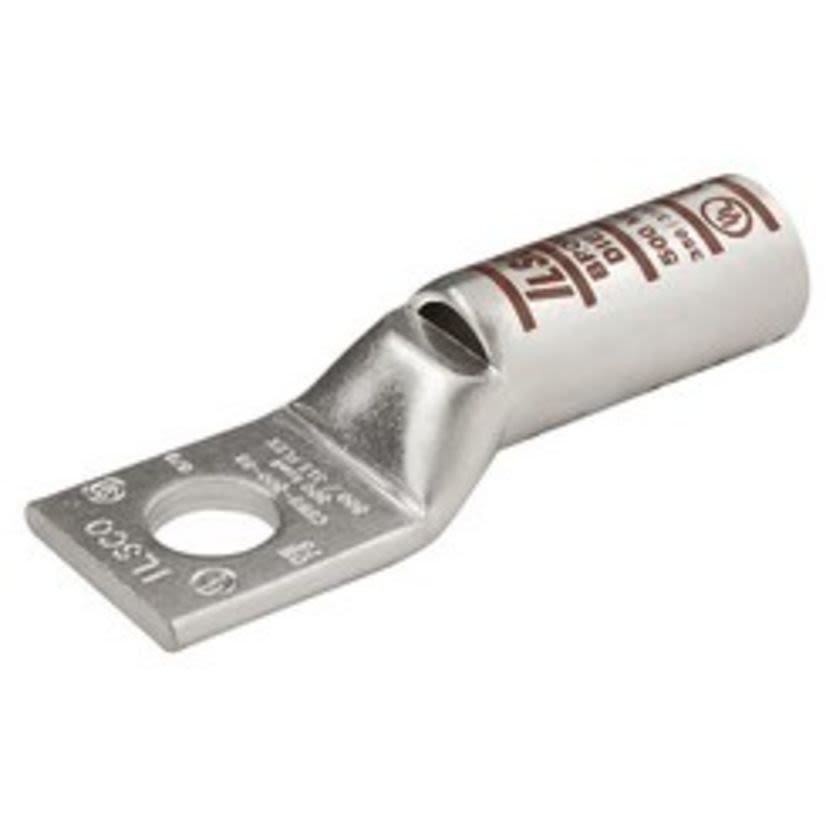

ILSCO SureCrimp CLWS-250-12 CLWS 1-Hole Lug Compression Connector With Sight Hole, 250 kcmil Copper Conductor, Die Code: I-62, 1/2 in Stud
nVent ILSCO CLWS-250-12
ILSCO SureCrimp CLWS-250-12 CLWS 1-Hole Lug Compression Connector With Sight Hole, 250 kcmil Copper Conductor, Die Code: I-62, 1/2 in StudNon-stock product. Available to order - lead time may vary.
BrandnVent ILSCO
MFG #CLWS-250-12
Werner Part #4016684
UPC783669640755
Non-stock product. Available to order - lead time may vary.
BrandnVent ILSCO
MFG #CLWS-250-12
Werner Part #4016684
UPC783669640755
Product Description
ILSCO SureCrimp Lug Compression Connector, 1-Hole, Series: CLWS, Copper Conductor, 250 kcmil Conductor, Die Code: I-62, 600 V AC, 1/2 in Stud, 1.25 in L x 1.088 in W x 0.157 in THK Tongue, 3.469 in Overall Length, Chamfered/Long Barrel, 0.593 in ID x 0.75 in OD x 1.688 in L Barrel, 1-3/4 in L Wire Strip, 90 deg C, 0.562 in Mounting Hole, Yellow, 1.088 in W
Attributes
Documents
Applications
Features
Specifications
Attributes
BABA CompliantYes
Barrel Size0.593 in ID x 0.75 in OD x 1.688 in L
Barrel TypeChamfered/Long
ColorYellow
Conductor size250 kcmil
Conductor TypeCopper
Country of OriginUS
Die CodeI-62
Dimensions1.088 in W
ManufacturerECM Industries
Mounting Hole Type0.562 in
Overall Length3.469 in
Package Height0.75 in
Package Length3.47 in
Package TypeEACH
Package Weight0.17 lb
Package Width1.09 in
SeriesCLWS
Stud Size1/2 in
Temperature Rating90 deg C
Tongue Size1.25 in L x 1.088 in W x 0.157 in THK
Type1-Hole
Type / Style1-Hole
Voltage Rating600 V AC
Applications
For terminating connector
Features
- Manufactured from high strength seamless copper tubing, electro-tin plated
- Color coded
- Offers maximum conductivity and excellent crimping characteristics
- Provides low contact resistance
- For easy conductor insertion
- Identifies the proper compression die
- Application versatility
- Reduces inventory requirements
- Suitable for use in circuits rated 35 kV or less, Proper high voltage spacing and insulation techniques must be used
- Alternate conductor size of 4/0 flexible
- 1/0 AWG to 250 kcmil expanded conductor size
Specifications
1-3/4 in L Wire Strip
