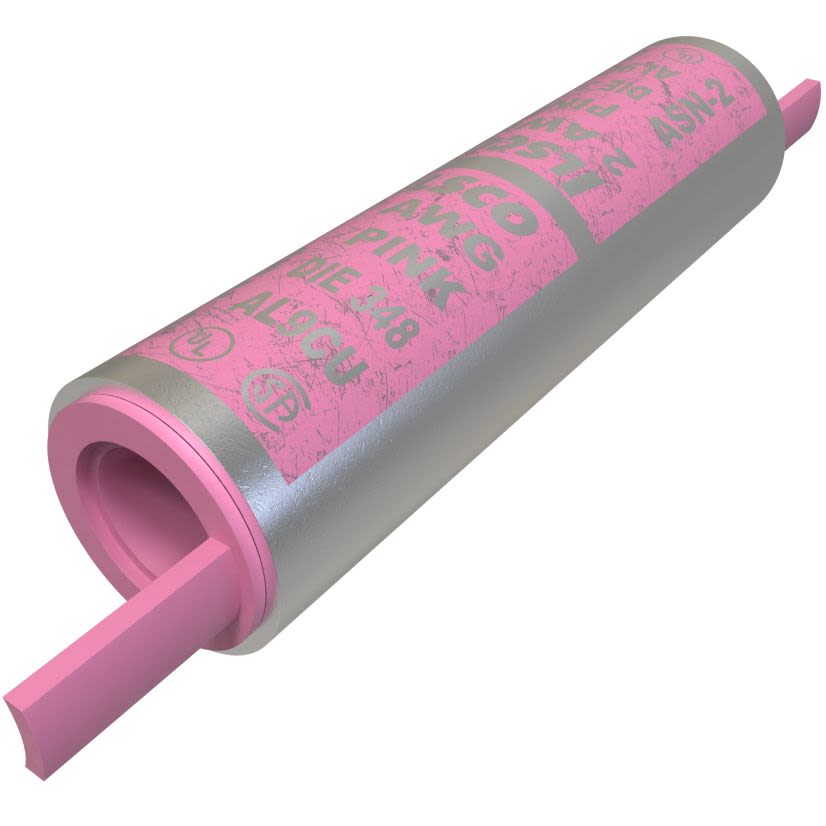

nVent ILSCO ASN-2
ILSCO ClearChoice ASN-2 Type ASN Dual Rated Compression Sleeve, 2 AWG Aluminum/Copper Conductor, Die Code: 348, 1.94 in L, Aluminum
nVent ILSCO ASN-2
ILSCO ClearChoice ASN-2 Type ASN Dual Rated Compression Sleeve, 2 AWG Aluminum/Copper Conductor, Die Code: 348, 1.94 in L, AluminumNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
ILSCO ClearChoice Compression Sleeve, Type ASN Dual Rated, Aluminum/Copper Conductor, 2 AWG Conductor, Die Code: 348, 1.94 in Length, Crimp Connector, 35 kV, 90 deg C, Aluminum, Electro-Plated Tin, Pink, 0.307 in ID x 0.525 in OD
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorPink
Conductor size2 AWG
Conductor TypeAluminum/Copper
Country of OriginMX
Die Code348
Dimensions0.307 in ID x 0.525 in OD
FinishElectro-Plated Tin
ManufacturerECM Industries
MaterialAluminum
Temperature Rating90 deg C
TypeType ASN Dual Rated
Type / StyleType ASN Dual Rated
Voltage Rating35 kV
Applications
For use with splicer and reducer
Features
- Manufactured from high strength aluminum alloy provides maximum conductivity and excellent crimping characteristics, electro-tin plated for low contact resistance
- Chamfered entry for easy conductor insertion, end barrel and pre-filled with DE-OX prevents oxide from forming
- Proper high voltage spacing and insulation techniques must be used, for high voltage applications up to 35 kV
- Roll marked barrel for easy identification and proper location of crimps
- Provides low contact resistance, maximum conductivity and excellent crimping characteristics and versatility
- Provides easy conductor insertion
- Prevents oxides from forming, promotes connector longevity and color coded end cap identifies the proper compression die
- Expanded wire size applicable when installed with specified dieless tools
- Permits inventories to be kept to a minimum
- 6 to 2 AWG expanded conductor size
- Dual-rated for aluminum and copper conductor
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|CSA File No. LR-29601|UL 486A-B File No. E6207 453G|ECCN EAR99|PROP65: Cancer - www.p65warnings.ca.gov
