IDEAL 89-408

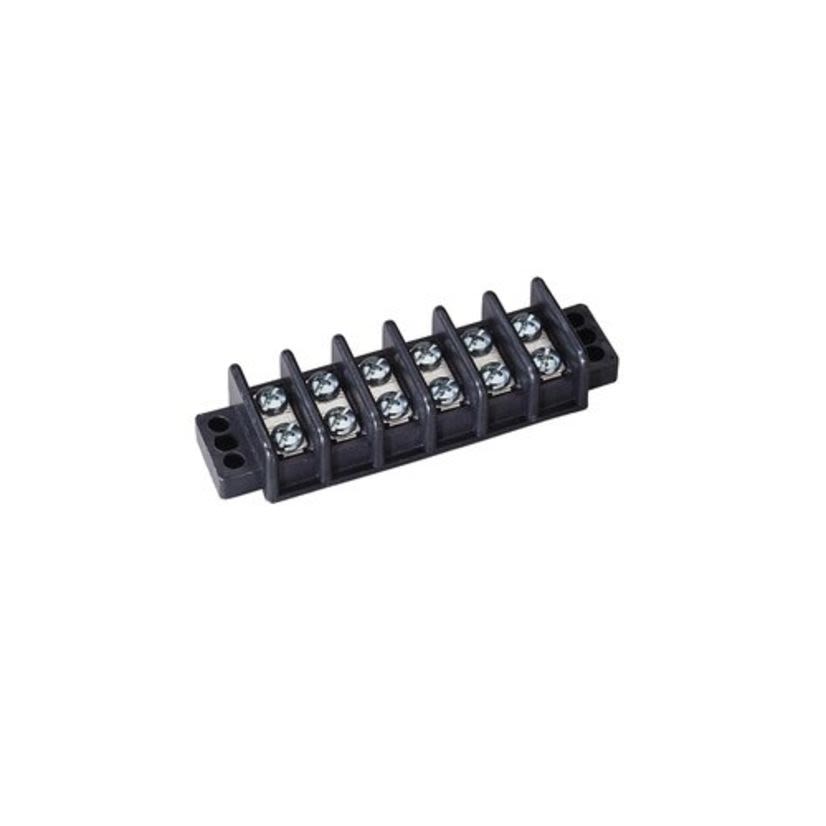

IDEAL 89-408 Double Row Terminal Strip, 250 V AC, 20 A, 22 to 12 AWG Wire
IDEAL 89-408
IDEAL 89-408 Double Row Terminal Strip, 250 V AC, 20 A, 22 to 12 AWG WireNon-stock product. Available to order - lead time may vary.
BrandIDEAL
MFG #89-408
Werner Part #1322781
UPC783250894086
Non-stock product. Available to order - lead time may vary.
BrandIDEAL
MFG #89-408
Werner Part #1322781
UPC783250894086
Product Description
IDEAL Terminal Strip, Double Row, 250 V AC, 20 A, 8 Terminals, 22 to 12 AWG Wire, 0.437 in Center Spacing, #8 Screw, 9 in-lb Torque, Surface Mounting, #6-32 Philslot Screw Connection, -40 to 260 deg F, Polyester Thermoplastic/Steel, 4.25 in L x 1.12 in W x 0.56 in H Dimensions
Attributes
Documents
Features
Specifications
Attributes
Connection Type#6-32 Philslot Screw
Country of OriginUS
Dimensions4.25 in L x 1.12 in W x 0.56 in H
ManufacturerIdeal Industries
MaterialPolyester Thermoplastic/Steel
Mounting TypeSurface
Series89-400
Size of Wire22 to 12 AWG
Temperature Rating-40 to 260 deg F
TypeDouble Row
Type / StyleDouble Row
Voltage Rating250 V AC
Features
- Accepts wire sizes from 12 through 22 AWG Cu
- Heavy-duty, corrosion-resistant screws, surface plates, and optional hardware
Specifications
Standards/Approvals: ARRA Compliant|Buy American Act Compliant|RoHS Compliant|CSA File No. LR15364|UL File No. E82048|UL Recognized File No. E62622|UL94 V-0 Flammability Rating
