IDEAL 30-654

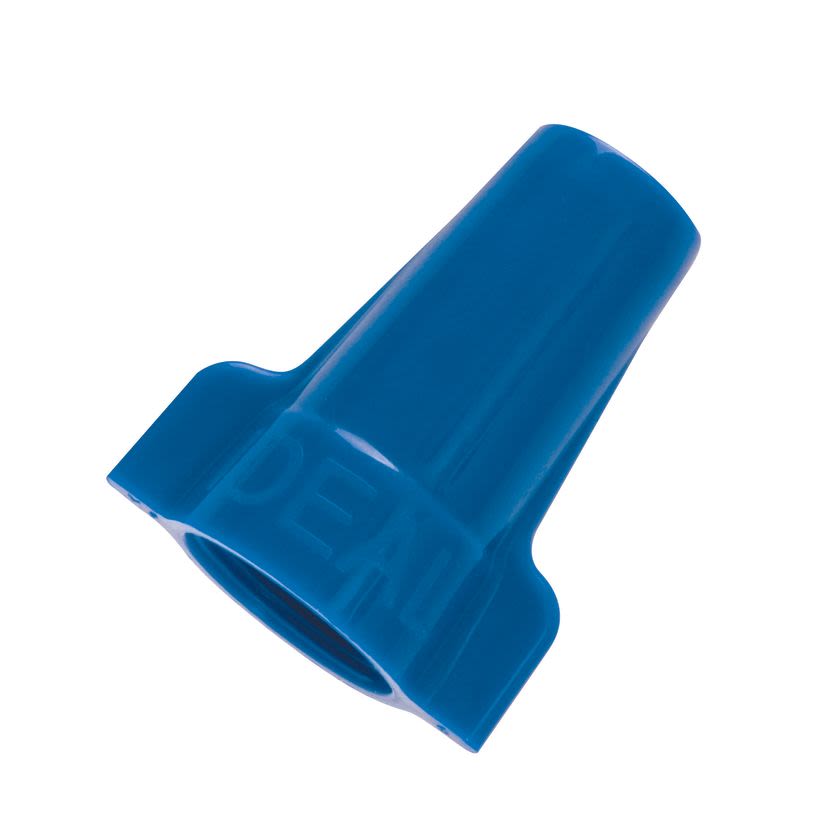

IDEAL Wing-Nut 30-654 454 Flame-Retardant Wire Connector, Winged Shell, Live Action/Square Wire Spring, 14 to 6 AWG Solid/Stranded Wire, Polypropylene
IDEAL 30-654
IDEAL Wing-Nut 30-654 454 Flame-Retardant Wire Connector, Winged Shell, Live Action/Square Wire Spring, 14 to 6 AWG Solid/Stranded Wire, PolypropyleneIn Stock: 1000more info
|
BrandIDEAL
MFG #30-654
Werner Part #40253
UPC783250306541
In Stock: 1000more info
|
BrandIDEAL
MFG #30-654
Werner Part #40253
UPC783250306541
Product Description
IDEAL Wing-Nut Wire Connector, Flame-Retardant, Series: 454, Winged Shell Style, Live Action/Square Wire Spring, Solid/Stranded Wire, 14 to 6 AWG Wire, 600 V AC, Specifications: 7/8 in Solid/Stranded Wire Strip, 1 to 6 Conductors, 12 to 3 AWG Minimum, 6 to 1 AWG with 8 to 2 AWG Maximum Conductor Combination Size, 221 deg F, Polypropylene, Blue, Zinc Plated, 0.78 in Dia x 1.2 in W x 1.45 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorBlue
Country of OriginUS
Dimensions0.78 in Dia x 1.2 in W x 1.45 in H
FinishZinc Plated
ManufacturerIdeal Industries
MaterialPolypropylene
Package Height2 in
Package Length11 in
Package Volume198 cu-in
Package Weight1.88 lb
Package Width9 IN
Series454
Size of Wire14 to 6 AWG
Spring TypeLive Action/Square Wire
Temperature Rating221 deg F
TypeFlame-Retardant
Type / StyleFlame-Retardant
Type of WireSolid/Stranded
Voltage Rating600 V AC
Applications
For insulating or joining two or more conductor and wire termination/connection
Features
- High-leverage, contoured wing provides superior torque on every twist
- Wide range, live-action spring handles small combinations and expands to accommodate large combinations as you need it
- Copolymer shell expands for smooth, progressive tightening providing dependable connections
- Removable for repeat usage on same size or larger combinations
Specifications
7/8 in Solid/Stranded Wire Strip, 1 to 6 Conductors, 12 to 3 AWG Minimum, 6 to 1 AWG with 8 to 2 AWG Maximum Conductor Combination Size
