IDEAL 30-451

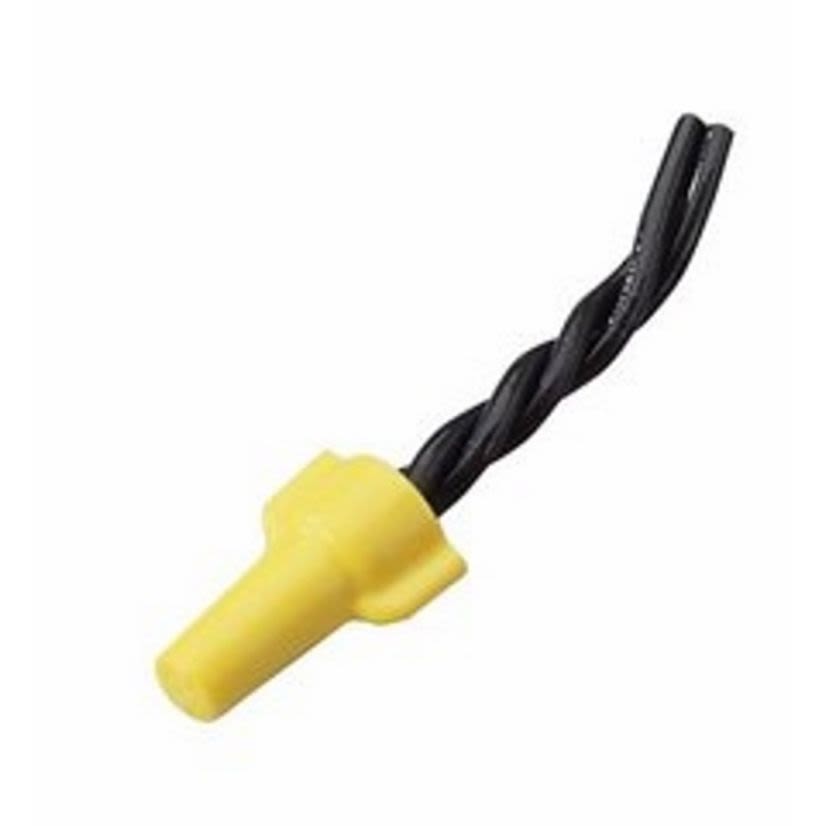

IDEAL Wing-Nut 30-451 451 Flame-Retardant Wire Connector, Winged Shell, Live Action/Square Wire Spring, 18 to 10 AWG Solid/Stranded Wire, Polypropylene
IDEAL 30-451
IDEAL Wing-Nut 30-451 451 Flame-Retardant Wire Connector, Winged Shell, Live Action/Square Wire Spring, 18 to 10 AWG Solid/Stranded Wire, PolypropyleneIn Stock: 4400more info
|
In Stock: 4400more info
|
Product Description
IDEAL Wing-Nut Wire Connector, Flame-Retardant, Series: 451, Winged Shell Style, Live Action/Square Wire Spring, Solid/Stranded Wire, 18 to 10 AWG Wire, 600 V AC, Specifications: 3/8 in Solid/Stranded Wire Strip, 1 to 6 Conductors, 18 to 2 AWG Minimum, 12 to 3 AWG Maximum Conductor Combination Size, 221 deg F, Polypropylene, Yellow, Zinc Plated, 0.48 in Dia x 1.015625 in W x 0.6875 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorYellow
Country of OriginUS
Dimensions0.48 in Dia x 1.015625 in W x 0.6875 in H
FinishZinc Plated
ManufacturerIdeal Industries
MaterialPolypropylene
Package Height3 in
Package Length4 in
Package TypeEACH
Package Weight0.45 lb
Package Width3.5 IN
Series451
Size of Wire18 to 10 AWG
Spring TypeLive Action/Square Wire
Temperature Rating221 deg F
TypeFlame-Retardant
Type / StyleFlame-Retardant
Type of WireSolid/Stranded
Voltage Rating600 V AC
Applications
For insulating or joining two or more conductor and wire termination/connection
Features
- High-leverage, contoured wing provides superior torque on every twist
- Wide range, live-action spring handles small combinations and expands to accommodate large combinations as you need it
- Copolymer shell expands for smooth, progressive tightening providing dependable connections
- Removable for repeat usage on same size or larger combinations
Specifications
3/8 in Solid/Stranded Wire Strip, 1 to 6 Conductors, 18 to 2 AWG Minimum, 12 to 3 AWG Maximum Conductor Combination Size
