IDEAL 30-1163
IDEAL WEATHERPROOF 30-1163 63 Series Wire Connector, Winged Shell, Live Action/Square Wire Spring, 16 to 6 AWG Solid/Stranded Copper Wire, Thermoplastic Polyester
IDEAL 30-1163
IDEAL WEATHERPROOF 30-1163 63 Series Wire Connector, Winged Shell, Live Action/Square Wire Spring, 16 to 6 AWG Solid/Stranded Copper Wire, Thermoplastic PolyesterIn Stock: 495more info
|
BrandIDEAL
MFG #30-1163
Werner Part #3991534
UPC783250758166
In Stock: 495more info
|
BrandIDEAL
MFG #30-1163
Werner Part #3991534
UPC783250758166
Product Description
IDEAL WEATHERPROOF Wire Connector, Series: 63 Series, Winged Shell Style, Live Action/Square Wire Spring, Solid/Stranded Copper Wire, 16 to 6 AWG Wire, 600 V AC, Specifications: 5/8 in Wire Strip, (3) 14 AWG Minimum, (2) 8 AWG, (1) 10 AWG Maximum Conductor Combination Size, 105 deg C, Thermoplastic Polyester, Gray, 0.81 in Dia x 1.0625 in W x 1.59375 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorGray
Country of OriginUS
Dimensions0.81 in Dia x 1.0625 in W x 1.59375 in H
ManufacturerIdeal Industries
MaterialThermoplastic Polyester
Package Height1.75 in
Package Length6.75 in
Package TypeEACH
Package Weight0.27 lb
Package Width5 in
Series63 Series
Size of Wire16 to 6 AWG
Spring TypeLive Action/Square Wire
Temperature Rating105 deg C
Type / StyleModel 63 Connector
Type of WireSolid/Stranded Copper
Voltage Rating600 V AC
Applications
Automatic Carwashes, Basement, Bathroom or Spa Vent Fans, Car Port Circuits, Garage, Decorative Patio and Deck Lighting, Exterior Area, Security Lighting, Industrial Hosedown or Washdown, Marine Shore Power and Dock Lighting, Outdoor Power Outlets, Outdoor Signage and Traffic Signal Control Circuits Applications
Features
- 100% Silicone-based sealant protects against moisture and corrosion
- Swept wing design is built for comfort and efficiency
- Eliminates the need for heat-shrink or excessive taping

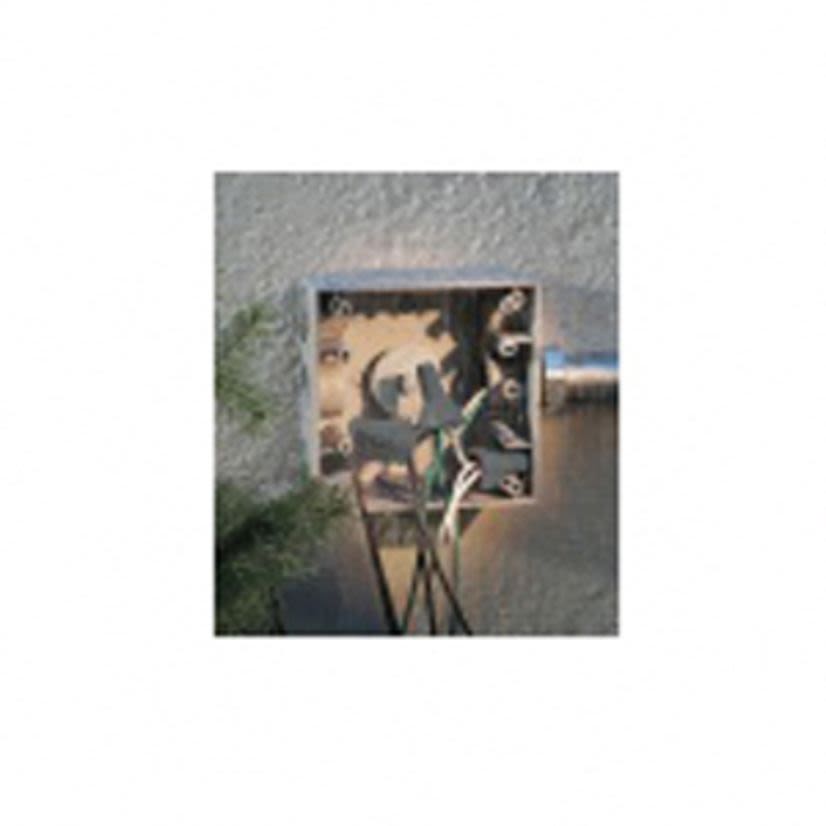

- Designed specifically for above-grade, interior or exterior connections exposed to damp, wet or corrosive environments, WeatherProof Wire Connectors are the perfect twist-on solution for connections that require protection from the elements
Specifications
5/8 in Wire Strip, (3) 14 AWG Minimum, (2) 8 AWG, (1) 10 AWG Maximum Conductor Combination Size
