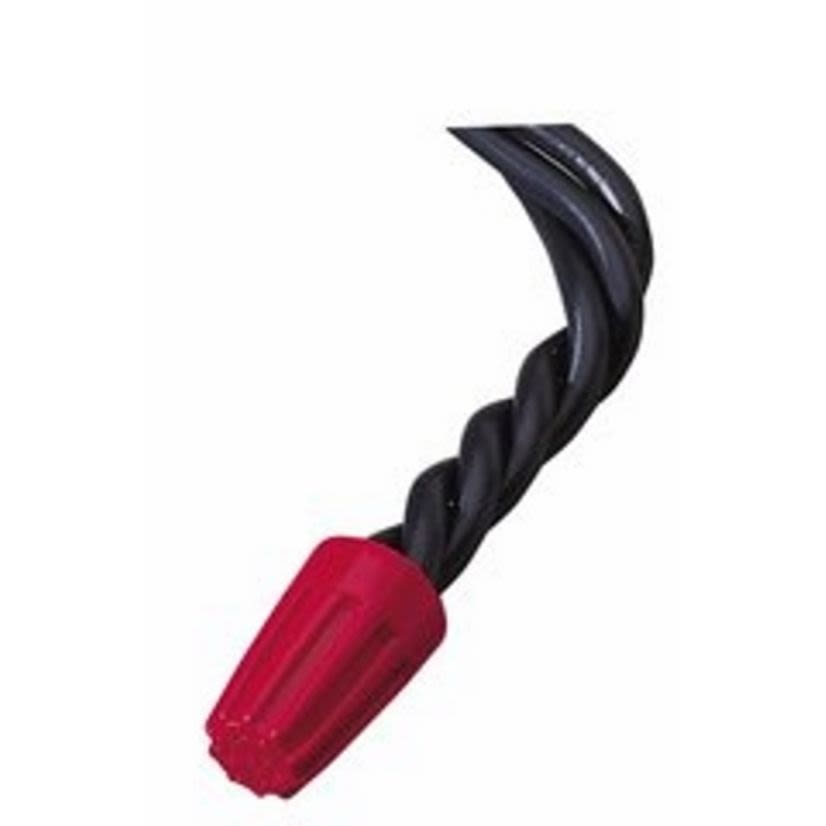

IDEAL 30-076
IDEAL 30-076 76B Flame-Retardant Wire Connector, Positive Grip Shell, Fixed/Square Wire Spring, 18 to 12 AWG Wire Solid/Stranded Copper Wire, Polypropylene
IDEAL 30-076
IDEAL 30-076 76B Flame-Retardant Wire Connector, Positive Grip Shell, Fixed/Square Wire Spring, 18 to 12 AWG Wire Solid/Stranded Copper Wire, PolypropyleneIn Stock: 16600more info
|
BrandIDEAL
MFG #30-076
Werner Part #40174
UPC783250300761
In Stock: 16600more info
|
BrandIDEAL
MFG #30-076
Werner Part #40174
UPC783250300761
Product Description
IDEAL, 30-076, Wire Connector, Flame-Retardant, Series: 76B, Positive Grip Shell Style, Fixed/Square Wire Spring, Solid/Stranded Copper Wire, 18 to 12 AWG Wire, 600 V AC, Specifications: 1/2 in Solid, 7/16 in Stranded Wire Strip, 1 to 6 Conductors, 18 to 2 AWG Minimum, 14 to 4 AWG with 18 to 1 AWG Maximum Conductor Combination Size, 221 deg F, Polypropylene, Red, Zinc Plated, 9/32 in W x 1-1/16 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorRed
Country of OriginUS
Dimensions9/32 in W x 1-1/16 in H
FinishZinc Plated
ManufacturerIdeal Industries
MaterialPolypropylene
Package Height3.5 in
Package Length5.5 in
Package Volume67.37 cu-in
Package Weight0.93 lb
Package Width3.5 IN
Series76B
Size of Wire18 to 12 AWG
Spring TypeFixed/Square Wire
Temperature Rating221 deg F
TypeFlame-Retardant
Type / StyleFlame-Retardant
Type of WireSolid/Stranded Copper
Voltage Rating600 V AC
Documents
Applications
For insulating or joining two or more conductor
Features
- The IDEAL Wire-Nut Wire Connector set new standards for innovation, quality and convenience when it was first introduced in 1928
- With a fixed, square-wire spring and a positive grip shell, the Wire-Nut is perfect to twist-on with fingers for a secure connection that will last
- The Wire-Nut also features a tough, flame-retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition
- With five color-coded models available, Wire-Nut Wire Connectors will handle any job from as small as 22 ga wire up to 6 ga wire
Specifications
1/2 in Solid, 7/16 in Stranded Wire Strip, 1 to 6 Conductors, 18 to 2 AWG Minimum, 14 to 4 AWG with 18 to 1 AWG Maximum Conductor Combination Size
