IDEAL 30-071

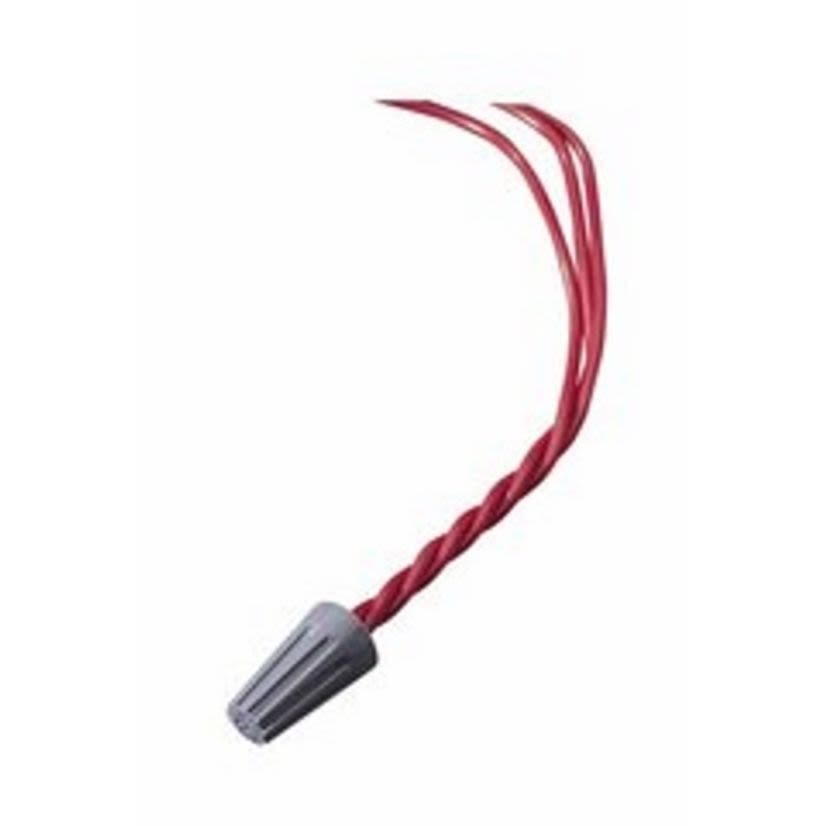

IDEAL 30-071 71B Flame-Retardant Wire Connector, Positive Grip Shell, Fixed/Square Wire Spring, 22 to 16 AWG Wire Solid/Stranded Copper Wire, Polypropylene
IDEAL 30-071
IDEAL 30-071 71B Flame-Retardant Wire Connector, Positive Grip Shell, Fixed/Square Wire Spring, 22 to 16 AWG Wire Solid/Stranded Copper Wire, PolypropyleneIn Stock: 1800more info
|
BrandIDEAL
MFG #30-071
Werner Part #40168
UPC783250300716
In Stock: 1800more info
|
BrandIDEAL
MFG #30-071
Werner Part #40168
UPC783250300716
Product Description
IDEAL, 30-071, Wire Connector, Flame-Retardant, Series: 71B, Positive Grip Shell Style, Fixed/Square Wire Spring, Solid/Stranded Copper Wire, 22 to 16 AWG Wire, 300 V AC, Specifications: 1/4 in Solid, 5/16 in Stranded Wire Strip, 1 to 5 Conductors, 16 to 2 AWG Minimum, 16 to 2 AWG Maximum Conductor Combination Size, 221 deg F, Polypropylene, Gray, Zinc Plated, 21/64 in W x 37/64 in H Dimensions
Attributes
Documents
Applications
Features
Specifications
Attributes
ColorGray
Country of OriginUS
Dimensions21/64 in W x 37/64 in H
FinishZinc Plated
ManufacturerIdeal Industries
MaterialPolypropylene
Package Height2 in
Package Length4.5 in
Package Volume22.5 cu-in
Package Weight0.16 lb
Package Width2.5 in
Series71B
Size of Wire22 to 16 AWG
Spring TypeFixed/Square Wire
Temperature Rating221 deg F
TypeFlame-Retardant
Type / StyleFlame-Retardant
Type of WireSolid/Stranded Copper
Voltage Rating300 V AC
Documents
Applications
For insulating or joining two or more conductor
Features
- The IDEAL Wire-Nut Wire Connector set new standards for innovation, quality and convenience when it was first introduced in 1928
- With a fixed, square-wire spring and a positive grip shell, the Wire-Nut is perfect to twist-on with fingers for a secure connection that will last
- The Wire-Nut also features a tough, flame-retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition
- With five color-coded models available, Wire-Nut Wire Connectors will handle any job from as small as 22 ga wire up to 6 ga wire
Specifications
1/4 in Solid, 5/16 in Stranded Wire Strip, 1 to 5 Conductors, 16 to 2 AWG Minimum, 16 to 2 AWG Maximum Conductor Combination Size
