Honeywell 22141009

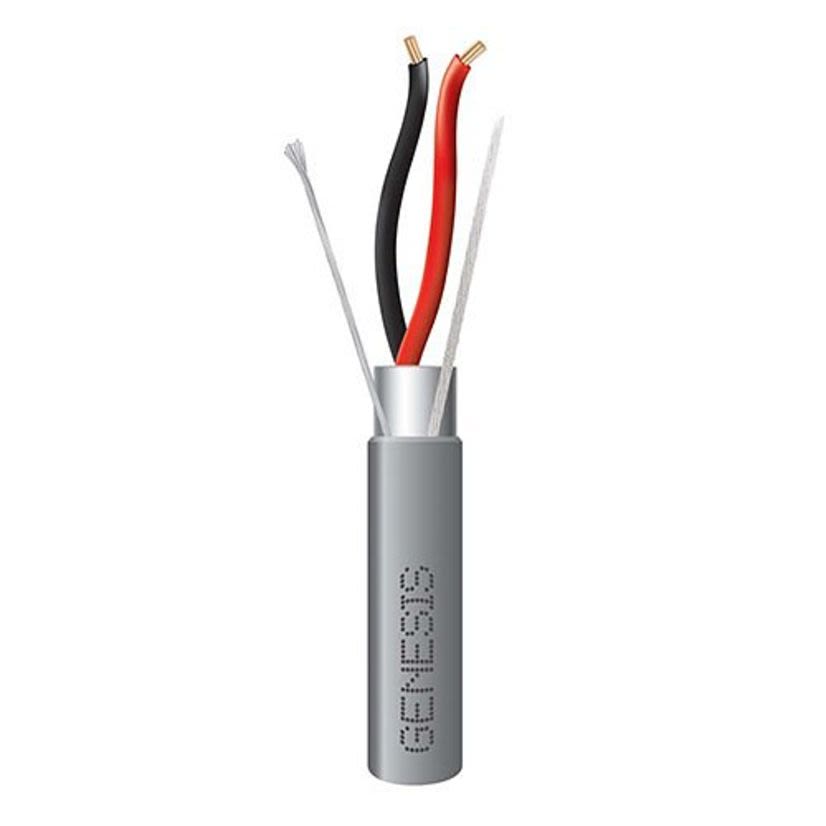

Southwire Genesis Cable 22141009 Genesis Type CMR/CL2R/FT4 Shielded Low Voltage Cable, Reel Packaging, 300 V AC, (2) 18 AWG Bare Stranded Copper Conductor, 1000 ft L
Honeywell 22141009
Southwire Genesis Cable 22141009 Genesis Type CMR/CL2R/FT4 Shielded Low Voltage Cable, Reel Packaging, 300 V AC, (2) 18 AWG Bare Stranded Copper Conductor, 1000 ft LNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Southwire Genesis Cable Low Voltage Cable, Type CMR/CL2R/FT4 Shielded, Series: Genesis, Reel Packaging, 300 V AC, 2 Conductors, Bare Stranded Copper Conductor, 18 AWG Conductor, 0.154 in OD, 1000 ft Length, Bare Wire End Style, 19/0.0092 Strands, 6.5 Ohm Resistance, Polypropylene Insulation, PVC Jacket, Gray Jacket, -20 to 60 deg C
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size18 AWG
Conductor TypeBare Stranded Copper
Country of OriginUS
Insulation MaterialPolypropylene
Jacket ColorGray
Jacket MaterialPVC
Length1000 ft
ManufacturerSouthwire Company
Number of Conductors2
Outside Diameter0.154 in
Package Height7.25 in
Package Length11.75 in
Package Weight17.36 lb
Package Width11.75 in
Resistance6.5 Ohm
Strands19/0.0092
Type / StyleType CMR/CL2R/FT4 Shielded
Voltage300 VAC
Applications
Burglar Alarm, Intercom, Phone and Speakers
Features
- 42 pF/ft nominal capacitance
- 37 Ohm nominal impedance
- UL 1666 (riser), CSA C22.2 No. 2556 (FT4) flame rating
- 0.015 in nominal jacket thickness
- 0.058 in nominal insulation diameter
- 0.006 in nominal insulation thickness
- Black/red color
- 2-1/2 in nominal lay length
- 24 AWG 7/32 tinned copper drain wire
- Aluminum mylar tape shield
- Reel package
- 6.5 Ohm/M at 20 deg C resistance
Specifications
Standards/Approvals: UL Standards 13, 444, NEC Articles 725, 800, CSA C22.2 No. 214
