Honeywell 21961002

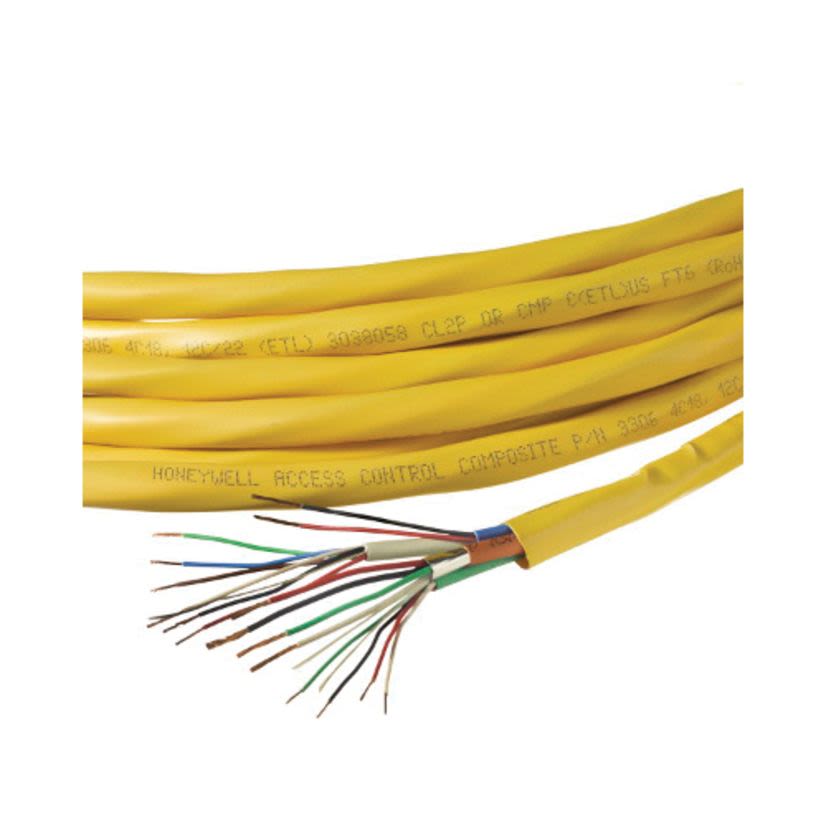

Resideo 21961002 Genesis Overall Jacket Access Control Cable, Reel Packaging, 300 V AC, (16 Pairs) 18/22 AWG, 1000 ft L
Honeywell 21961002
Resideo 21961002 Genesis Overall Jacket Access Control Cable, Reel Packaging, 300 V AC, (16 Pairs) 18/22 AWG, 1000 ft LNon-stock product. Available to order - lead time may vary.
BrandHoneywell
MFG #21961002
Werner Part #4045964
UPC886618199325
Non-stock product. Available to order - lead time may vary.
BrandHoneywell
MFG #21961002
Werner Part #4045964
UPC886618199325
Product Description
Resideo Access Control Cable, Overall Jacket, Series: Genesis, Reel Packaging, 300 V AC, 16 Pairs Conductors, 18/22 AWG Conductor, 0.35 in OD, 1000 ft Length, 6.5/16.5 Ohm Resistance, PVC Insulation, PVC Jacket, Yellow Jacket, -20 to 60 deg C
Attributes
Features
Attributes
Conductor size18/22 AWG
Insulation MaterialPVC
Jacket ColorYellow
Jacket MaterialPVC
Length1000 ft
ManufacturerResideo Technologies
Number of Conductors16 Pairs
Outside Diameter0.35 in
Package Weight80 lb
Resistance6.5/16.5 Ohm
Type / StyleOverall Jacket
Voltage300 VAC
Features
- The overall jacket on our access control cables prevents damage to the internal cable while the easy-to strip jacket allows for quick and efficient installation
- An overall jacket allows for cables to bend around corners and obstructions, enabling smooth and snagless pulls
- Sequential footage markings provide countdowns from 1000 ft and 500 ft, this provides an installer an immediate and exact view of unused cable, reducing material waste
- Performance tested after bundling
- 28 pf ft (18 AWG), 22/47 pf ft (22 AWG unshielded/shielded) capacitance
- 18/4 stranded door strike cable, 22/6 stranded overall shield card reader, 22/2 stranded door contact, 22/4 stranded request-to-exit
- Four individually jacketed riser cables, with an overall riser jacket
- Conductor grouping separated and identified using uniquely colored jackets
- Includes wiring for door strike, card reader, door contact, and request for exit (REX)
