Honeywell 21151109

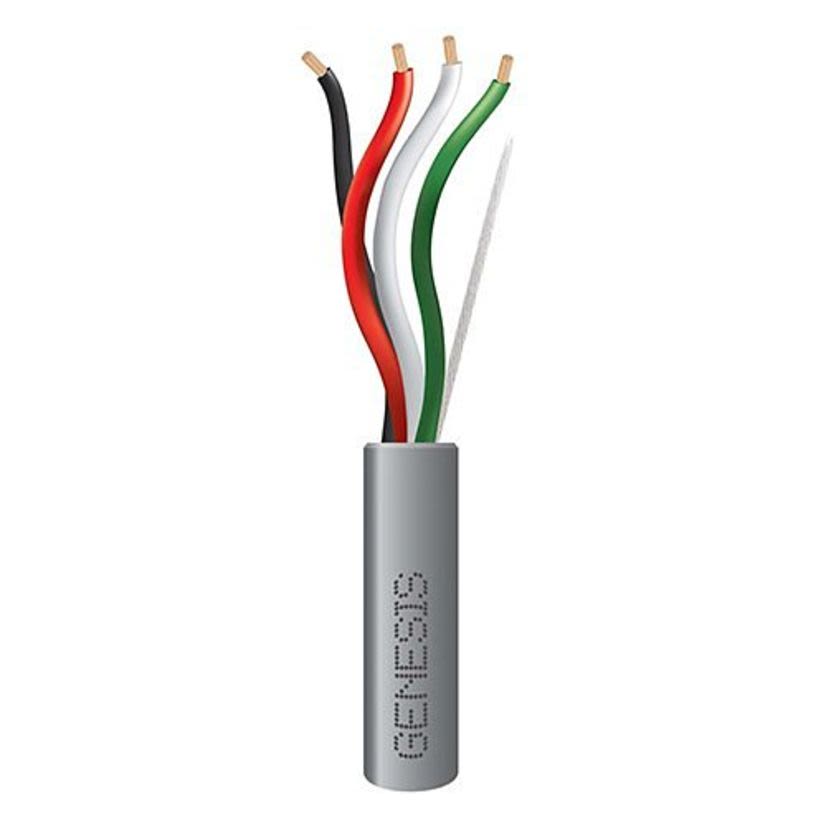

Southwire Genesis Cable 21151109 Genesis Type CMR/CL2R/FT4 Unshielded Low Voltage Cable, Pull Box Packaging, 300 V AC, (4) 18 AWG Bare Stranded Copper Conductor, 1000 ft L
Honeywell 21151109
Southwire Genesis Cable 21151109 Genesis Type CMR/CL2R/FT4 Unshielded Low Voltage Cable, Pull Box Packaging, 300 V AC, (4) 18 AWG Bare Stranded Copper Conductor, 1000 ft LNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Southwire Genesis Cable Low Voltage Cable, Type CMR/CL2R/FT4 Unshielded, Series: Genesis, Pull Box Packaging, 300 V AC, 4 Conductors, Bare Stranded Copper Conductor, 18 AWG Conductor, 0.058 in OD, 1000 ft Length, Bare Wire End Style, 19/0.0092 Strands, 6.5 Ohm Resistance, Polypropylene Insulation, PVC Jacket, Gray Jacket, -20 to 60 deg C
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size18 AWG
Conductor TypeBare Stranded Copper
Country of OriginUS
Insulation MaterialPolypropylene
Jacket ColorGray
Jacket MaterialPVC
Length1000 ft
ManufacturerSouthwire Company
Number of Conductors4
Outside Diameter0.058 in
Package Height13 in
Package Length13 IN
Package Weight27.3 lb
Package Width7.75 in
Resistance6.5 Ohm
Strands19/0.0092
Type / StyleType CMR/CL2R/FT4 Unshielded
Voltage300 VAC
Applications
Burglar Alarm, Intercom, Phone and Speakers
Features
- 15 pF/ft nominal capacitance
- 100 Ohm nominal impedance
- UL 1666 (riser), CSA C22.2 No. 2556 (FT4) flame rating
- 0.015 in nominal jacket thickness
- 0.058 in nominal insulation diameter
- 0.006 in nominal insulation thickness
- Black/red/white/green color
- 4-1/2 in nominal lay length
- Speed Box pull box package
- 6.5 Ohm/M at 20 deg C resistance
Specifications
Standards/Approvals: UL Standards 13, 444, NEC Articles 725, 800, CSA C22.2 No. 214
