Honeywell 21021109

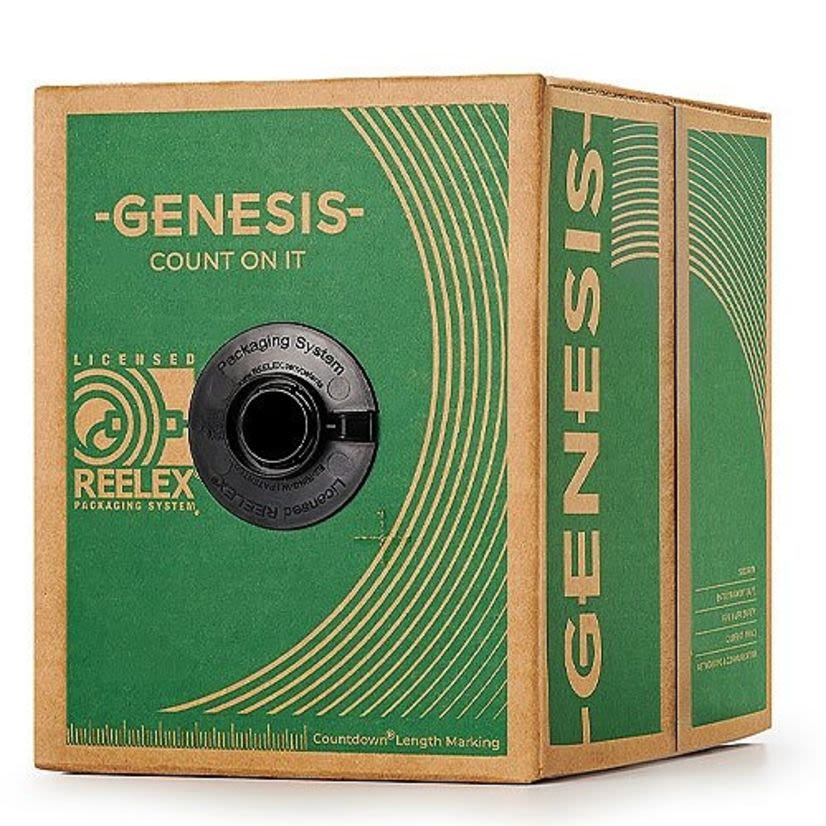

Genesis Cable 21021109 Genesis Type CMR/CL2R/FT4 Unshielded Low Voltage Cable, Pull Box Packaging, 300 V AC, (2) 22 AWG Bare Stranded Copper Conductor, 1000 ft L
Honeywell 21021109
Genesis Cable 21021109 Genesis Type CMR/CL2R/FT4 Unshielded Low Voltage Cable, Pull Box Packaging, 300 V AC, (2) 22 AWG Bare Stranded Copper Conductor, 1000 ft LNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
Genesis Cable Low Voltage Cable, Type CMR/CL2R/FT4 Unshielded, Series: Genesis, Pull Box Packaging, 300 V AC, 2 Conductors, Bare Stranded Copper Conductor, 22 AWG Conductor, 0.042 in OD, 1000 ft Length, Bare Wire End Style, 16.5 Ohm Resistance, Polypropylene Insulation, PVC Jacket, Gray Jacket, -20 to 60 deg C
Attributes
Documents
Applications
Features
Specifications
Attributes
Conductor size22 AWG
Conductor TypeBare Stranded Copper
Country of OriginUS
Insulation MaterialPolypropylene
Jacket ColorGray
Jacket MaterialPVC
Length1000 ft
ManufacturerSouthwire Company
Number of Conductors2
Outside Diameter0.042 in
Package Height9.25 in
Package Length9.25 IN
Package Weight9.31 lb
Package Width7 in
Resistance16.5 Ohm
Type / StyleType CMR/CL2R/FT4 Unshielded
Voltage300 VAC
Applications
Burglar Alarm, Intercom, Phone and Speakers
Features
- 15 pF/ft nominal capacitance
- 100 Ohm nominal impedance
- UL 1666 (riser), CSA FT4 flame rating
- 0.015 in nominal jacket thickness
- 0.042 in nominal insulation diameter
- 0.006 in nominal insulation thickness
- Black/red color
- Speed Box pull box package
- 16.5 Ohm/M at 20 deg C resistance
Specifications
Standards/Approvals: UL Standards 13, 444, NEC Articles 725, 800
