nVent HOFFMAN T200216G150

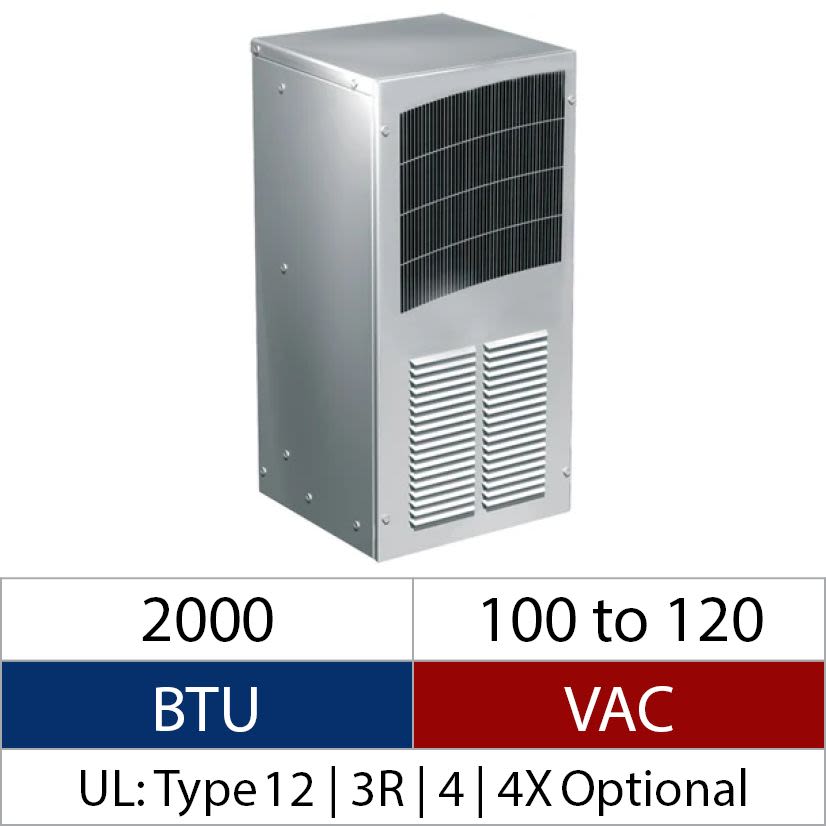

nVent HOFFMAN T200216G150 MCL Compact Outdoor Sealed Enclosure Air Conditioner With Heat Package, 100 to 120 V AC, 7 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 2000 Btu/hr
nVent HOFFMAN T200216G150
nVent HOFFMAN T200216G150 MCL Compact Outdoor Sealed Enclosure Air Conditioner With Heat Package, 100 to 120 V AC, 7 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 2000 Btu/hrNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
nVent HOFFMAN Sealed Enclosure Air Conditioner, Compact Outdoor, Series: MCL, 100 to 120 V AC, 7 A, 586 W Power, 50/60 Hz Frequency, 2000 Btu/hr Capacity, NEMA 3R/4/12 Enclosure, Mechanical Thermostat Control, Plug Connection, -40 to 131 deg F, Sheet Metal, Gray, 2 x 2 x 2 in Dimensions
Attributes
Documents
Applications
Features
Included
Attributes
Amps7 A
BABA CompliantYes
Capacity Range2000 Btu/hr
ColorGray
Connection TypePlug
Control TypeMechanical Thermostat
Country of OriginUS
Dimensions2 x 2 x 2 in
Enclosure TypeNEMA 3R/4/12
Frequency Rating50/60 Hz
Hoffman On DemandHoffman On Demand Product
ManufacturernVent
MaterialSheet Metal
Package Height23.4 in
Package Length14 in
Package TypePIECE
Package Volume4354.56 cu-in
Package Weight47.1 lb
Package Width14 in
Power Rating586 W
SeriesMCL
Temperature Rating-40 to 131 deg F
TypeCompact Outdoor
Type / StyleSealed Enclosure
Voltage Rating100 to 120 V AC
Documents
Applications
Industrial Automation, Telecommunications Equipment, Package Handling Equipment, Security and Defense System Applications
Features
- Compact footprint to minimize real estate and maximize capacity
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
- Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
- Dual condenser-side air movers for performance redundancy
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Exterior and fully recessed mounting options on many models
- Easy-mount flanges for simple installation
Included
Mounting Hardware, Gasket, User Manual, Thermostat, Malfunction Switch, Compressor Heater, Head Pressure Control, Enclosure Heater and Corrosion Resistant Components
