nVent HOFFMAN T150116G100

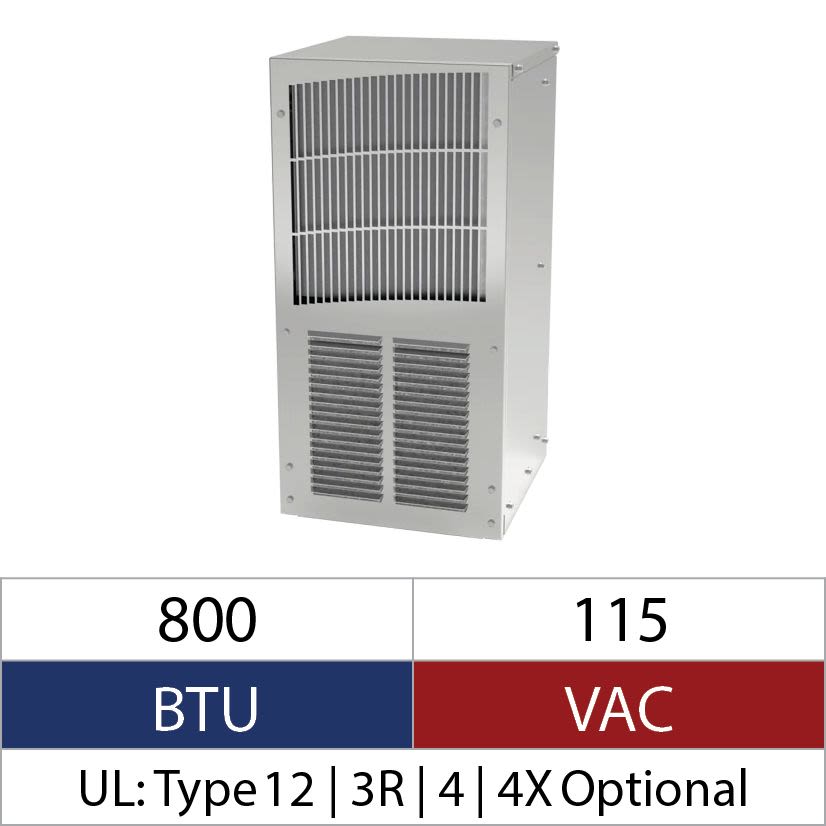

nVent HOFFMAN T150116G100 MCL 1-Phase Compact Outdoor Sealed Enclosure Air Conditioner, 100/115 V AC, 3.6/3.8 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 800 Btu/hr
nVent HOFFMAN T150116G100
nVent HOFFMAN T150116G100 MCL 1-Phase Compact Outdoor Sealed Enclosure Air Conditioner, 100/115 V AC, 3.6/3.8 A, 50/60 Hz, NEMA 3R/4/12 Enclosure, 800 Btu/hrNon-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #T150116G100
Werner Part #2593269
UPC783510163914
Non-stock product. Available to order - lead time may vary.
BrandnVent HOFFMAN
MFG #T150116G100
Werner Part #2593269
UPC783510163914
Product Description
nVent HOFFMAN Sealed Enclosure Air Conditioner, 1-Phase Compact Outdoor, Series: MCL, 100/115 V AC, 3.6/3.8 A, 235 W Power, 50/60 Hz Frequency, 800 Btu/hr Capacity, NEMA 3R/4/12 Enclosure, Mechanical Thermostat Control, Plug Connection, -40 to 131 deg F, Side Mounting, Sheet Metal, Light Gray, 15.75 in H x 7.5 in W x 6.3 in D Dimensions
Attributes
Documents
Applications
Included
Features
Specifications
Attributes
Amps3.6/3.8 A
BABA CompliantYes
Capacity Range800 Btu/hr
ColorLight Gray
Connection TypePlug
Control TypeMechanical Thermostat
Country of OriginMX
Dimensions15.75 in H x 7.5 in W x 6.3 in D
Enclosure TypeNEMA 3R/4/12
Frequency Rating50/60 Hz
Hoffman On DemandHoffman On Demand Product
ManufacturernVent
MaterialSheet Metal
Mounting TypeSide
Package Height18.8 in
Package Length11 in
Package TypePIECE
Package Volume2090.88 cu-in
Package Weight28.2 lb
Package Width10 in
Power Rating235 W
SeriesMCL
Temperature Rating-40 to 131 deg F
Type1-Phase Compact Outdoor
Type / StyleOutdoor Air Conditioners T15, T20 and T29 Series 800-4,000 BTU/Hr.
Voltage100/115
Voltage Rating100/115 V AC
WattageMax: 8
Documents
Applications
Industrial Automation, Telecommunications Equipment, Package Handling Equipment, Security and Defense System Applications
Included
Mounting Hardware, Gasket, User Manual, Thermostat, Malfunction Switch, Compressor Heater, Head Pressure Control, Enclosure Heater and Corrosion Resistant Components
Features
- Compact footprint to minimize real estate and maximize capacity
- Outdoor model operating temperature range from -40 F/-40 C to 131 F/55 C
- Painted galvanized or stainless steel sheet-metal cover for rugged factory and outdoor environments
- Dual condenser-side air movers for performance redundancy
- Cleanable, reusable aluminum mesh filter protects coils for maximum cooling performance
- Exterior and fully recessed mounting options on many models
- Easy-mount flanges for simple installation
Specifications
Specifications: Maintain UL/cUL Type 12, 3R or 4 rating when properly installed on a UL/cUL Type 12, 3R or 4 rated enclosure., UL/cUL Listed, File No. SA6453, CE
- Galvanized steel
Specifications: Maintain UL/cUL Type 12, 3R or 4 rating when properly installed on a UL/cUL Type 12, 3R or 4 rated enclosure., UL/cUL Listed, File No. SA6453, CE
