nVent HOFFMAN Q1PBPCDM

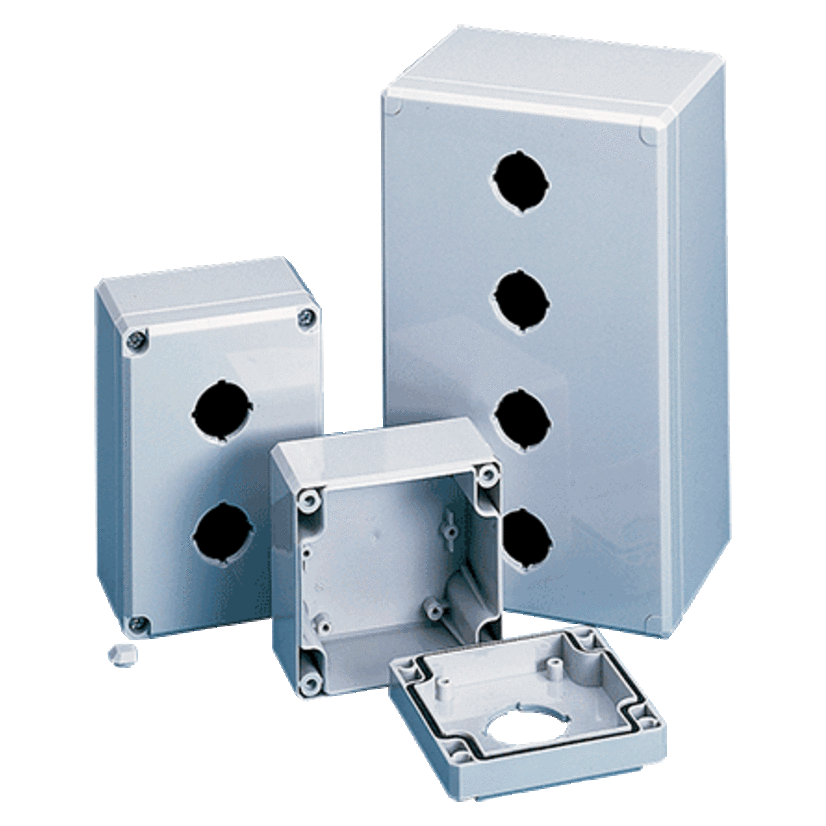

nVent HOFFMAN QLINE Q1PBPCDM Q41 D Pushbutton Enclosure, 3.23 in L x 3.15 in W x 3.11 in D, 1 Outlets, NEMA 4X/IP67 NEMA Rating, Polycarbonate
nVent HOFFMAN Q1PBPCDM
nVent HOFFMAN QLINE Q1PBPCDM Q41 D Pushbutton Enclosure, 3.23 in L x 3.15 in W x 3.11 in D, 1 Outlets, NEMA 4X/IP67 NEMA Rating, PolycarbonateOut of Stockmore info
|
BrandnVent HOFFMAN
MFG #Q1PBPCDM
Werner Part #37955
UPC783510150990
Out of Stockmore info
|
BrandnVent HOFFMAN
MFG #Q1PBPCDM
Werner Part #37955
UPC783510150990
Product Description
nVent HOFFMAN QLINE D Pushbutton Enclosure, Series: Q41, 3.23 in Length, 3.15 in Width, 3.11 in Depth, NEMA 4X/IP67, Screw Cover, 2.17 in W x 2.68 in H Panel, 1 Outlets, Wall Mount, Polycarbonate, Light Gray
Attributes
Documents
Applications
Warranty
Features
Specifications
Attributes
ColorLight Gray
Country of OriginEE
Cover TypeScrew
Hoffman On DemandHoffman On Demand Product
Hole Size30.5 mm
ManufacturernVent
MaterialPolycarbonate
Mounting TypeWall
NEMA RatingNEMA 4X/IP67
Number of Outlets1
Package Height3.4 IN
Package Length3 in
Package TypePIECE
Package Volume34.56 cu-in
Package Weight0.3 lb
Package Width3 in
Panel Size2.17 in W x 2.68 in H
SeriesQ41
Type / StyleQLINE? D Pushbutton, Type 4X
WattageMax: 25
Documents
Applications
For insulating and housing 30.5 mm or 22.5 mm pushbuttons in hostile environments
Warranty
1 Year
Features
- High-impact polycarbonate material is used for both body and cover
- Polycarbonate material is easily punched, drilled, filed or sawed
- Straight side walls permit ganging of multiple enclosures
- Cross-point captivated cover screws are stainless steel
- Mounting holes molded directly adjacent to cover screws
- Cover screws protected by removable caps that are both aesthetic and provide tamper resistance
- Molded internal pads for mounting optional panels, rails or other components
- Seamless foam-in-place gasket assures watertight and dust-tight seal
- Optional panels are unpainted plated steel
Specifications
Number of Outlets: 1
