HPS SG3A0045KB

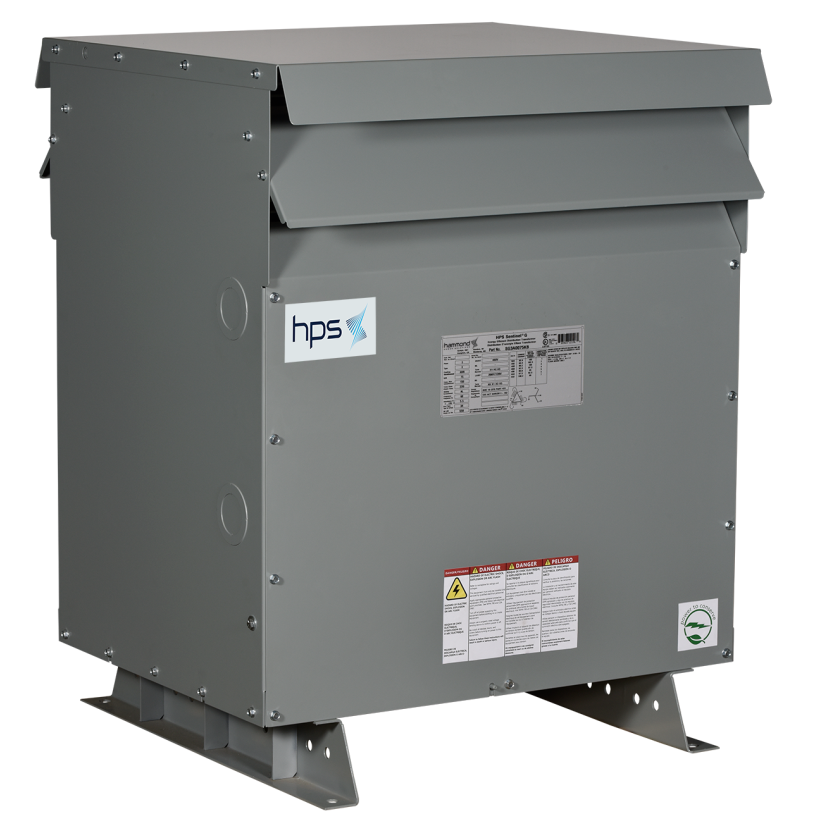

HPS SG3A0045KB Sentinel G Energy Efficient General Purpose Distribution Transformer, 480 Delta V AC Primary, 208Y/120 VAC Secondary, 45 kVA Power Rating, 60 Hz, 3 Phase
HPS SG3A0045KB
HPS SG3A0045KB Sentinel G Energy Efficient General Purpose Distribution Transformer, 480 Delta V AC Primary, 208Y/120 VAC Secondary, 45 kVA Power Rating, 60 Hz, 3 PhaseIn Stock: 1more info
|
In Stock: 1more info
|
Product Description
HPS, SG3A0045KB, Distribution Transformer, Energy Efficient General Purpose, Series: Sentinel G, 480 Delta V AC Primary, 208Y/120 VAC Secondary, 45 kVA Power, 60 Hz Frequency, 3 ph, Lug/Pad Connection, Ceiling/Floor Mounting, DH2-N3R - Indoor/Outdoor Enclosure, 30 deg C, 98.4 % Efficiency, 23.8 in L x 25.8 in W x 28.8 in H Dimensions
Attributes
Documents
Features
Applications
Specifications
Warranty
Attributes
Connection TypeLug/Pad
Country of OriginCA|IN|MX|US
Depth23.8 inch
Dimensions23.8 in L x 25.8 in W x 28.8 in H
Efficiency98.4 %
Enclosure TypeDH2-N3R - Indoor/Outdoor
Frequency Rating60 Hz
Height28.8 in
Length23.8 in
ManufacturerHammond Power Solutions
Mounting TypeCeiling/Floor
Number of TapsST-20 compliant
Package TypeEACH
Phase3
Power Rating45 kVA
Primary Voltage480 Delta V AC
Secondary Voltage208Y/120 V AC
SeriesSentinel G
Temperature Rating30 deg C
TypeEnergy Efficient General Purpose
Type / StyleTransformer > Distribution > DOE 2016 Energy Efficient > General Purpose > Three Phase
Width25.8 in
Documents
Features
- HPSgeneral purpose distribution transformers are rated for 600 V and below
- HPS also offers a line of low voltageSmart Transformerswith integrated power monitoring for enhanced energy management and real-time performance insights
Applications
Supplying Appliance, Lighting, Heating, Motorized Machine and Power Loads from Electrical Distribution System Applications
Specifications
- Meets North American Efficiency Standards: U.S. - DOE 10 CFR Part 431 (DOE 2016); Canada - SOR/2018-201, (NRCan 2019) & ON Reg. 404/12
- 60 Hz frequency (some 50 Hz)
- Ratings from 15 to 333 kVA single phase and 15 to 1500 kVA three phase
- An extensive standard offer complimented by a wide variety of custom products available
- Copper and aluminum are available
- Standard 150 deg C temperature rise and 220 deg C insulation class
- 10kV BIL on all HPS Sentinel G product
- UL Listed, CSA Certified
- Custom sizes, ratings, and styles available upon request
- Optional infrared windows available
Warranty
10 year warranty
