HPS P015KDKF

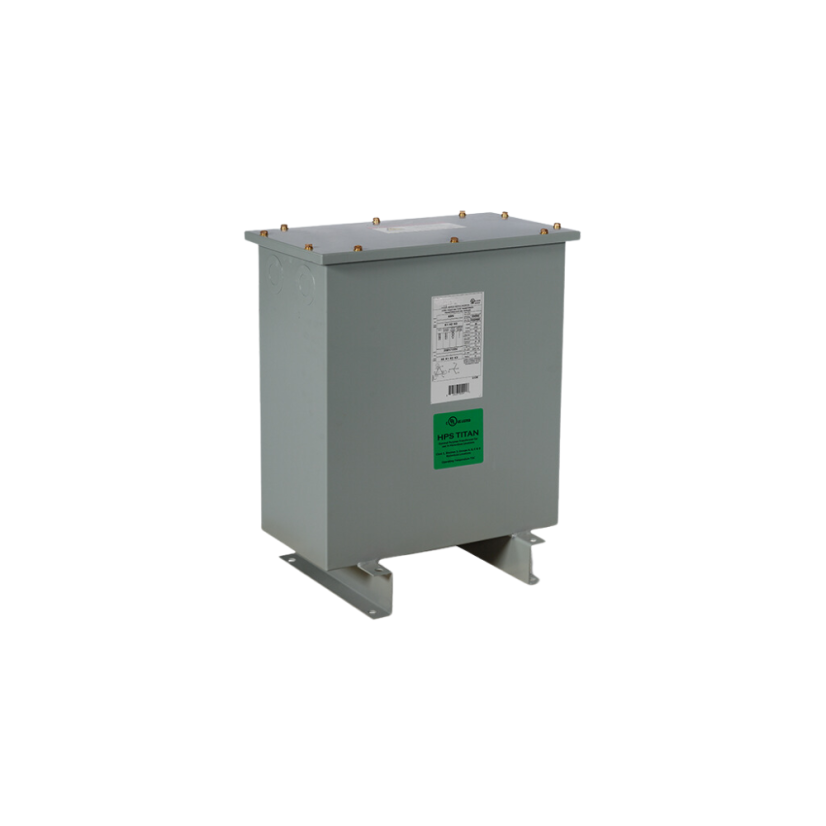

HPS P015KDKF Encapsulated Potted Distribution Transformer
HPS P015KDKF
HPS P015KDKF Encapsulated Potted Distribution TransformerInventory Not Available
Inventory Not Available
Product Description
HPS Titan® Distribution Transformer, Encapsulated Potted, 480 Delta VAC Primary, 240 Delta VAC Secondary, 15 kVA Power, 60 Hz Frequency, 3 Phase, Copper Tab/Wire Lead Connection, Wall Mounting, 180 deg C Insulation, NEMA 3R Enclosure, 30 to 40 deg C, 9.69 in L x 18.5 in W x 16.63 in H Dimensions
Attributes
Documents
Features
Attributes
ColorGray
Connection TypeCopper Tab/Wire Lead
Dimensions9.69 in L x 18.5 in W x 16.63 in H
Enclosure TypeNEMA 3R
Frequency Rating60 Hz
Height16.63 in
Insulation Type180 deg C
Length9.69 in
ManufacturerHammond Power Solutions
MaterialAluminum
Mounting TypeWall
Phase3
Power Rating15 kVA
Primary Voltage480 Delta VAC
Secondary Voltage240 Delta VAC
Temperature Rating30 to 40 deg C
TypeEncapsulated Potted
Type / StyleEncapsulated Potted
Width18.5 in
Documents
Features
Electrostatic shield standard on all 3-phase units and single phase units over 0.5 kVAAll units are encapsulated with electrical grade silica and resin compounds which completely enclose the core and coil to seal out moisture, airborne contaminants and eliminates corrosion and deteriorationRear and side entry into an easily accessible and roomy wiring compartmentInstallation made quick and easy via keyhole mounting slotsRugged potted construction for use in harsh environments comes standard with ABS(American Bureau of Ships) and Class 1, Div. II, groups A, B, C and D ratings and a North American Temperature Classification of T3C
