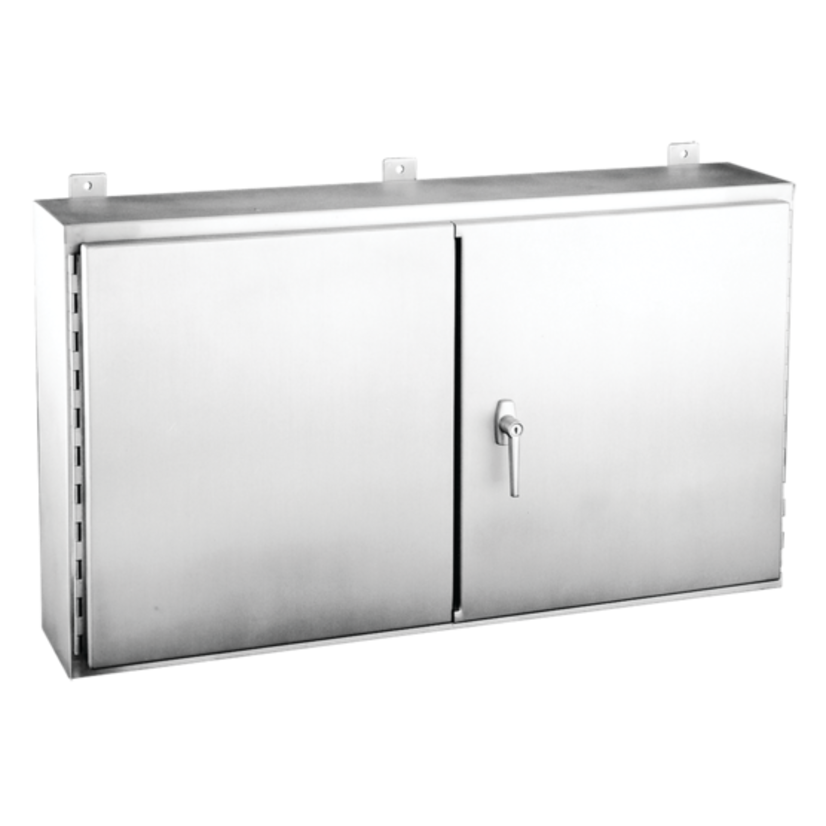

nVent HOFFMAN A244208WFSSLP
nVent HOFFMAN A244208WFSSLP A12SW 2-Door Enclosure, 24 in L x 42 in W x 8 in D, NEMA 12/IP55 NEMA Rating, 304 Stainless Steel
nVent HOFFMAN A244208WFSSLP
nVent HOFFMAN A244208WFSSLP A12SW 2-Door Enclosure, 24 in L x 42 in W x 8 in D, NEMA 12/IP55 NEMA Rating, 304 Stainless SteelNon-stock product. Available to order - lead time may vary.
Non-stock product. Available to order - lead time may vary.
Product Description
nVent HOFFMAN Enclosure, 2-Door, Series: A12SW, 24 in Length, 42 in Width, 8 in Depth, NEMA 12/IP55, Continuous Hinged Cover, 39 x 21 in Panel, Lock: 3-Point Latch/Keyed Handle, Wall Mount, 304 Stainless Steel, Brushed
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
BABA CompliantYes
ColorUnpainted
Conductive PanelA42P24G
Country of OriginUS
Cover TypeContinuous Hinged
FinishBrushed
ManufacturernVent
Material304 Stainless Steel
Mounting TypeWall
NEMA RatingNEMA 12/IP55
Package Height10 in
Package Length44 in
Package TypePIECE
Package Volume12752.64 cu-in
Package Weight70 lb
Package Width29 in
Panel Size39 x 21 in
SeriesA12SW
Size39 x 21 in
Thickness14 ga
Type2-Door
Type / StyleType 12
Documents
Applications
Indoor Applications
Features
- 3 Point latching mechanism for simple, reliable one-motion closure
- Seams continuously welded and ground smooth
- Rolled lip around all sides of enclosure body opening
- Gasketed overlapping doors eliminate need for centerpost
- External mounting brackets
- Easily removable doors by pulling heavy-gauge continuous hinge pin
- Data pocket is high-impact thermoplastic
- Collar studs provided for mounting optional panels
- Bonding provision on doors, grounding studs on body
Specifications
3-Point Latch/Keyed Handle
Warranty
1 Year
