Generac RTG16EZA1

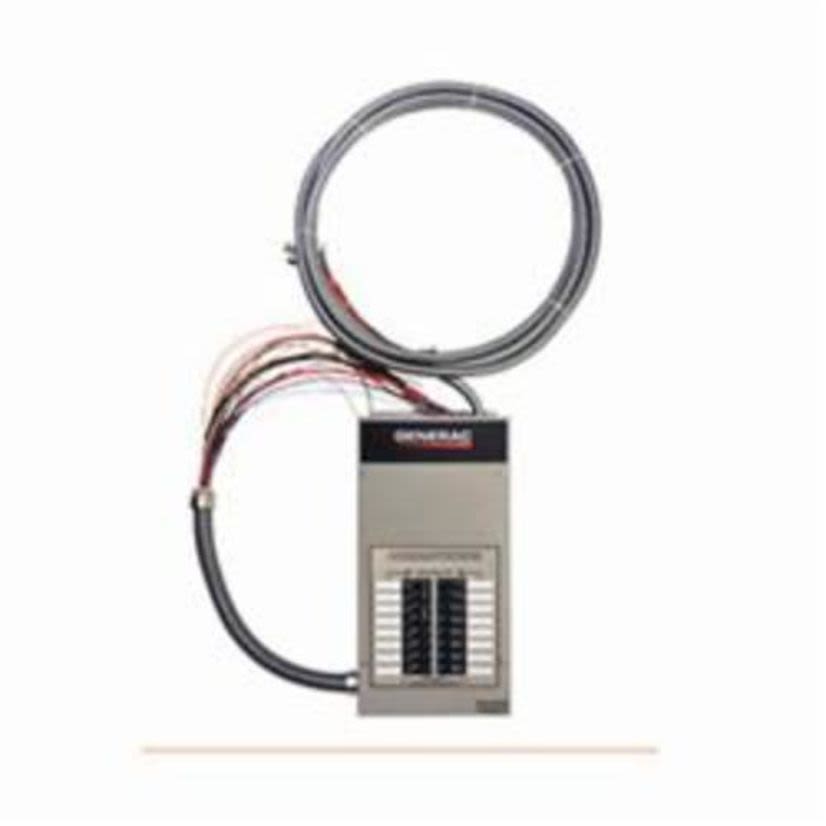

Generac RTG16EZA1 Pre-Wired Automatic Transfer Switch With Built-In Load Center, 120/240 V AC, 100 A, 1 Phase, NEMA 1
Generac RTG16EZA1
Generac RTG16EZA1 Pre-Wired Automatic Transfer Switch With Built-In Load Center, 120/240 V AC, 100 A, 1 Phase, NEMA 1Non-stock product. Available to order - lead time may vary.
BrandGenerac
MFG #RTG16EZA1
Werner Part #4005591
UPC696471614374
Non-stock product. Available to order - lead time may vary.
BrandGenerac
MFG #RTG16EZA1
Werner Part #4005591
UPC696471614374
Product Description
Generac Transfer Switch, Pre-Wired Automatic, 120/240 V AC, 100 A, 1, 12.6 in Width, 6.3 in D, 26.4 in Height, NEMA 1, Steel
Attributes
Documents
Features
Specifications
Attributes
Country of OriginUS
Depth6.3 in
Height26.4 in
Length26.4 in
ManufacturerGenerac Power Systems
MaterialSteel
TypePre-Wired Automatic
Voltage Rating120/240 V AC
Width12.6 in
Documents
Features
- All pre-wired switche are housed in a steel NEMA 1 enclosure, with electrostatically applied and baked powder paint
- The heavy-duty generac contactor is a UL recognized device, designed for year of service
- The controller at the generator handle all the timing, sensing and exercising function
- Electrically operated, mechanically-held contact for fast, positive connections
- Rated for all classes of load, 100 percent equipment rated, both inductive and resistive
- 2 pole, 240 VAC contactor
- 30 millisecond transfer time
- Dual coil (100A) and single coil (50A) design
- Main contact are silver plated or silver alloy to resist welding and sticking
- NEMA 1 (indoor rated) enclosure is standard
- The transfer switch contactor is rated at 240 VAC and is available in a single phase configuration only
- 16 circuit switch
- 60 Hz rated AC frequency
- 10000 A Withstand
- 1/0 - #14 lug range
- Open transition load transition type
- Less than 60 percent utility voltage drop-out
- 5 second engine warm-up delay
- 60 percent for 5 second standby voltage sensor
- Greater than 80 percent utility voltage pickup
Specifications
cULus Listed|ISO 9001:2008
