General Electric CL06A300MJ

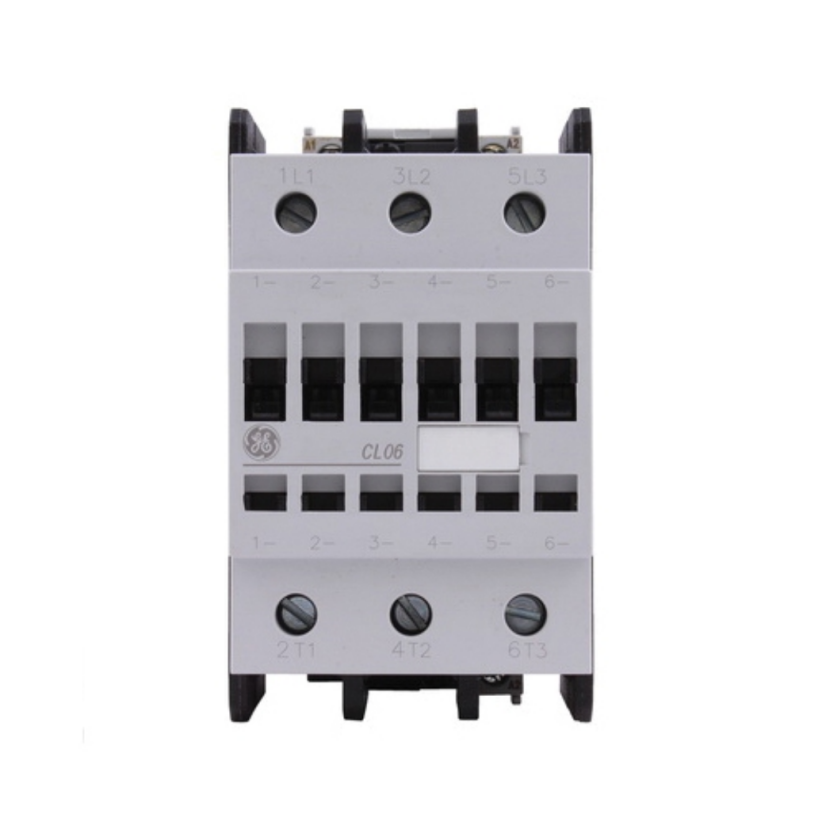

GE CL06A300MJ CL Series Non-Reversing IEC Contactor, 110/120 V AC V Coil, 50 A, 1NO-1NC Contact, 3 Poles
General Electric CL06A300MJ
GE CL06A300MJ CL Series Non-Reversing IEC Contactor, 110/120 V AC V Coil, 50 A, 1NO-1NC Contact, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandGeneral Electric
MFG #CL06A300MJ
Werner Part #4018465
Non-stock product. Available to order - lead time may vary.
BrandGeneral Electric
MFG #CL06A300MJ
Werner Part #4018465
Product Description
GE IEC Contactor, Non-Reversing, Series: CL Series, 110/120 V AC Coil, 50 A Maximum Load Current, 30 hp at 460 VAC Coil, 3 Pole, 50/60 Hz Frequency, 25 kW Wattage, Auxiliary Contact, 1NO-1NC Contact Configuration, Screw Terminal, Open Enclosure, DIN Rail Mounting
Attributes
Documents
Applications
Features
Attributes
Coil Power Rating30 hp at 460 VAC
Coil Voltage110/120 V AC
Contact Configuration1NO-1NC
Contact FormAuxiliary
Enclosure TypeOpen
Frequency Rating50/60 Hz
Full Load CurrentMax: 50 A
ManufacturerABB
Maximum Load Current50 A
Mounting TypeDIN Rail
Number of Poles3
Package Height5.71 in
Package Length5.35 IN
Package Volume112.32 cu-in
Package Weight2.71 lb
Package Width3.66 IN
SeriesCL Series
Terminal TypeScrew
Type / StyleNon-Reversing
Wattage25 kW
Documents
Applications
Electrical Distribution and Control Applications
Features
- Terminal numbering in accordance with EN 50005 and EN 50012
- Fixing by clipping onto 35 mm DIN rail EN 50022-35 or by screws
- Ring terminal version
- Mounting possibilities of front/side instantaneous auxiliary contact blocks, timed auxiliary contact blocks, mechanical latch, transient suppressor block and interface modules
- 35 mm DIN rail mounting
