Federal Signal 50GCB-120

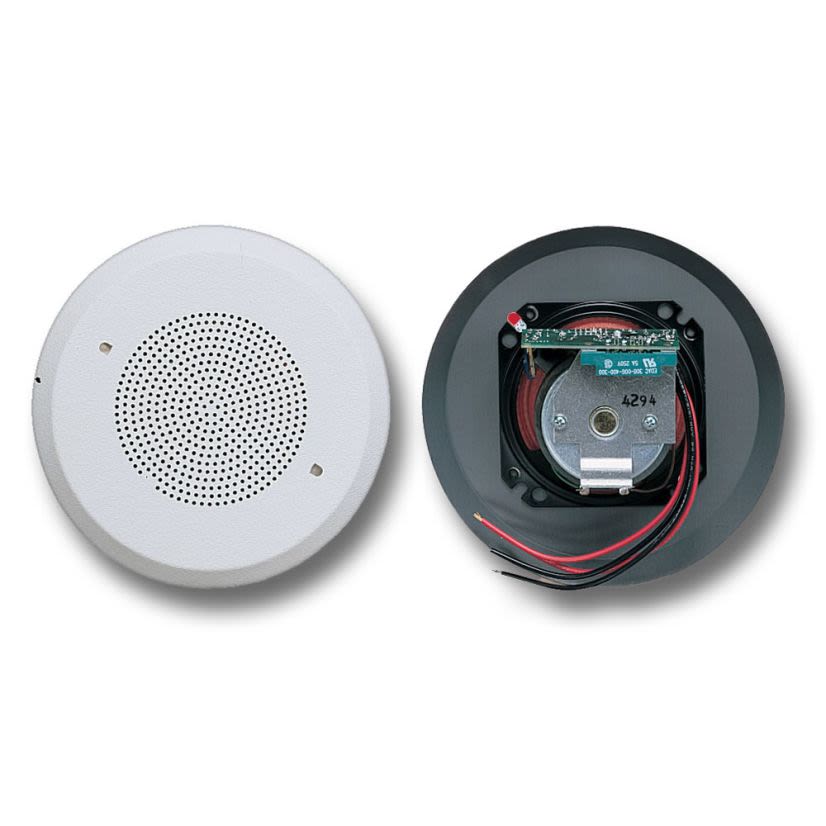

Federal Signal SelecTone 50GCB-120 50GCB Audible Signaling Device, 120 V AC, 0.04 A, 64 to 88 dB Sound, Versatile Mount, White, ARRA Compliant|BAA Compliant|cUL Listed|UL Listed|CSFM Approved
Federal Signal 50GCB-120
Federal Signal SelecTone 50GCB-120 50GCB Audible Signaling Device, 120 V AC, 0.04 A, 64 to 88 dB Sound, Versatile Mount, White, ARRA Compliant|BAA Compliant|cUL Listed|UL Listed|CSFM ApprovedNon-stock product. Available to order - lead time may vary.
BrandFederal Signal
MFG #50GCB-120
Werner Part #967845
UPC782979394716
Non-stock product. Available to order - lead time may vary.
BrandFederal Signal
MFG #50GCB-120
Werner Part #967845
UPC782979394716
Product Description
Federal Signal SelecTone Audible Signaling Device, Series: 50GCB, 120 V AC, 0.04 A, 50/60 Hz, 64 to 88 dB, Specifications Met: ARRA Compliant|BAA Compliant|cUL Listed|UL Listed|CSFM Approved, Versatile Mount, -31 to 161 deg F Operating, White, 7.23 in W x 2.53 in D x 7.23 in H
Attributes
Documents
Applications
Features
Specifications
Warranty
Attributes
ColorWhite
Country of OriginUS
Decibel RatingSound Level: 64 to 88 dB
Dimensions7.23 in W x 2.53 in D x 7.23 in H
Frequency Rating50/60 Hz
ManufacturerFederal Signal
Mounting TypeCeiling
Operating Temperature-31 to 161 deg F
Package Height4.63 in
Package Length8 in
Package TypeBOX
Package Weight2.3 lb
Package Width8 in
Series50GCB
Sound Level64 to 88 dB
Specifications MetARRA Compliant|BAA Compliant|cUL Listed|UL Listed|CSFM Approved
Type / StyleAudible Signaling Device
Voltage Rating120 V AC
Documents
Applications
Offices, Hallways, Reception Plant Areas and In-Plant Applications, Indoor Applications
Features
- Produces one of two tones at three SPL (sound pressure levels) federal signal horns
- 101 to 114 dB at 10 ft/111 to 124 dB at 1 m for 52 horn, 98 to 116 dB at 10 ft/108 to 126 dB at 1 m for 55/56 horn sound level
- 0.15 to 0.78 A at 120 VAC, 0.03 to 0.4 A at 240 VAC for 52 horn amperage rating
- 0.1 to 0.76 A at 120 VAC, 0.06 to 0.41 A at 240 VAC for 55/56 horn amperage rating
Specifications
ARRA Compliant|BAA Compliant|cUL Listed|UL Listed|CSFM Approved
Warranty
5 Years
