Cutler-Hammer Series XTPR063DC1

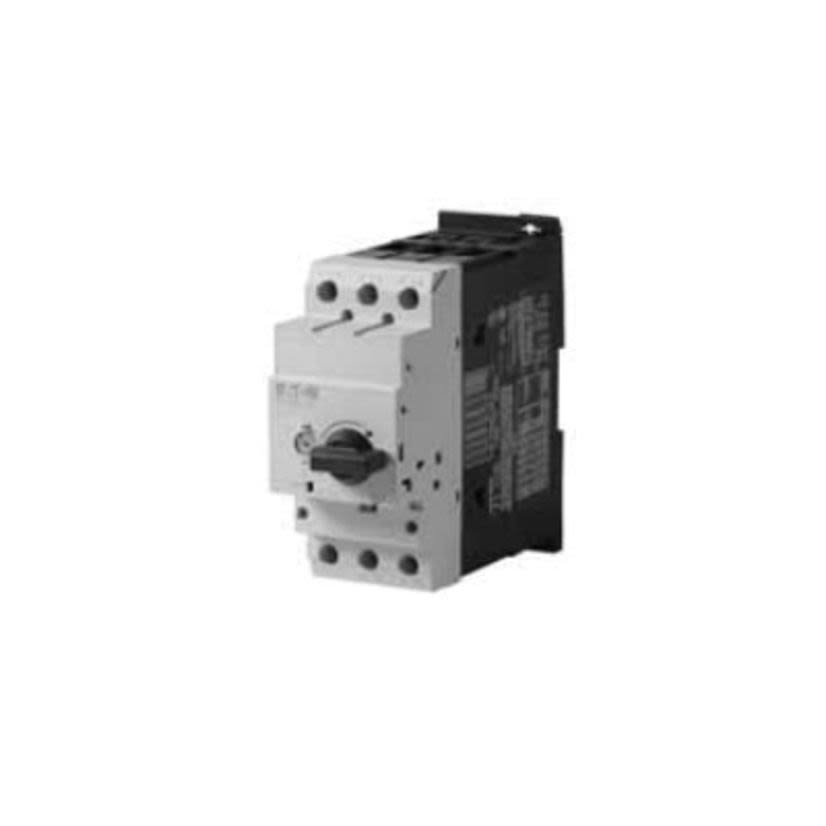

EATON XTPR063DC1 XT Series D Frame Motor Protector, Rotary/On/Off Action, 1 Poles, IP20 Enclosure
EATON XTPR063DC1 XT Series D Frame Motor Protector, Rotary/On/Off Action, 1 Poles, IP20 Enclosure

Cutler-Hammer Series XTPR063DC1

EATON XTPR063DC1 XT Series D Frame Motor Protector, Rotary/On/Off Action, 1 Poles, IP20 Enclosure
Non-stock product. Available to order - lead time may vary.

BrandCutler-Hammer Series

MFG #XTPR063DC1

Werner Part #3969503

Non-stock product. Available to order - lead time may vary.

BrandCutler-Hammer Series

MFG #XTPR063DC1

Werner Part #3969503

Product Description

EATON Motor Protector, D Frame, Series: XT Series, 690 V AC, 63 A, 40 to 60 Hz Frequency, 55 kW Wattage, 1 Pole, Setting: 40 A, Manual Reset, 3 ph, Screw Connection, Rotary/On/Off Action, Bi-Metal Overload Relay, 55 to 63 A Full Load, Rotary Control, IP20 Enclosure, -25 to 55 deg C Operating, 45 mm L x 94 mm W x 93 mm H Dimensions
Attributes
ActionRotary/ON/OFF
Connection TypeScrew
Country of OriginDE
Dimensions45 mm L x 94 mm W x 93 mm H
Enclosure TypeIP20
Frequency Rating40 to 60 Hz
Full Load Current55 to 63 A
ManufacturerEaton
Number of Poles1
Operating Temperature-25 to 55 deg C
Phase3
SeriesXT Series
Type / StyleD Frame
Wattage55 kW
