Cutler-Hammer Series XTPR020BC1

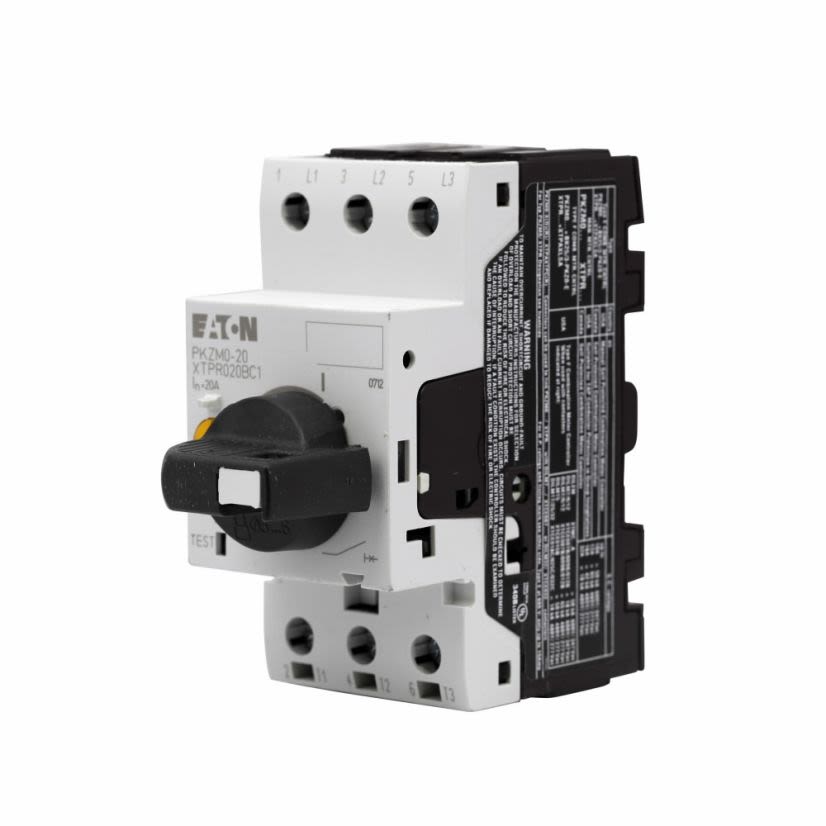

EATON XTPR020BC1 B-Frame Motor Protector, Rotary/On/Off Action, 3 Poles, IP20 Enclosure
EATON XTPR020BC1 B-Frame Motor Protector, Rotary/On/Off Action, 3 Poles, IP20 Enclosure

Cutler-Hammer Series XTPR020BC1

EATON XTPR020BC1 B-Frame Motor Protector, Rotary/On/Off Action, 3 Poles, IP20 Enclosure
Non-stock product. Available to order - lead time may vary.

BrandCutler-Hammer Series

MFG #XTPR020BC1

Werner Part #3964836

Non-stock product. Available to order - lead time may vary.

BrandCutler-Hammer Series

MFG #XTPR020BC1

Werner Part #3964836

Product Description

EATON Motor Protector, B-Frame, Series: XT Series, 690 V AC, 20 A, 40 to 60 Hz Frequency, 15 kW Wattage, 3 Pole, Setting: 32 A, Manual Reset, 3 ph, Screw Connection, Rotary/On/Off Action, Bi-Metal Overload Relay, 16 to 20 A Full Load, 1NO-1NC Auxiliary, Rotary Control, IP20 Enclosure, -25 to 55 deg C Operating, 45 mm L x 94 mm W x 93 mm H Dimensions
Attributes
ActionRotary/ON/OFF
Connection TypeScrew
Country of OriginDE
Dimensions45 mm L x 94 mm W x 93 mm H
Enclosure TypeIP20
Frequency Rating40 to 60 Hz
Full Load Current16 to 20 A
GTIN04015082653439
ManufacturerEaton
Number of Poles3
Operating Temperature-25 to 55 deg C
Package Height2 in
Package Length3 in
Package TypeEACH
Package Weight0.7 lb
Package Width3 in
Phase3
SeriesXT Series
Type / StyleB-Frame
Wattage15 kW
