Cutler-Hammer Series XTPR016DC1

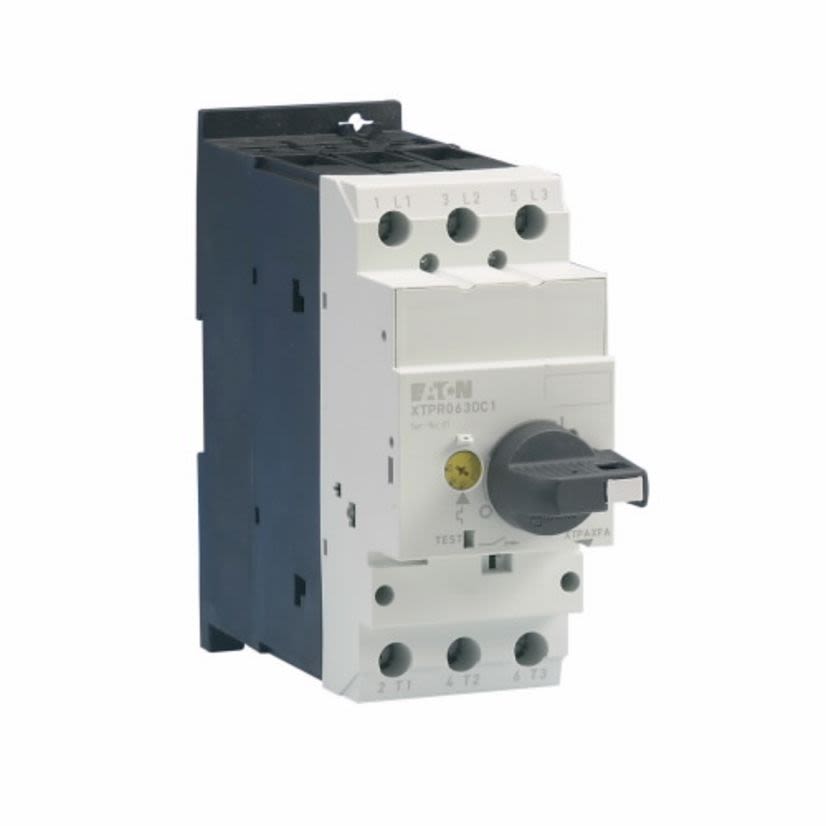

EATON XTPR016DC1 XT Series D-Frame Motor Protector, Rotary/On/Off Action, 3 Poles, IP20 Enclosure
Cutler-Hammer Series XTPR016DC1
EATON XTPR016DC1 XT Series D-Frame Motor Protector, Rotary/On/Off Action, 3 Poles, IP20 EnclosureNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #XTPR016DC1
Werner Part #3963477
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #XTPR016DC1
Werner Part #3963477
Product Description
EATON Motor Protector, D-Frame, Series: XT Series, 690 V AC, 16 A, 40 to 60 Hz Frequency, 12.5 kW Wattage, 3 Pole, Setting: 63 A, Manual Reset, 3 ph, Screw Connection, Rotary/On/Off Action, Bi-Metal Overload Relay, 10 to 16 A Full Load, 1NO 1NC Auxiliary, Rotary Control, IP20 Enclosure, -25 to 55 deg C Operating, 2.17 in W x 6.73 in D x 5.57 in H Dimensions
Attributes
Documents
Applications
Included
Warranty
Features
Attributes
ActionRotary/ON/OFF
Connection TypeScrew
Country of OriginDE
Dimensions2.17 in W x 6.73 in D x 5.57 in H
Enclosure TypeIP20
Frequency Rating40 to 60 Hz
Full Load Current10 to 16 A
ManufacturerEaton
Number of Poles3
Operating Temperature-25 to 55 deg C
Phase3
SeriesXT Series
Type / StyleD-Frame
Wattage12.5 kW
Documents
Applications
For motor protective circuit breaker, group motor installations and individual branch motor applications
Included
Neutral Base
Warranty
1 year
Features
- On/Off rotary handle with lockout provision
- Visible trip indication
- Phase loss sensitivity
- Identification markers standard on starter faceplate
- Built-in heater and magnetic trip elements to protect the motor
- Overload protection, trip class 10 A
- Class 10 trip
- 45 mm frame
