Cutler-Hammer Series XTMF9A00TD

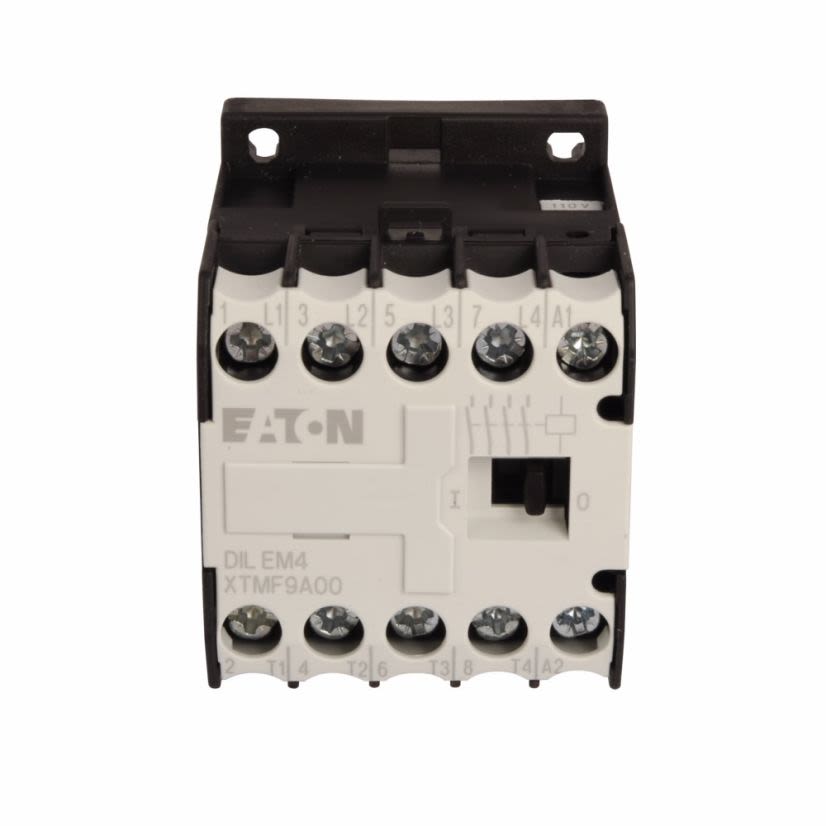

EATON XTMF9A00TD Full Voltage Non-Reversing IEC Miniature Contactor, 24 V DC V Coil, 8.8 A, 4 Poles
Cutler-Hammer Series XTMF9A00TD
EATON XTMF9A00TD Full Voltage Non-Reversing IEC Miniature Contactor, 24 V DC V Coil, 8.8 A, 4 PolesNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #XTMF9A00TD
Werner Part #3978163
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #XTMF9A00TD
Werner Part #3978163
Product Description
EATON IEC Miniature Contactor, Full Voltage Non-Reversing, Series: XT Series, 24 V DC Coil, 8.8 A Maximum Load Current, 1/2 hp, 1 hp, 1-1/2 hp, 2 hp, 3 hp, 5 hp Coil, 4 Pole, 2.2/4 kW Wattage, 45 mm Size, Screw Terminal, IP20 Enclosure, DIN Rail/Panel Mounting, 2 in L x 2 in W x 1-1/2 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Coil Power Rating1/2 hp, 1 hp, 1-1/2 hp, 2 hp, 3 hp, 5 hp
Coil Voltage24 V DC
Country of OriginDE
Dimensions2 in L x 2 in W x 1-1/2 in H
Enclosure TypeIP20
Full Load CurrentMax: 8.8 A
ManufacturerEaton
Maximum Load Current8.8 A
Mounting TypeDIN Rail/Panel
Number of Poles4
Operating Temperature-13 to 122 deg F
Package TypeEACH
SeriesXT Series
Size45 mm
Terminal TypeScrew
Type / StyleA-Frame Full Voltage Non-Reversing
Wattage2.2/4 kW
Applications
Electrical Assemblies, Panels and EOEMs, Commercial, Institutional Buildings and Structures
Warranty
1 year
Features
- AC and DC controlled contactors in the same compact frame
- Low power consumption AC and DC coils
- Built-in NO/NC auxiliary contacts to 32 A
- Plug-in accessories for reduced installation time
- 1/2 hp at 115 VAC, 1 hp at 200 VAC, 1-1/2 hp at 230 VAC at 1 ph, 2 hp at 200 VAC, 3 hp at 230 VAC, 5 hp at 460 VAC, 5 hp at 575 VAC at 3 ph coil horsepower rating
- 2.2 kW at 220/230 VAC, 4 kW at 380/400/550/660/690 VAC wattage rating
