Cutler-Hammer Series XTCE015B01A

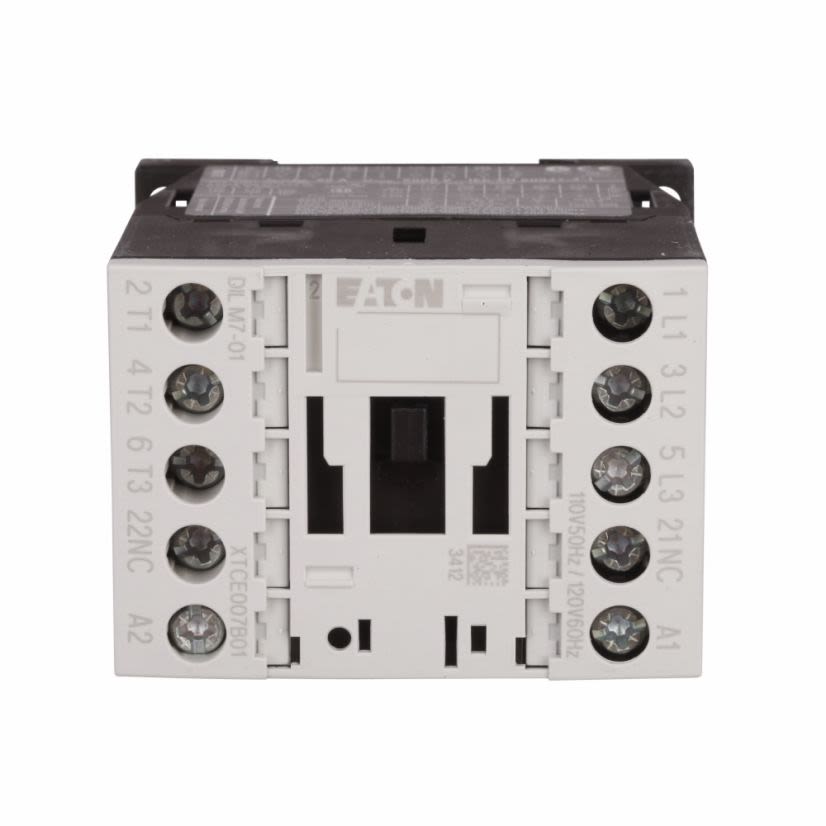

EATON XTCE015B01A Full Voltage Non-Reversing IEC Contactor, 110/120 V AC V Coil, 15 A, 1NC Contact, 3 Poles
Cutler-Hammer Series XTCE015B01A
EATON XTCE015B01A Full Voltage Non-Reversing IEC Contactor, 110/120 V AC V Coil, 15 A, 1NC Contact, 3 PolesNon-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #XTCE015B01A
Werner Part #4005685
Non-stock product. Available to order - lead time may vary.
BrandCutler-Hammer Series
MFG #XTCE015B01A
Werner Part #4005685
Product Description
EATON IEC Contactor, Full Voltage Non-Reversing, Series: XT Series, 110/120 V AC Coil, 15 A Maximum Load Current, 1 hp at 115 VAC 1 ph, 2 hp at 200 VAC 1 ph, 3 hp at 230 VAC 1 ph, 5 hp at 200/230 VAC 3 ph, 10 hp at 460/575 VAC 3 ph Coil, 3 Pole, 50/60 Hz Frequency, 1NC Contact Configuration, 1 Auxiliary Contacts, 45 mm Size, Screw Terminal, IP20 Enclosure, -13 to 122 deg F Operating, DIN Rail/Panel Mounting, 1.77 in W x 2.95 in D x 2.68 in H Dimensions
Attributes
Documents
Applications
Warranty
Features
Attributes
Coil Power Rating1 hp at 115 VAC 1 ph, 2 hp at 200 VAC 1 ph, 3 hp at 230 VAC 1 ph, 5 hp at 200/230 VAC 3 ph, 10 hp at 460/575 VAC 3 ph
Coil Voltage110/120 V AC
Contact Configuration1NC
Country of OriginRO
Dimensions1.77 in W x 2.95 in D x 2.68 in H
Enclosure TypeIP20
Frequency Rating50/60 Hz
Full Load CurrentMax: 15 A
ManufacturerEaton
Maximum Load Current15 A
Mounting TypeDIN Rail/Panel
Number of Auxiliary Contacts1
Number of Poles3
Operating Temperature-13 to 122 deg F
SeriesXT Series
Size45 mm
Terminal TypeScrew
Type / StyleB-Frame Full Voltage Non-Reversing
Applications
Electrical Assemblies, Panels and EOEMs and Other Applications
Warranty
1 year
Features
- Electronic coil controller allows contactors to reduce power consumption and generate less heat, resulting in lower cooling requirements, the ability to mount more contactors/starters per cabinet and an extended life on pilot devices that carry control signals
- AC and DC devices with the same dimensions achieved with an electronically controlled coil system allow for space savings and reduced engineering design time
- Integrated suppressors in DC controlled contactors offers reductions in total logistics and inventory costs by limiting the number of products ordered and stocked
- Wiring is not required, therefore increasing installation and maintenance efficiency
- Expanded range of DC coil control voltages, allows reliable operation through fluctuations in control voltages
- Twin terminals with separate sockets in contactors up to 400 A offer installation and application flexibility when using different size wires
- The improved integrity of the connections reduces cabling faults
- 4 hp at 220/230 VAC, 7-1/2 hp at 380/400 VAC, 8 hp at 415 VAC, 7 hp at 660/690 VAC coil power rating
